Triron2210N - EPever 20A MPPT Solar Charge Controller

EPever 20A MPPT Solar Charge Controller Quick Info

Brand: EPever

Lithium Battery Activation: No Lithium Batteries Activation

Battery Voltage: 12V, 24V

Battery Type: Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM Batteries, User Mode

Charging Current: 20 Amps

Ground Type: Netagive Ground

Solar Panel Max Input Power: 500W-1000W

Solar Panel Max Input Voltage:100V

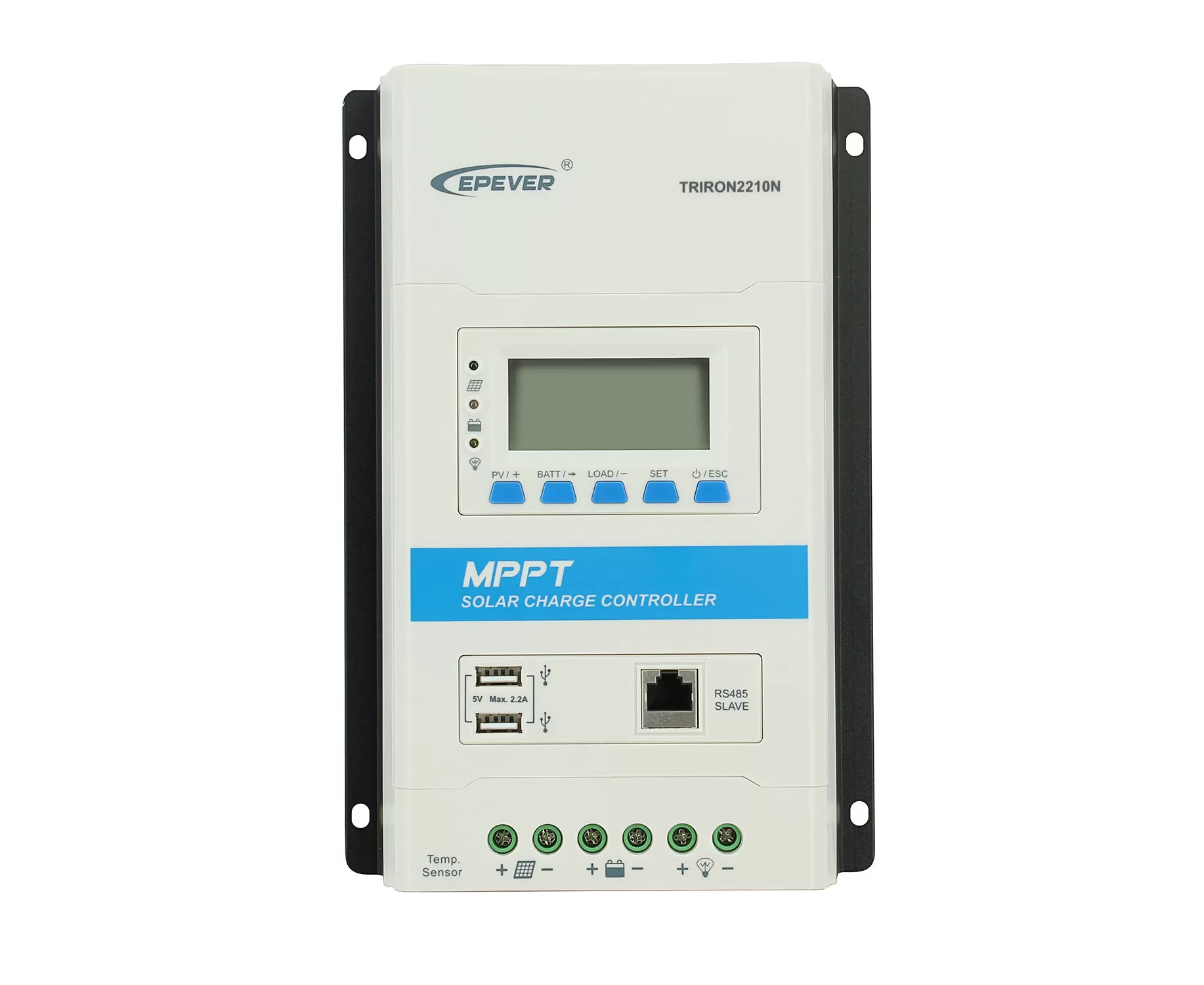

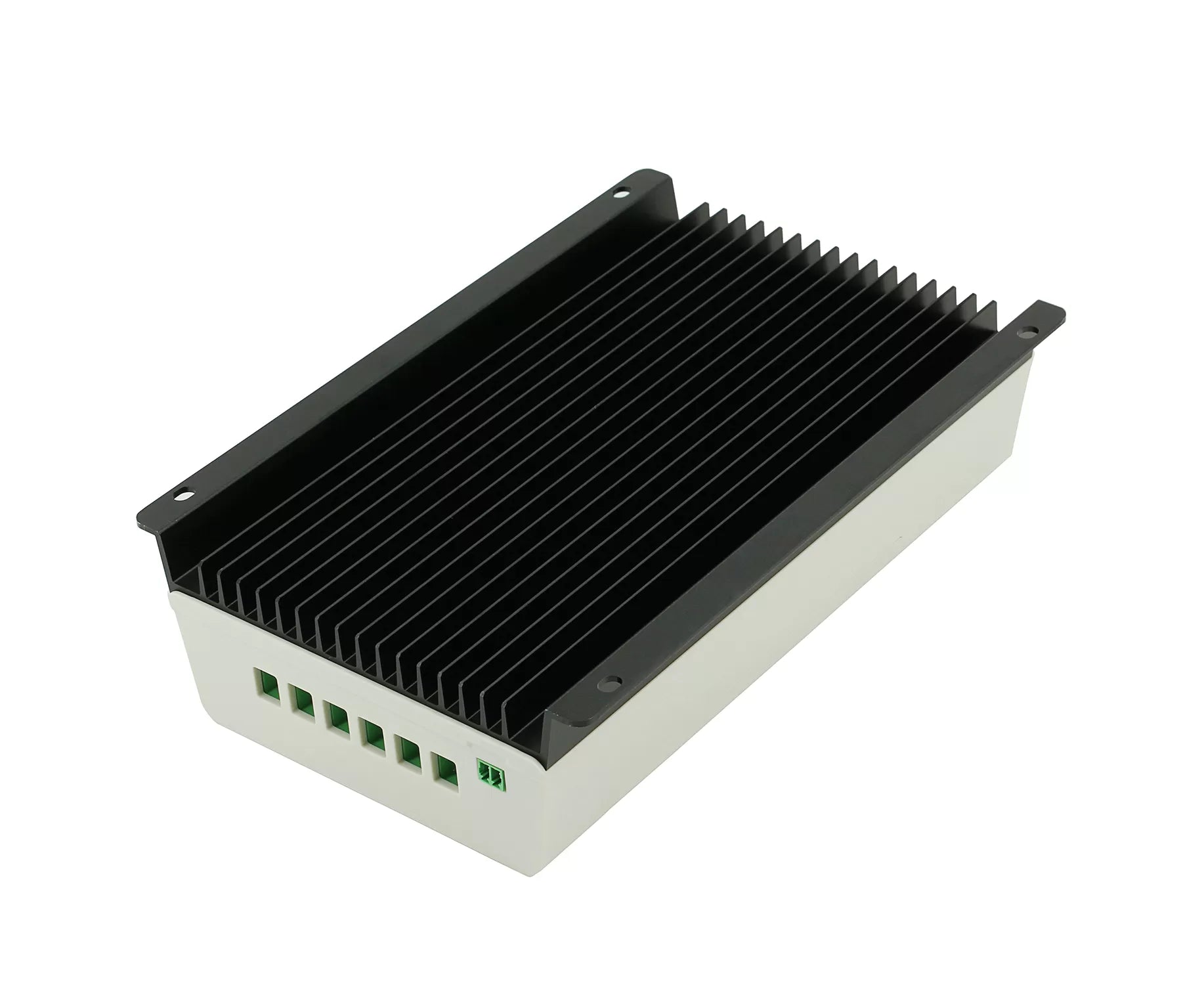

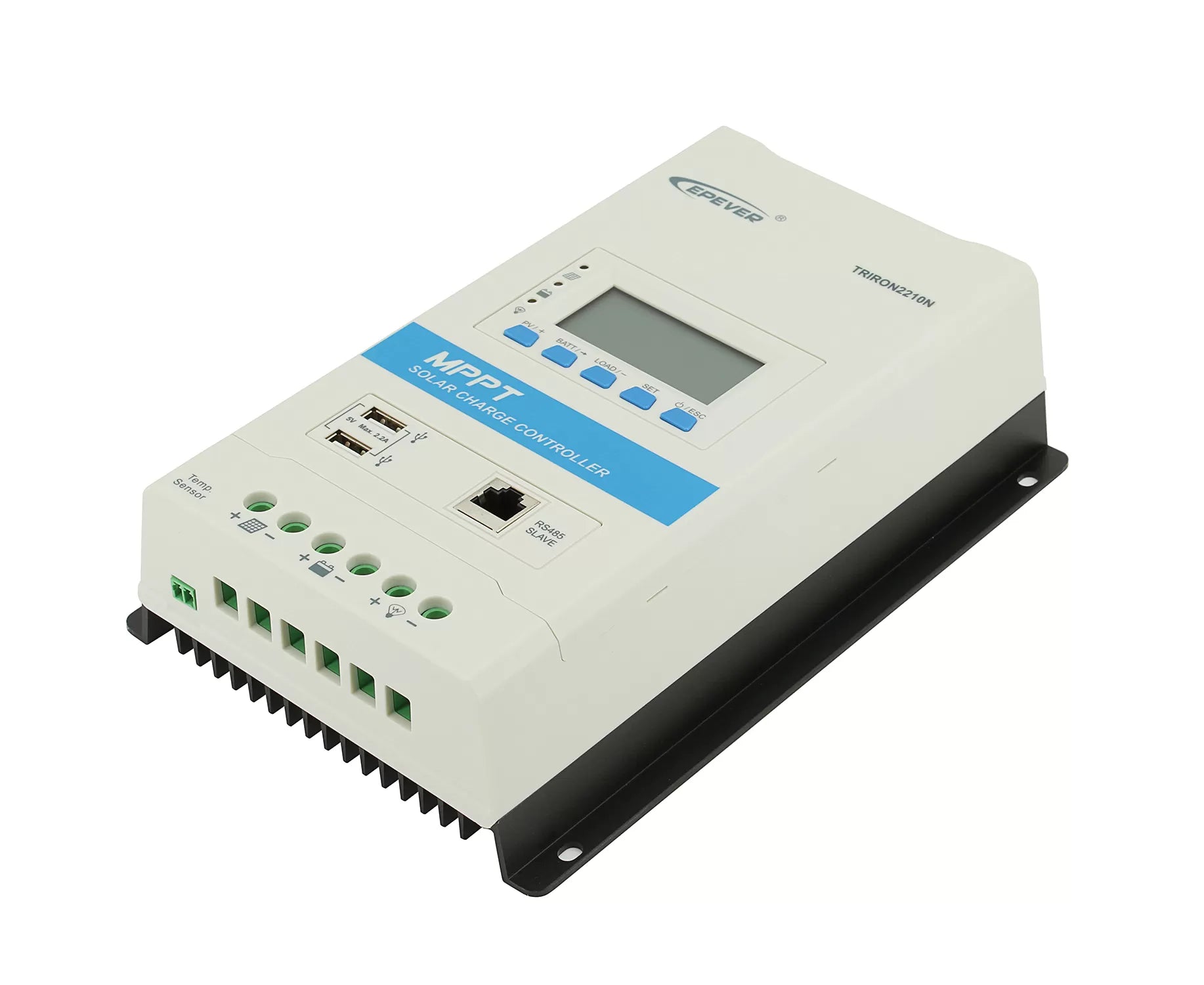

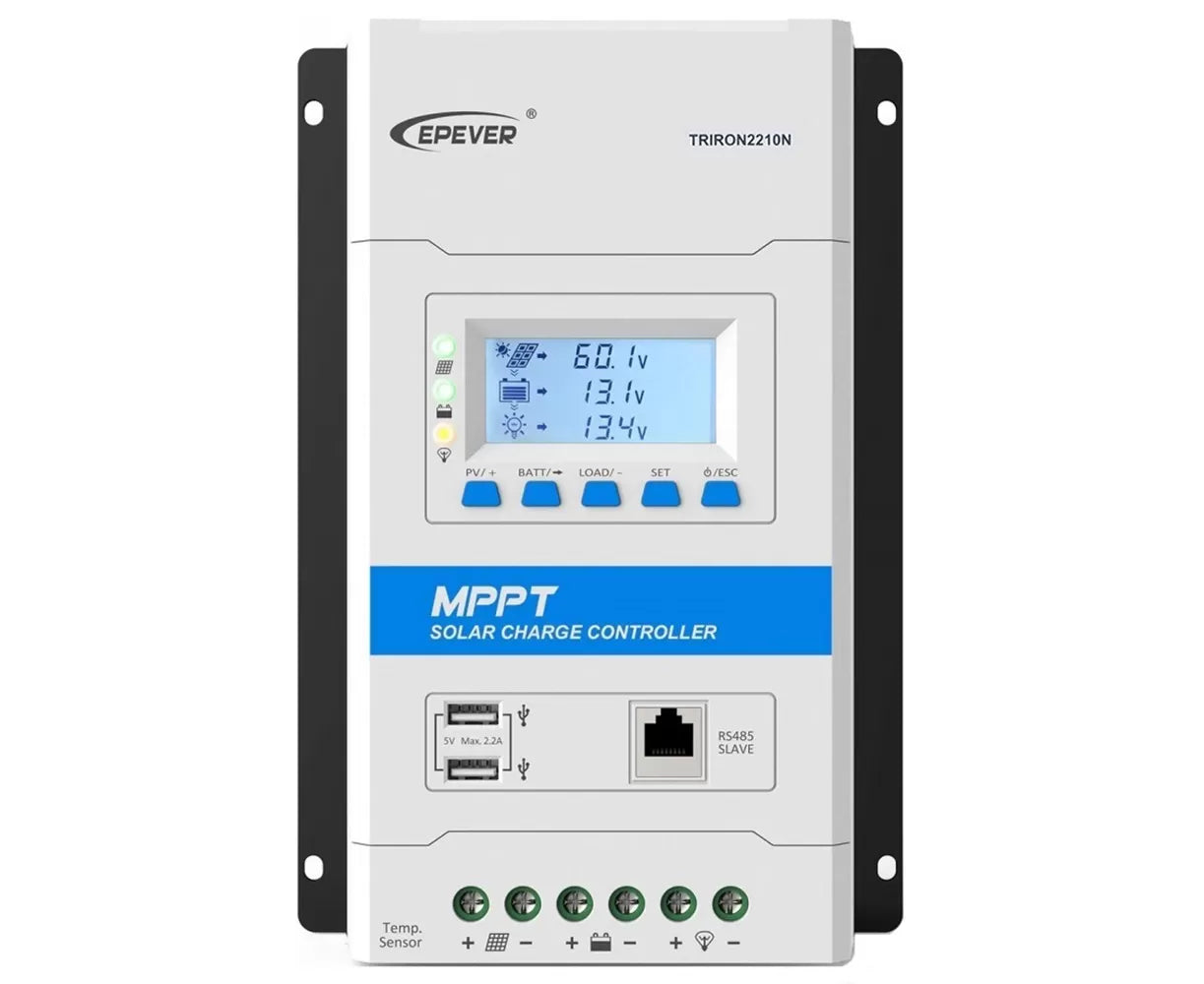

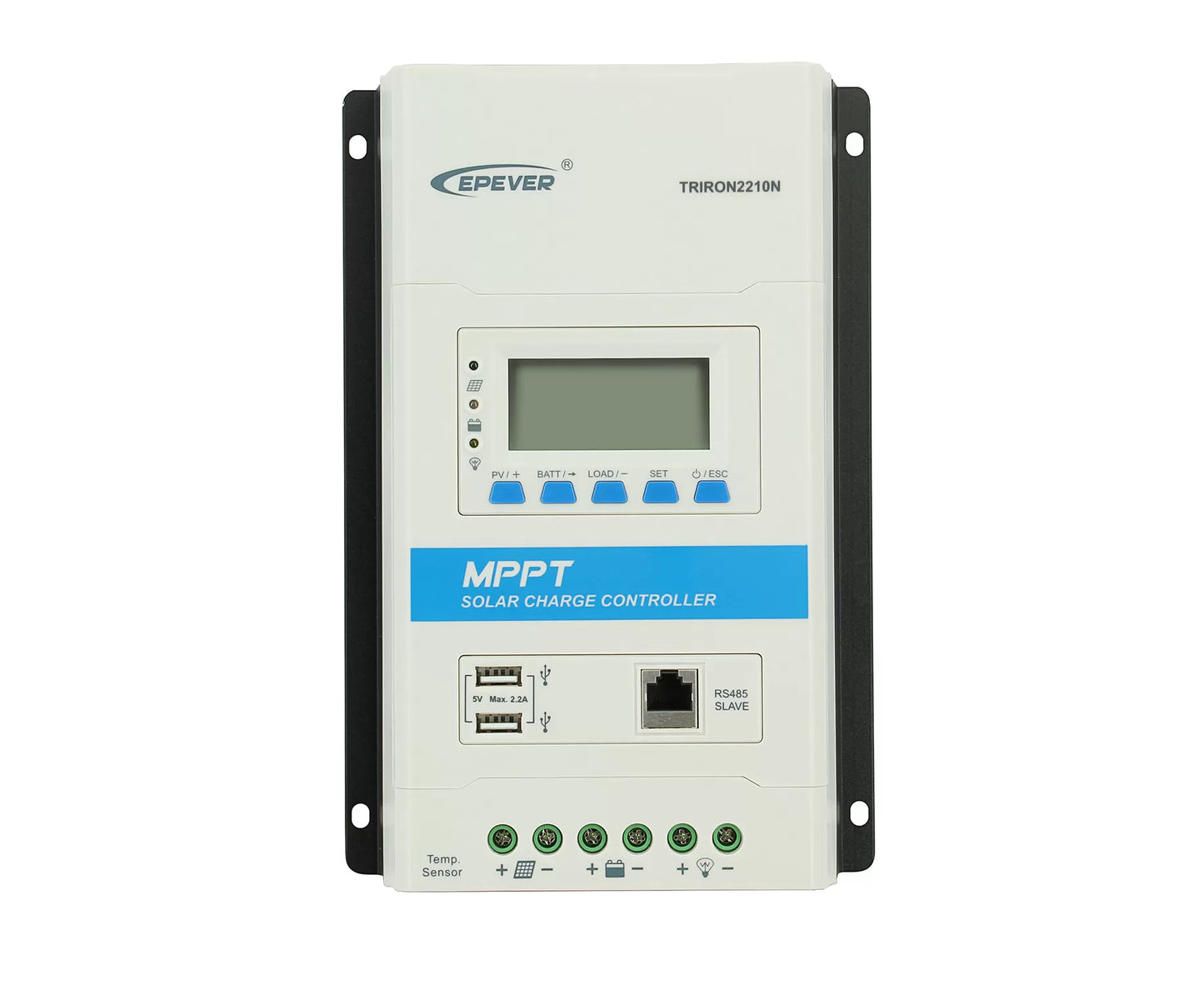

EPever 20A MPPT Solar Charge Controller Triron2210N 12V 24V Auto Backlight LCD Display Solar Regulator With Dual USB

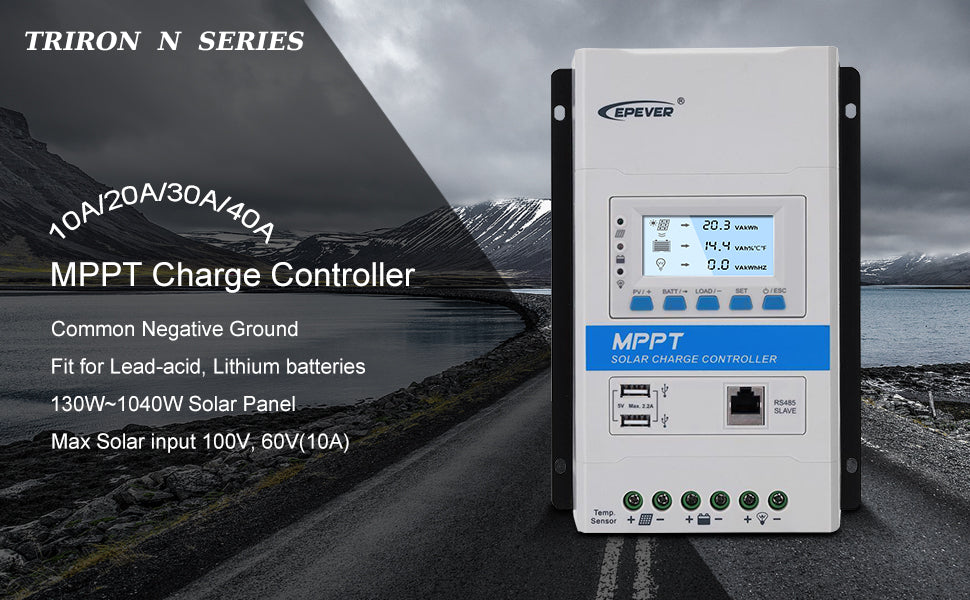

20A MPPT CHARGE CONTROLLER PRODUCT FEATURE

• Identify and load the drivers of various modules automatically
• Modular design for easy combination and replacement.
• Advanced MPPT Solar Charge Controller algorithm to minimize the maximum power point loss rate and loss time
• High-quality components, perfecting system performance, with a maximum conversion efficiency of 98%.
• Ultra-fast tracking speed and great tracking efficiency.
• Automatic limitation of the charging power and current, Wide MPP operating voltage range.
• Four load working modes support-----Manual control, Light ON/OFF control, Time control, Light NO+Time control.
• Compatible with lead-acid and lithium-ion( lithium-ion battery need RS485 cable or WIFI box select the correct battery type.)
• Rich LCD and clear indicators to display mppt charge controller's operating data and status of the system.
• Real-time energy statistics function, Overheating power reduction function.
• Provide 5V/2.2A DC power through the dual USB output interface to charge electronic devices. (Only available when your LOAD indicator is ON)
• PC software, Android APP wifi supoort.(optional accessories: RS485 cable or wifi box, doesn't include).

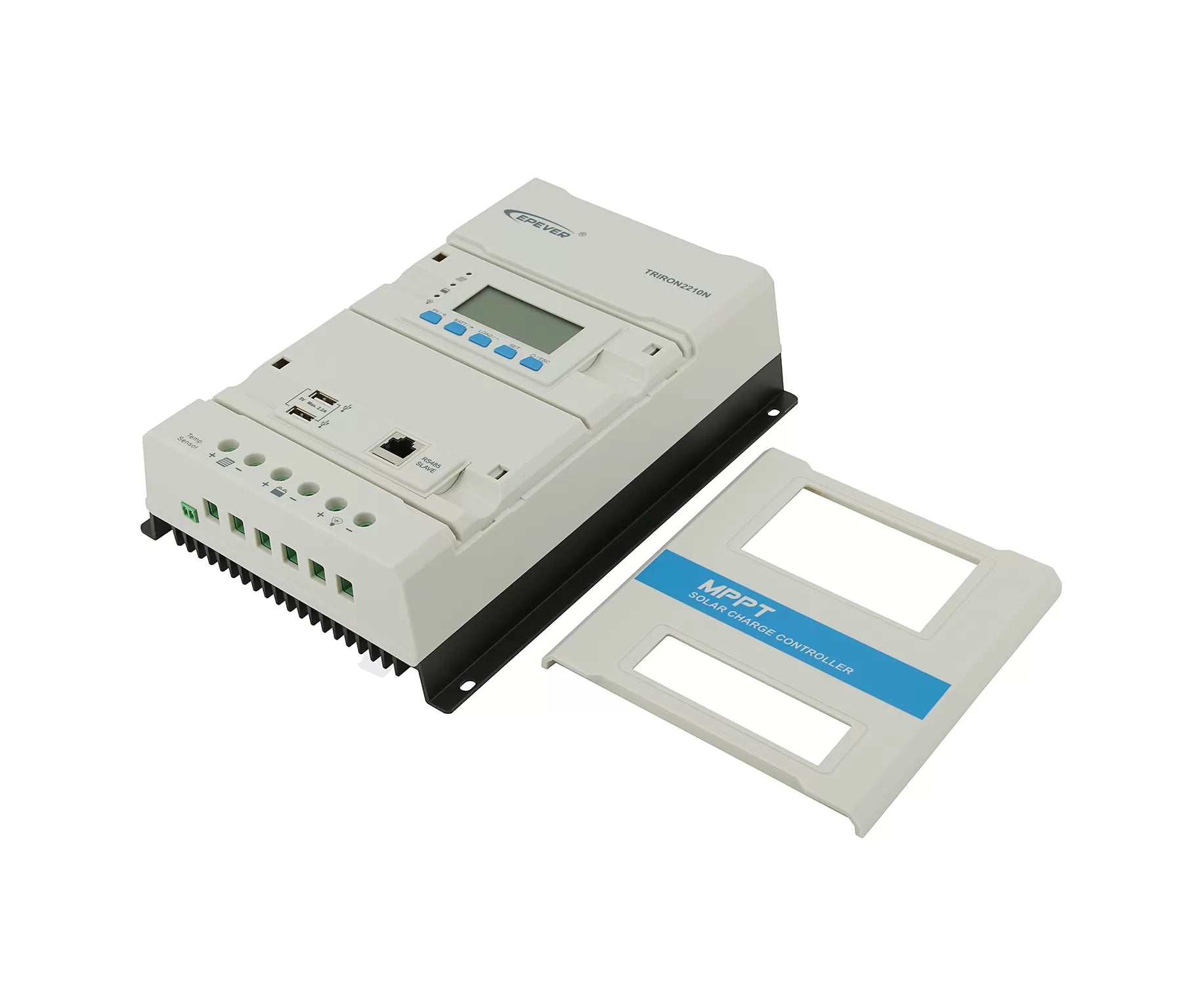

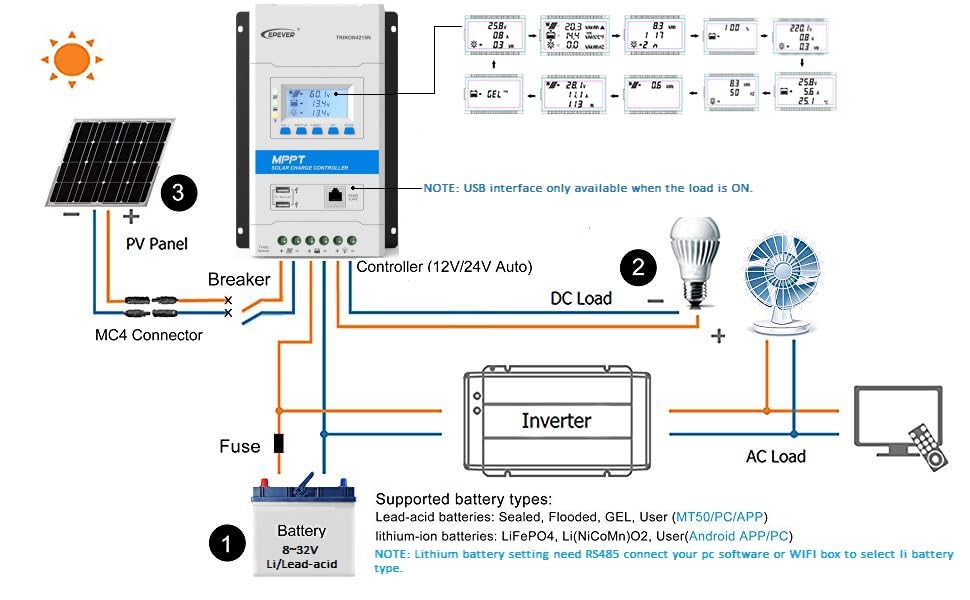

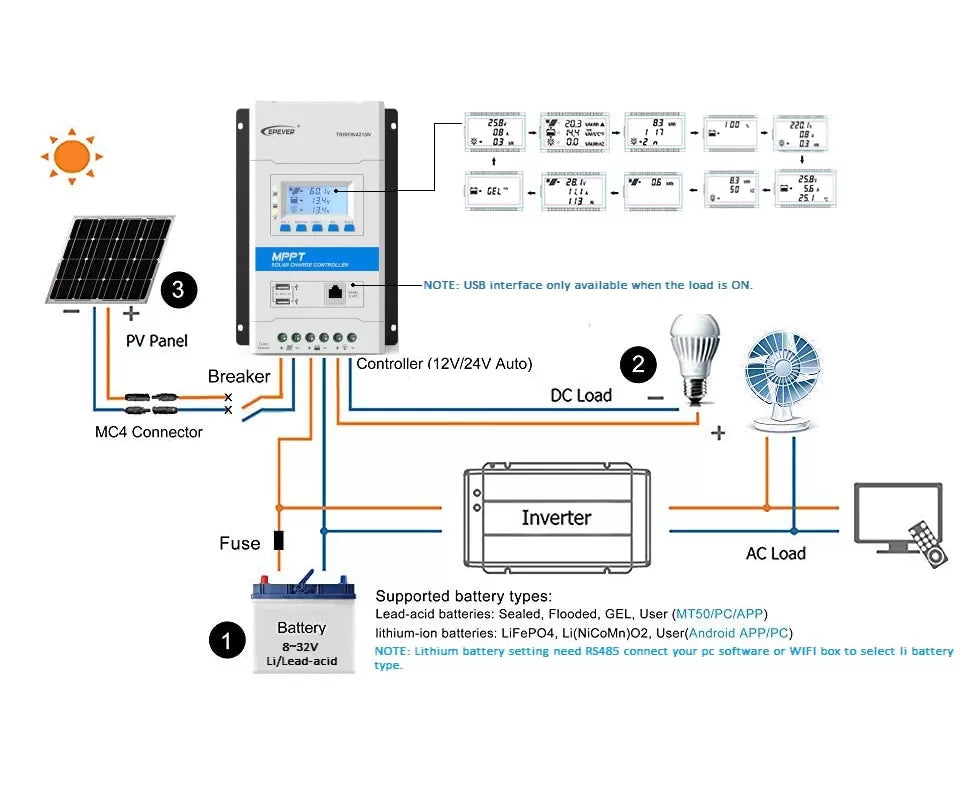

WIRING DIAGRAM

HOW TO WIRE YOUR EPEVER 20A MPPT CHARGE CONTROLLER?

1. Turn the 20amp controller's adjusting screw counterclockwise until the plate moves downward.
2. Please peel off the coating of the cable tip by about 8 to 10 mm, Then Insert the wire into the new opening between the plate and the "top" of the terminal hole.
3. When turning the adjuster clockwise, the plate moves upward and crushes the wire in the hole of the terminal.
4. Make sure all connections going into and from the 20A mppt controller are tight.

IMPORTANT NOTE OF MPPT CHARGE CONTROLLER:

1. Make sure your battery must be at least 60% charged prior to connecting to mppt solar charge controller.
2. Always connect and turn on your battery first, and wait for the LCD display to light up then turn on/wire your solar panel.
3. Never wire your solar panel to the controller without a battery wiring.
4. Careful your input power and voltage do not exceed the max value.
5. Our controller has QUALITY PROMISE! If for any reason you are not satisfied with this purchase, kindly let us know, we will offer a replacement or full refund without any cost from your side!

Features:

• Identify and load the drivers of various modules automatically
• Support the hot swapping function without any damage for each module
• Modular design for easy combination and replacement
• Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
• Advanced MPPT technology, with efficiency no less than 99.5%
• High-quality components, perfecting system performance, with a maximum conversion efficiency of 98%
• Ultra-fast tracking speed and guaranteed tracking efficiency
• Automatic limitation of the charging power and current
• Wide MPP operating voltage range
• Multiple load work modes
• Compatible with lead-acid and lithium-ion batteries
• Battery temperature compensation function
• Real-time energy statistics function
• Overheating power reduction function
• LCD and indicators to display operating data and status of the system
• User-friendly buttons for comfortable and convenient operation
• Master and slave RS485 communication modules design, reading the load or inverter operating data
• Control the inverter switch through the relay interface
• Provide 5VDC power through the dual USB output interface to charge electronic devices

Electronic protections:

• PV over current protection
• PV short circuit protection
• PV reverse polarity protection
• Battery reverse polarity protection
• Battery over-voltage protection
• Battery over-discharge protection
• Battery overheating protection
• Lithium battery low-temperature protection
• Load short circuit protection
• Load overload protection
• Controller overheating protection
• TVS high voltage transients protection

EPever 20A MPPT Solar Charge Controller DataSheet

Please confirm the specification before install

User Manual (Triron_Series_User_Manual.pdf, 1,825 Kb) [Download]
