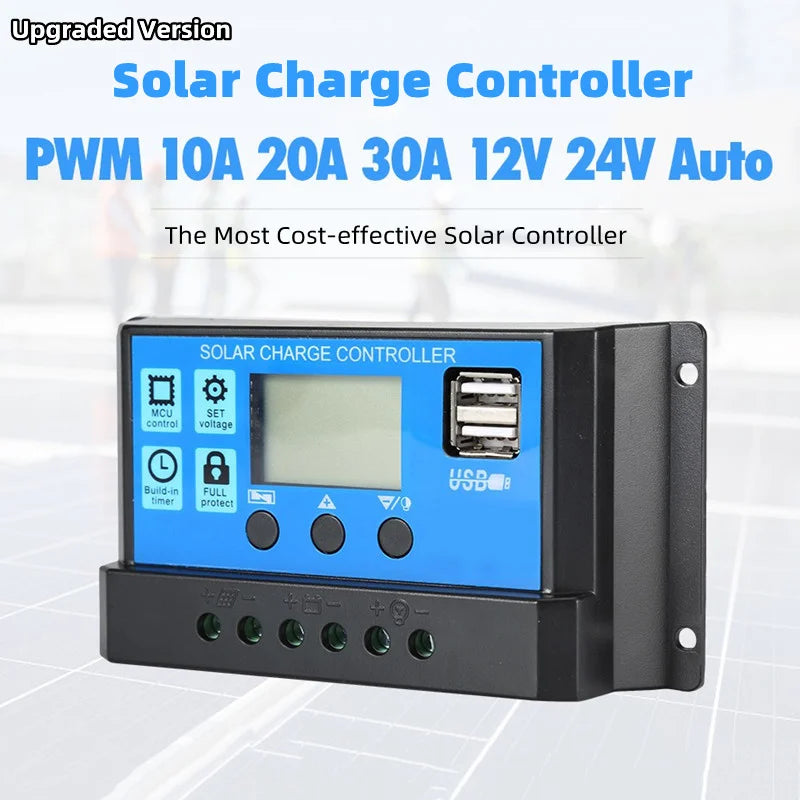

Upgraded 10A 20A 30A Solar Controller 12V/24V Auto Solar Panel PV Regulator PWM Battery Charger 5V Output LCD Display Dual USB

Upgraded 10A 20A 30A Solar Controller 12V/24V Auto Solar Panel PV Regulator PWM Battery Charger 5V Output LCD Display Dual USB

Regular price $18.92 USD
Regular price Sale price $18.92 USD
Sale Sold out
Shipping calculated at checkout.
Color
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Working temperature: -35 ℃ -60 ℃,12V fits 18V solar panel, 24V fits 36V solar panel

Voltage: DC 12V / 24V

Self-consumption: <10MA

Origin: Mainland China

Name: Solar Controller

Model Number: Upgraded Version Solar Charge Controller

Maximum Current: 30A

Is Smart Device: No

Feature 3: Smart Solar Charge Controller

Feature 2: Solar Regulator

Feature: Solar Charge Controller

Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)

Display: LCD screen

Certification: CE,FCC,RoHS

Application: Charger Controller,Voltage Controller,Wind Controller,Lighting Controller,Solar System Controller

Upgraded 10A 20A 30A Solar Controller 12V/24V Auto Solar Panel PV Regulator PWM Battery Charger 5V Output LCD Display Dual USB

Feature:


● Build-in industrial micro controller

● Fully 4-stage PWM charge management

● Big LCD display, all adjustable parameter

● Dual mosfet reverse current protection, low heat production

● Support lead-acid battery, dual USB charging function, floating charge, over-discharge, return voltage can be adjusted, a variety of batteries can be selected, power indicator.Support Apple's mobile phone charging

● Light control + delay function; it has protection against backflow, overcharge, overdischarge, lightning protection, overheating, output short circuit, etc., with memory function

● Suitable for solar green light, solar light boxes advertising board, solar insecticidal lights, housing solar power generation system, marine solar power generation system, outdoor survival solar power generation system

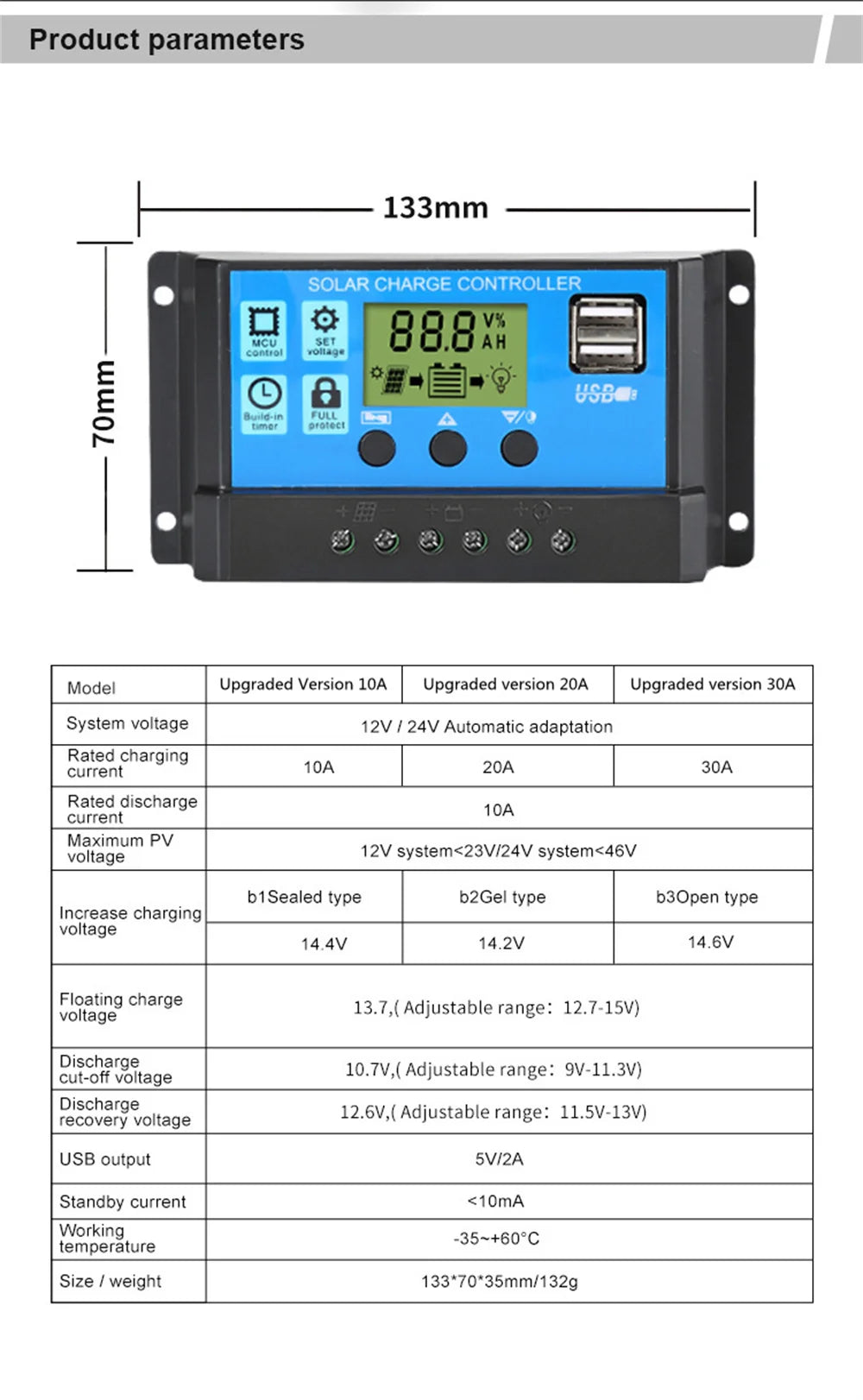

MODEL

10A

20A

30A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

Discharging Current

10A

10A

10A

Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Floatcharge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

Solar Panel8V(Light lights delay)

Voltage of close light

Solar Panel8V(Light off delay)

USB output

5V/2A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

Note

*all red color voltage X2 ,while using 24V system.

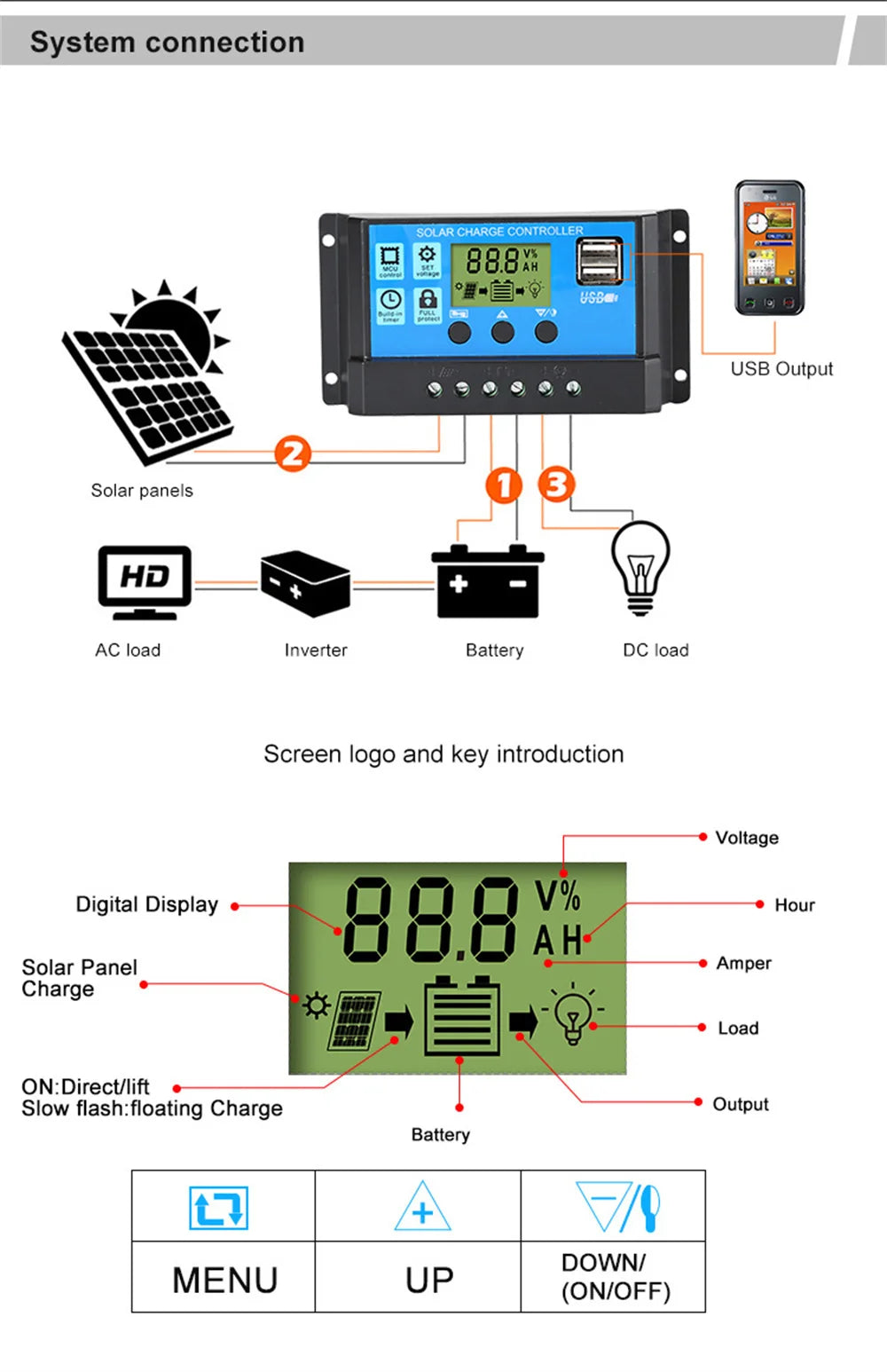

System Connection:

1.Connect the battery to the charge regulator-plus and minus.

2.Connect the photovoltaic module to the regulator-plus and minus.

3.Connect the consumer to the regulator-plus and minus.


NOTE: The reverse order applies when deinstalling, an improper sequence order can damage the controller


This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically, There are optional 10A 20A 30A model.


10A:

-if your battery is 12V ,the max solar panel input is 25V 120W

-if your battery is 24V ,the max solar panel input is 50V 240W


20A:

-If your battery is 12V, the max solar panel input is 25V 240W

-if your battery is 24V, the max solar panel input is 50V 480W


30A
:

-if your battery is 12V ,the max solar panel input is 25V 360W

-if your battery is 24V ,the max solar panel input is 50V 720W


Safety Instruction:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation

2.The battery cable should be as short as possible to minimize loss

3.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator


Package Included:

1X Solar Panels Battery Charge Controller

1X User Manual


Notice:

1.Please allow slight deviation of measurement due to manual measurement.

2.Due to different producing batches, product details might be a little different.

3.Due to different monitors and different light, the picture may not reflect the actual color of the item.

4.Please consider the actual sizes shown in the listing as the pictures are generally enlarged to show detail.

5. Indoor use only: the working temperature of this controller is -35°C to 60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation.

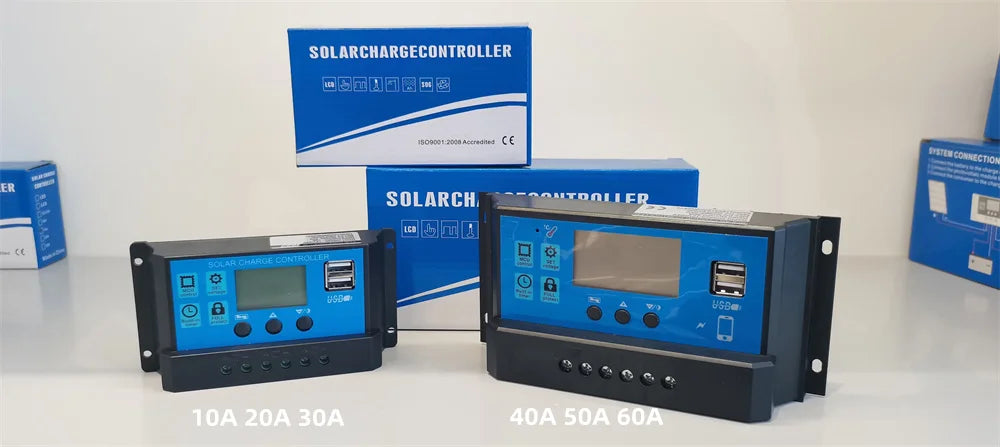

Upgraded 10A 20A 30A Solar Controller, Upgrade solar controller for auto-powered systems with PWM charging, LCD display, and adjustable current.

Upgraded Solar Controller for 12V/24V Auto-Powered Systems, featuring PWM battery charging and LCD display. Output: 5V. Includes dual USB ports and adjustable current settings from 10A to 30A.

Upgraded 10A 20A 30A Solar Controller, Photovoltaic module connected to regulator's plus and minus terminals.Upgraded 10A 20A 30A Solar Controller, Solar Charge Controller with PWM, LCD Display, and Dual USB Ports for Charging Devices

Upgraded solar charge controller with PWM, suitable for 10A, 20A, or 30A solar panels. Auto-regulates voltage to 12V or 24V. Includes LCD display and dual USB ports for charging devices.

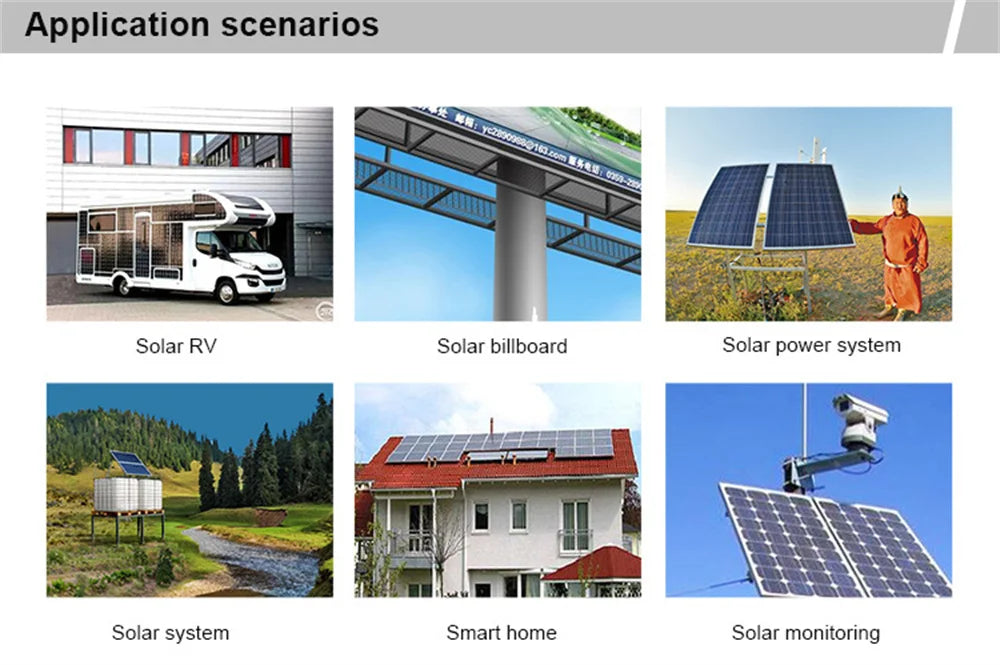

Upgraded 10A 20A 30A Solar Controller, Solar-powered controller for RVs, billboards, and smart homes, regulating charging and monitoring.

Suitable for solar-powered applications like RVs, billboards, and smart homes, this controller regulates charging and monitoring.

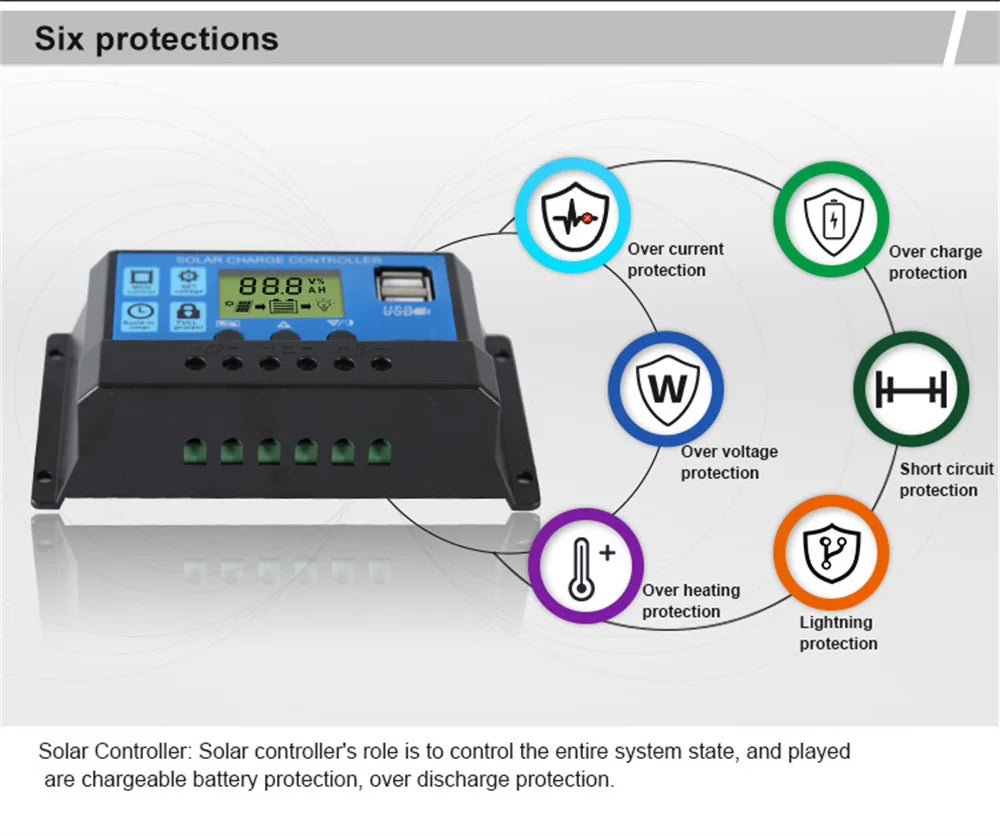

Upgraded 10A 20A 30A Solar Controller, Safeguards against 6 risks (overcurrent, charge, voltage, short circuit, heat, lightning) for safe battery charging/discharge.

This solar controller features six protections: overcurrent, overcharge, overvoltage, short circuit, overheating, and lightning. It safeguards the entire system, ensuring safe charging and discharging of batteries while preventing damage from excessive current or voltage.

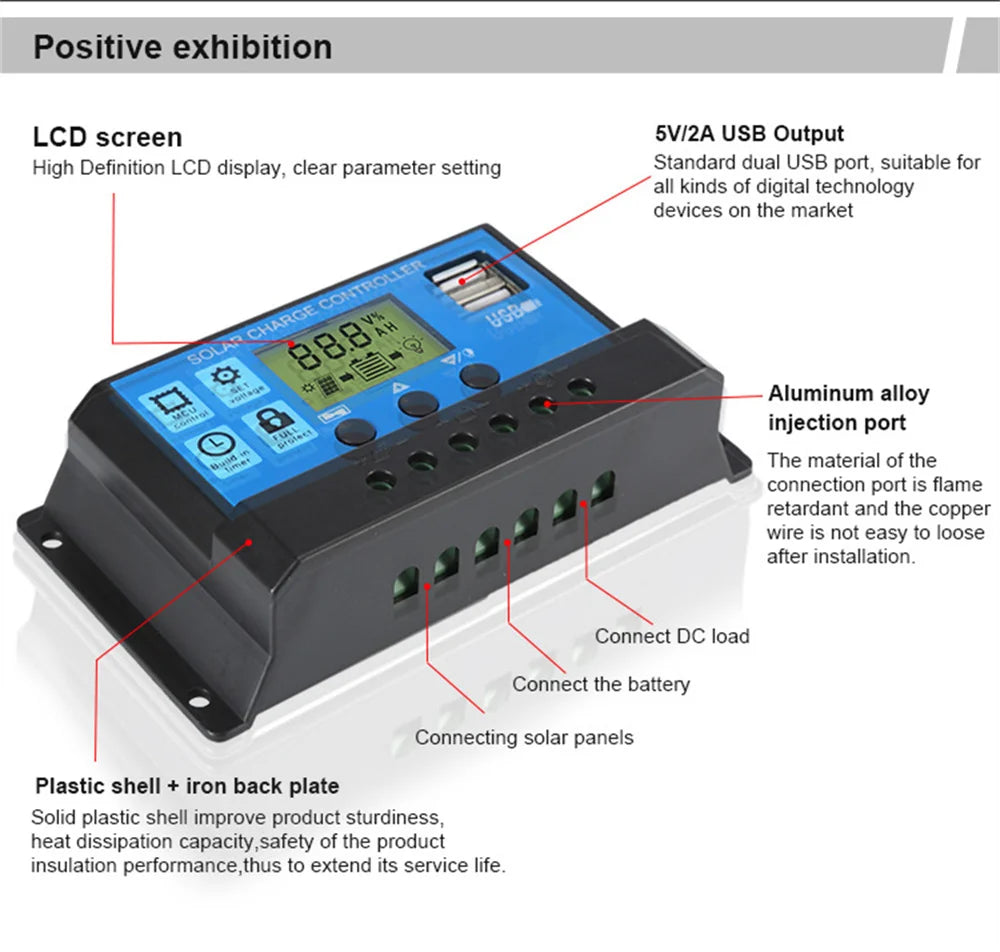

Upgraded 10A 20A 30A Solar Controller, Solar controller with HD display, USB ports, flame-retardant ports, and durable design for charging devices.

Featuring a high-definition LCD display and clear parameter settings, this solar controller includes a standard dual USB port suitable for charging various digital devices. The aluminum alloy injection ports are flame retardant and resistant to copper wire loosening after installation. A sturdy plastic shell with an iron back plate provides improved heat dissipation, insulation, and product longevity.

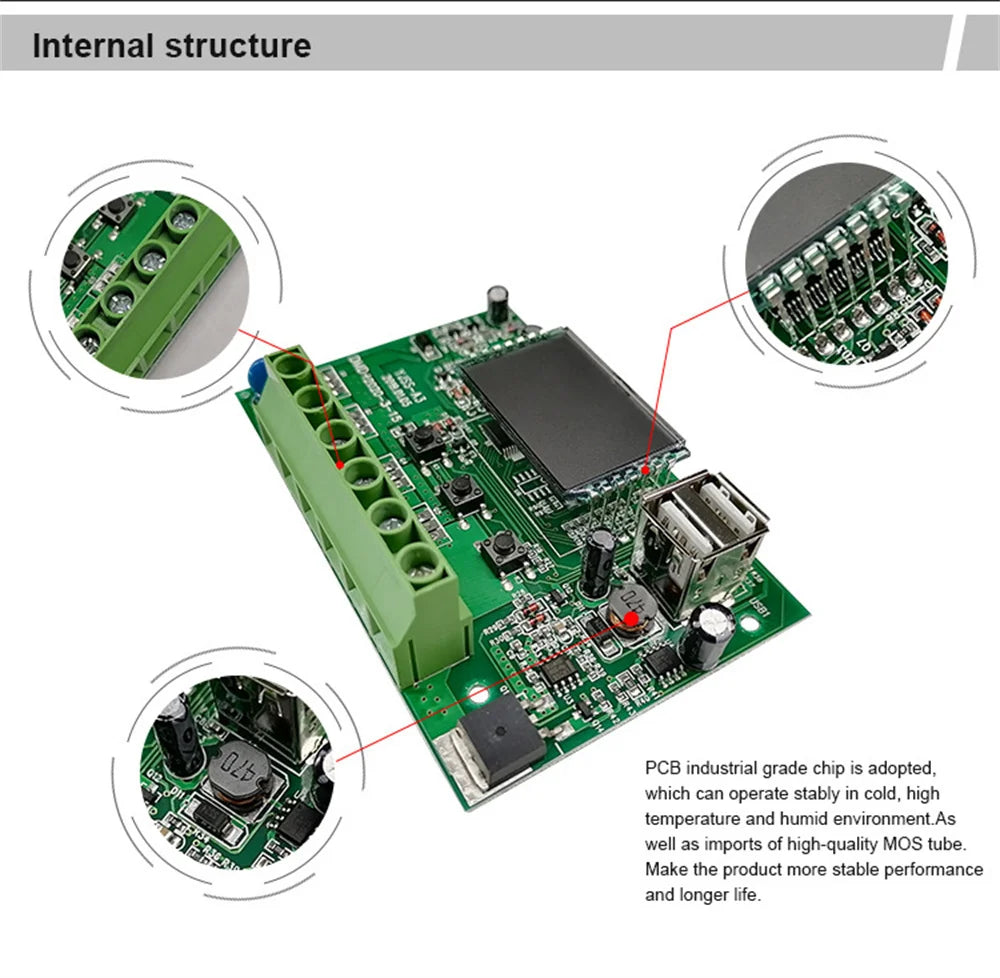

Upgraded 10A 20A 30A Solar Controller, Robust electronics: industrial-grade PCB and MOSFET chips ensure stability in harsh environments.

Built with an industrial-grade PCB and high-quality MOSFET chips, this controller ensures stable operation in extreme temperatures and humidity, prolonging its lifespan.

Upgraded 10A 20A 30A Solar Controller, Automated solar charger controller for 12V or 24V systems with USB monitoring and compact design.

This solar charge controller features automatic identification for 12V or 24V systems. It offers a simple operation mode with optical control and delay function. The USB port enables easy monitoring, and its compact design makes installation a breeze.

Upgraded 10A 20A 30A Solar Controller, Solar controller with upgraded features for 12V/24V auto solar panel charging, battery regulation and dual USB output.Upgraded 10A 20A 30A Solar Controller, Upgraded solar controller with 10A/20A/30A PV regulator, auto charging, LCD display, and USB output.

Solar Controller: Upgraded 10A/20A/30A PV Regulator. Features 12V/24V auto solar panel charging, LCD display, and dual USB output. Includes key introduction, voltage digital display, and battery charge/ discharge control. Menu options include ON/OFF, slow flash, and floating charge output.
