VEVOR 1000W Grid Tie Solar Inverter MPPT Pure Sine Wave 10.8-30V / 20-45V to 115V Solar Panel PV / Wind Turbine Power Generation
VEVOR 1000W Grid Tie Solar Inverter MPPT Pure Sine Wave 10.8-30V / 20-45V to 115V Solar Panel PV / Wind Turbine Power Generation
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
Use: PV / Wind Turbine Power Generation
Type: DC/AC Inverters
Solar Panels: 36cells-Vmp:18-21V,Voc:20-24V; 60cells-Vmp:26-30V:Voc:34-38V
Rated Power: 1000W
Product: Grid Tie Inverter
Origin: Mainland China
MPPT Voltage: 15-22VDC; 24-38VDC
Display: LED
DC MAX. Current: 70A; 45A
DC Input Range: 10.8-30VDC; 20-45VDC
Cooling: Fan-Cooling
Certification: CE
AC Output: 115VAC(90-140VAC)
VEVOR - High-Quality Equipment & Tools at Affordable Prices
Features & Details
- 【PREMIUM QUALITY】- Grid tie inverter adopts aluminum alloy shell, heat, cold-resistant, corrosion-resistant, and not easy to rust. The additional copper wiring lug can effectively reduce the short circuit and other weak DC connection faults.
- 【EXCELLENT PERFORMANCE】- Solar grid-tie inverter has the function of maximum power point tracking. It will detect the solar panel's voltage and current in real-time and keep tracking the maximum power point to charge the battery with the maximum power.
- 【HIGH-SPEED COOLING FAN】- The grid-tie solar inverter features a built-in intelligent temperature-controlled cooling fan. When the machine's internal temperature reaches a certain level, the fan will rotate and effectively reduces the operating temperature.
- 【FULLY SAFETY PROTECTIONS】- The solar tie inverter applies the LED indicator to remind the user of the inverter's running status promptly. Multiple intelligent security protections ensure the inverter to be fully protected in the process of use.
- 【PARALLEL INSTALLATION】-The inverter uses the parallel design of DC input and the modular design of solar micro-inverter, which is easy for system configuration, flexible for combination, strong expansibility of system. It is a key device of power generation systems.
Friendly Note:
- This is a Grid-Tie inverter, which means connecting the Grid power to the "AC output" would be necessary for Grid-tie power generation. Please check the voltage is 110V or 220V as well, different options according to the Grid voltage.
- If taking the solar panels as the input instead of batteries, "VOC" Voltage should be set in the range of 30-48V, the solar panels' power is set 20% bigger than the inverter's output power would be recommended. E.g. for the 600W inverter, the total solar panels' total output power should be 700-750W. For the 1200W inverter, the total power should be 1200~1400W.
- If taking the battery packs as input, 36V battery packs would be firstly recommended, three 12V batteries are connecting in series to 36V would be fine. When wires the inverter, please follow the indication in the inverter, Pos (+) to Pos (+), Neg(-) to Neg (-). Regarding the battery's capacity, 36V/10mah to 300W, 36V/20mah to the 600W inverter, and 36V/40-45mah to the 1200W inverter.
- Please check the configuration, input and output voltage are totally in the allowance, ensure the inverter could run normally and Grid to Grid generation.
Key Features
-
Made with durable aluminum alloy and RoHS compliant, this grid-tie inverter has an output range of 115V AC (90-140V) and supports input voltage from 10.8V to 30V DC.

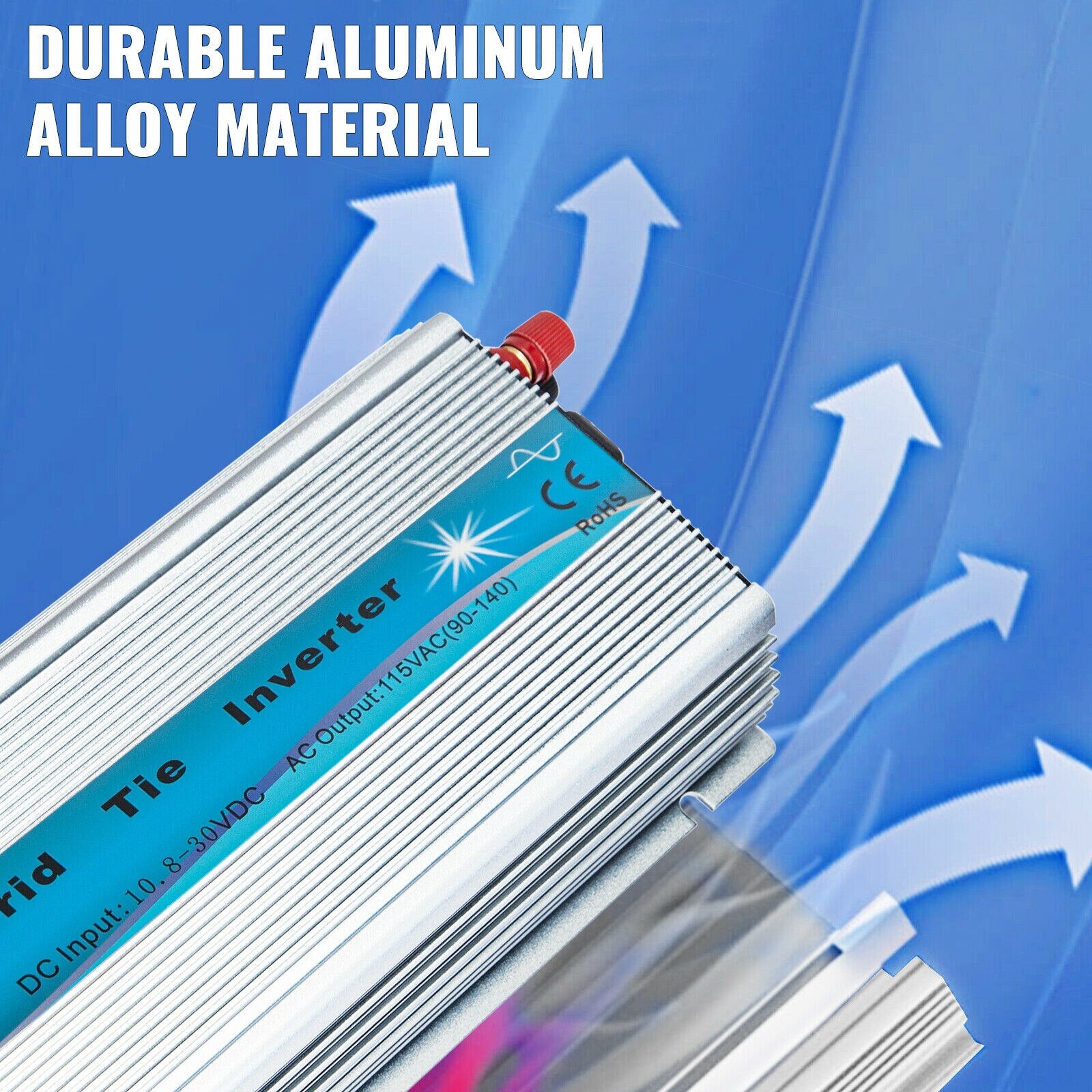

Sturdy Aluminum Alloy
This grid-tie solar inverter is made of aluminum alloy material, which is anti-vibration and anti-deformation. It has high strength and is able to resist oxidation, compression, and deformation.
-

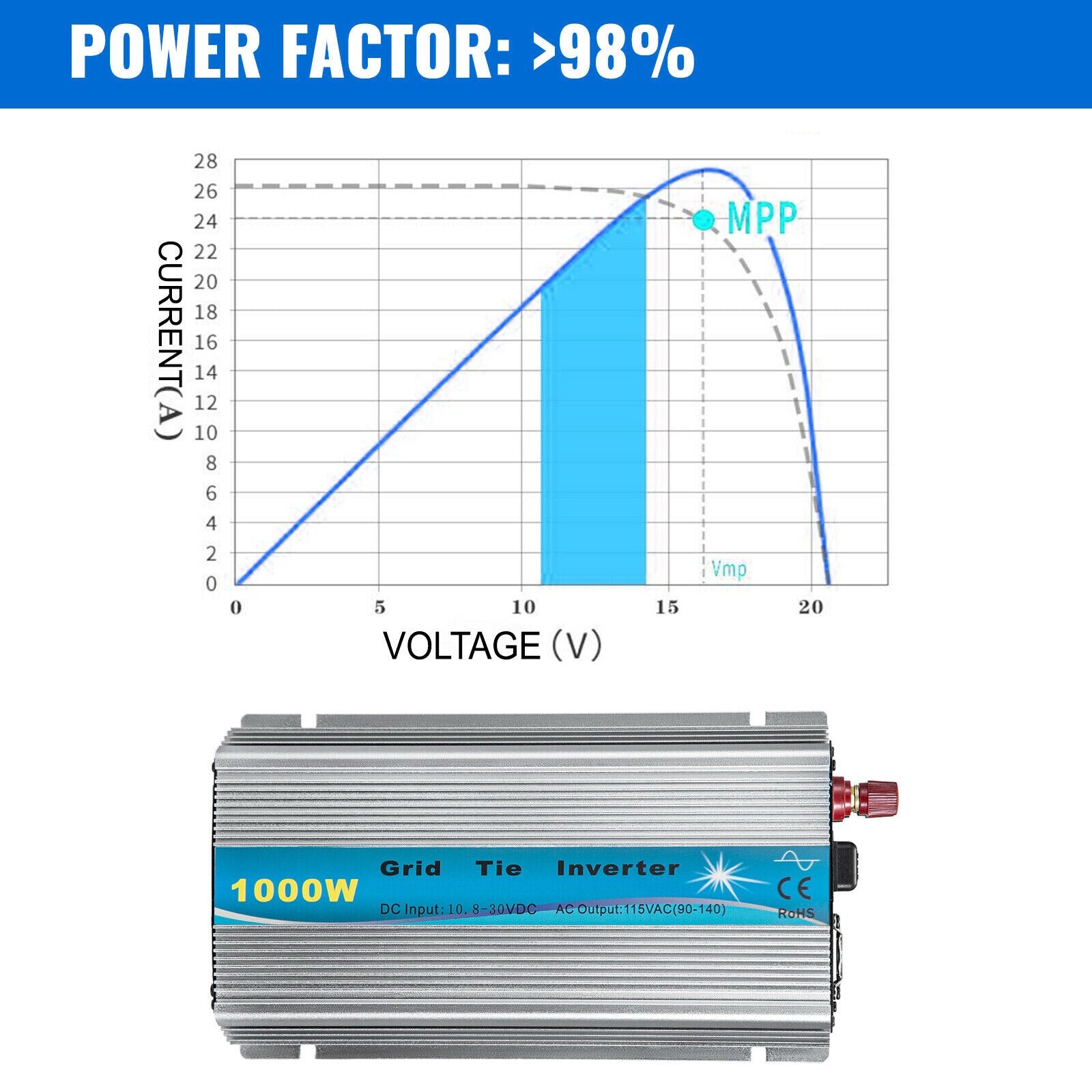

MPPT Function
When the MPPT function is adjusted to the maximum power point, the product automatically locks the power at the maximum power point, so that the output power is more stable.
-

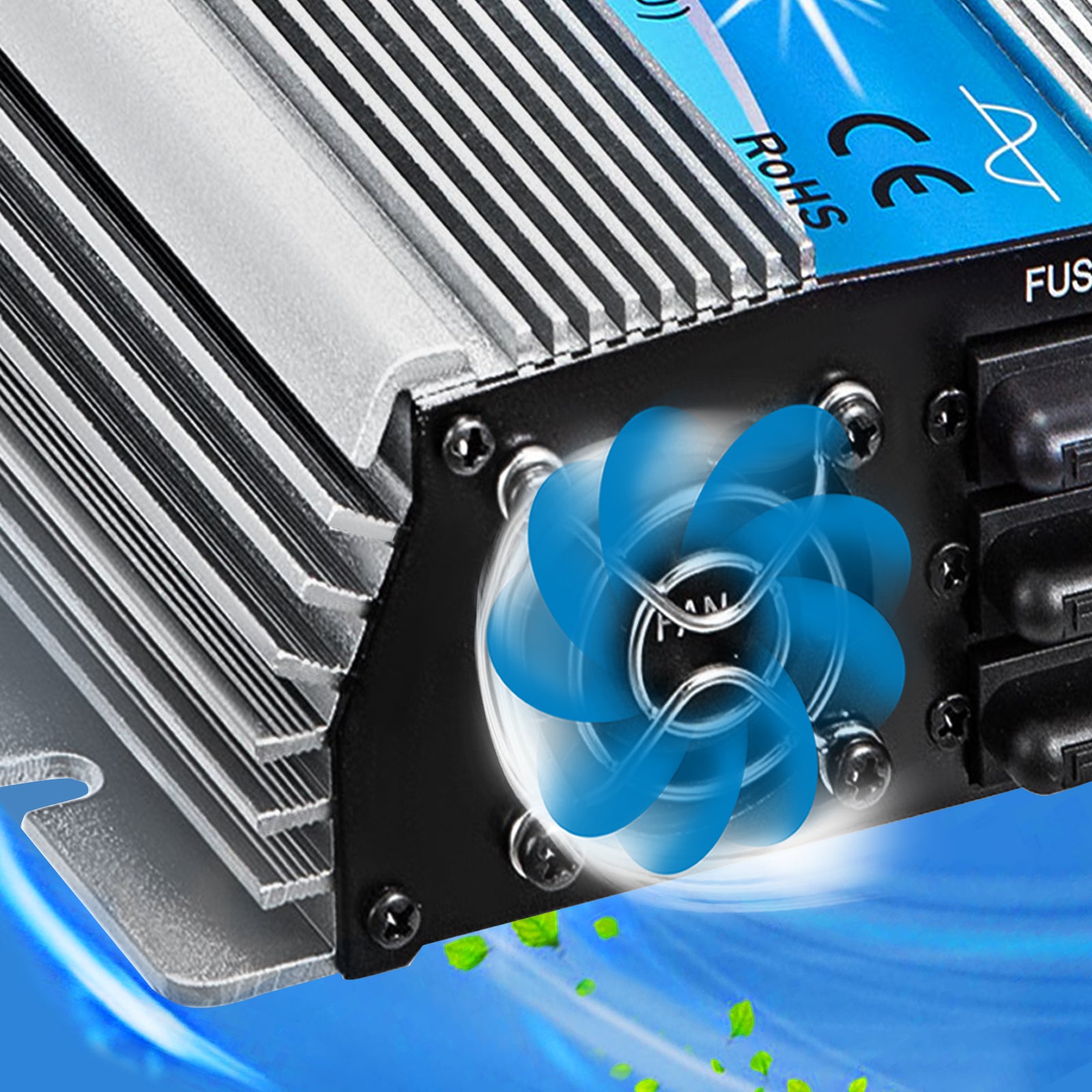

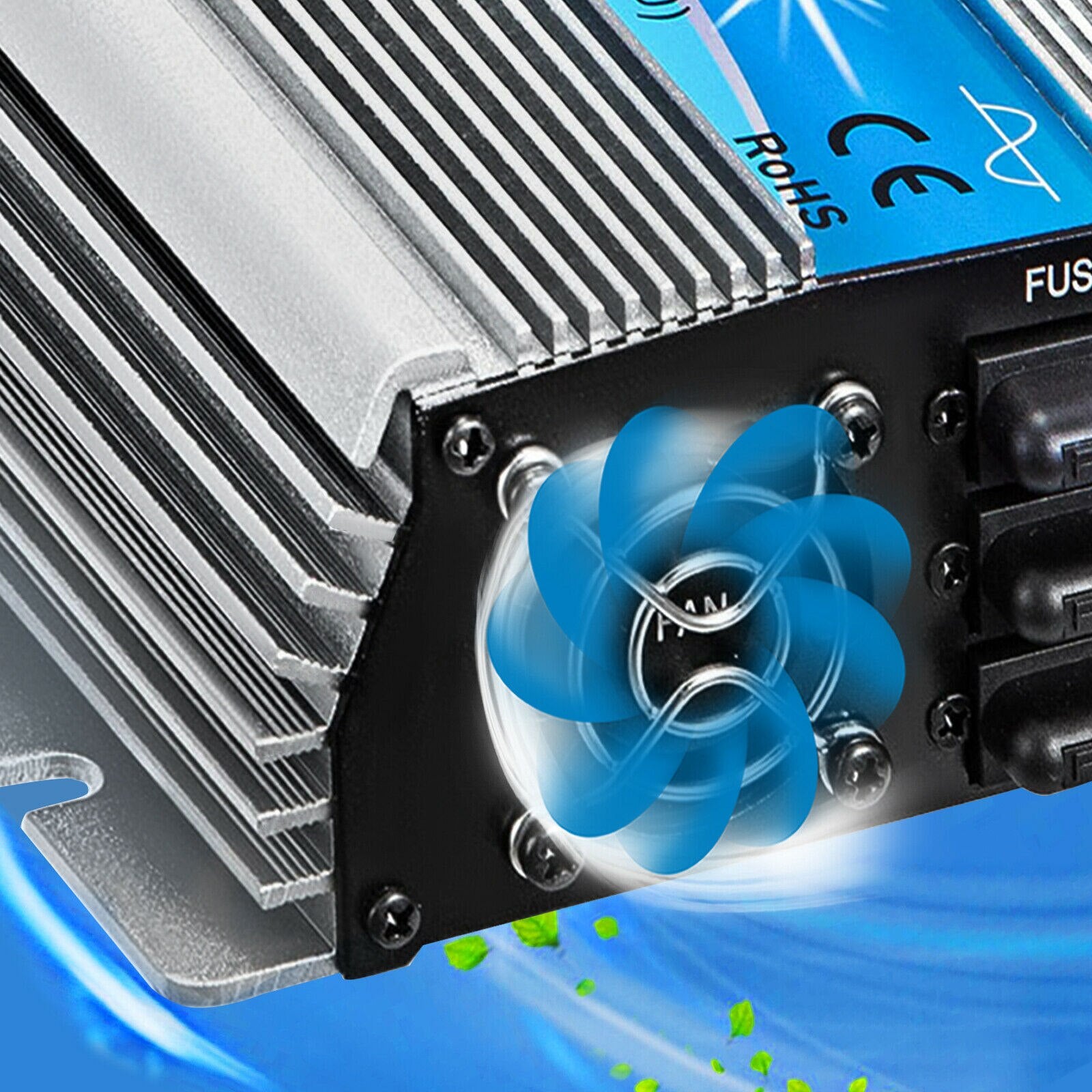

Intelligent Fan Cooling
A built-in intelligent cooling fan effectively reduces the operating heat. Fan net cover prevents small animals from flying into the machine, effectively protecting the fan's internal circuit.
-

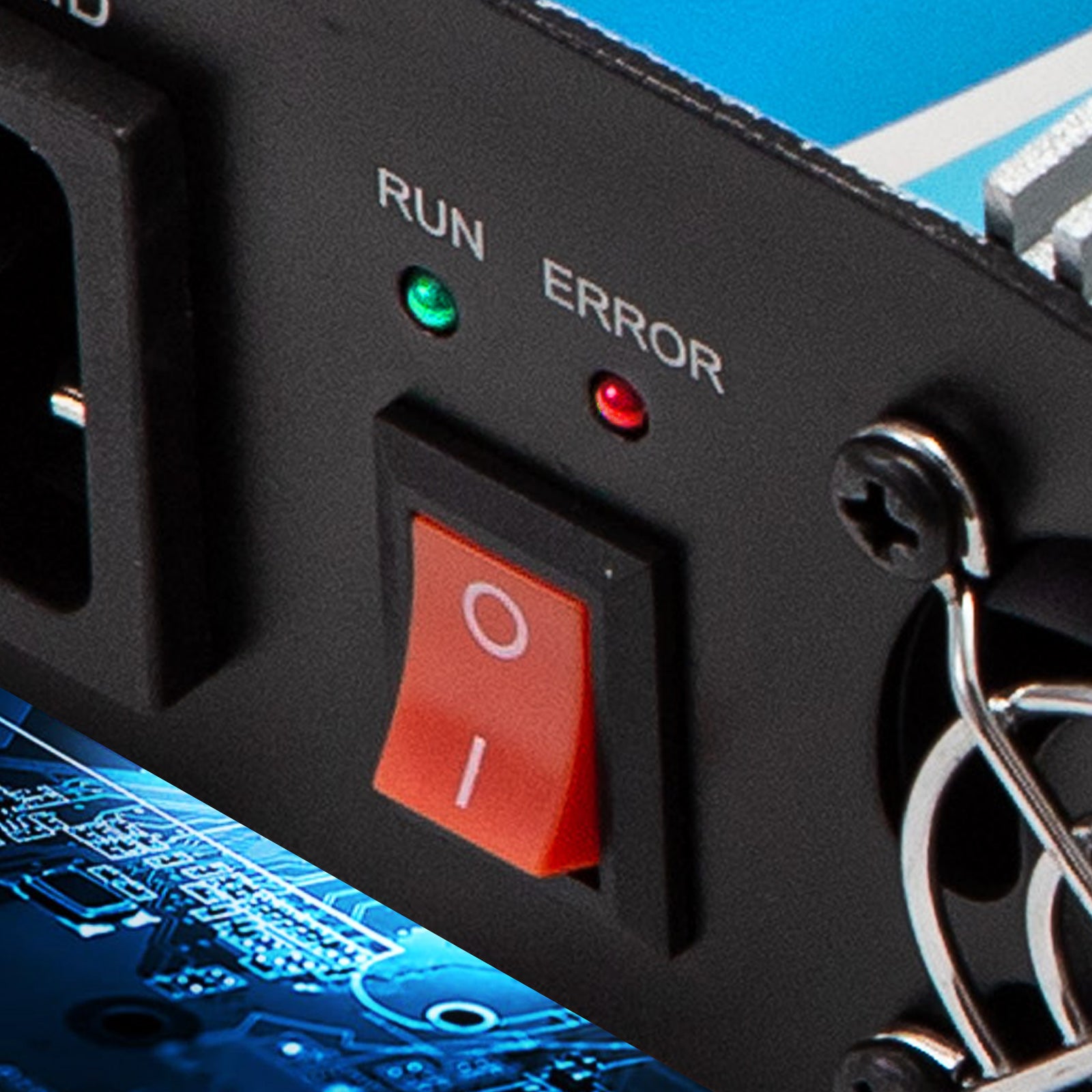

LED Indicators
LED indicators facilitate the user to observe the machine's normal operation more directly and adjust it in time. An independent power switch is easy to control the inverter.
-
This solar inverter features multiple protections, including short circuit, over temperature, overload, low voltage, and over-voltage protection, as well as islanding and reverse connection protection.

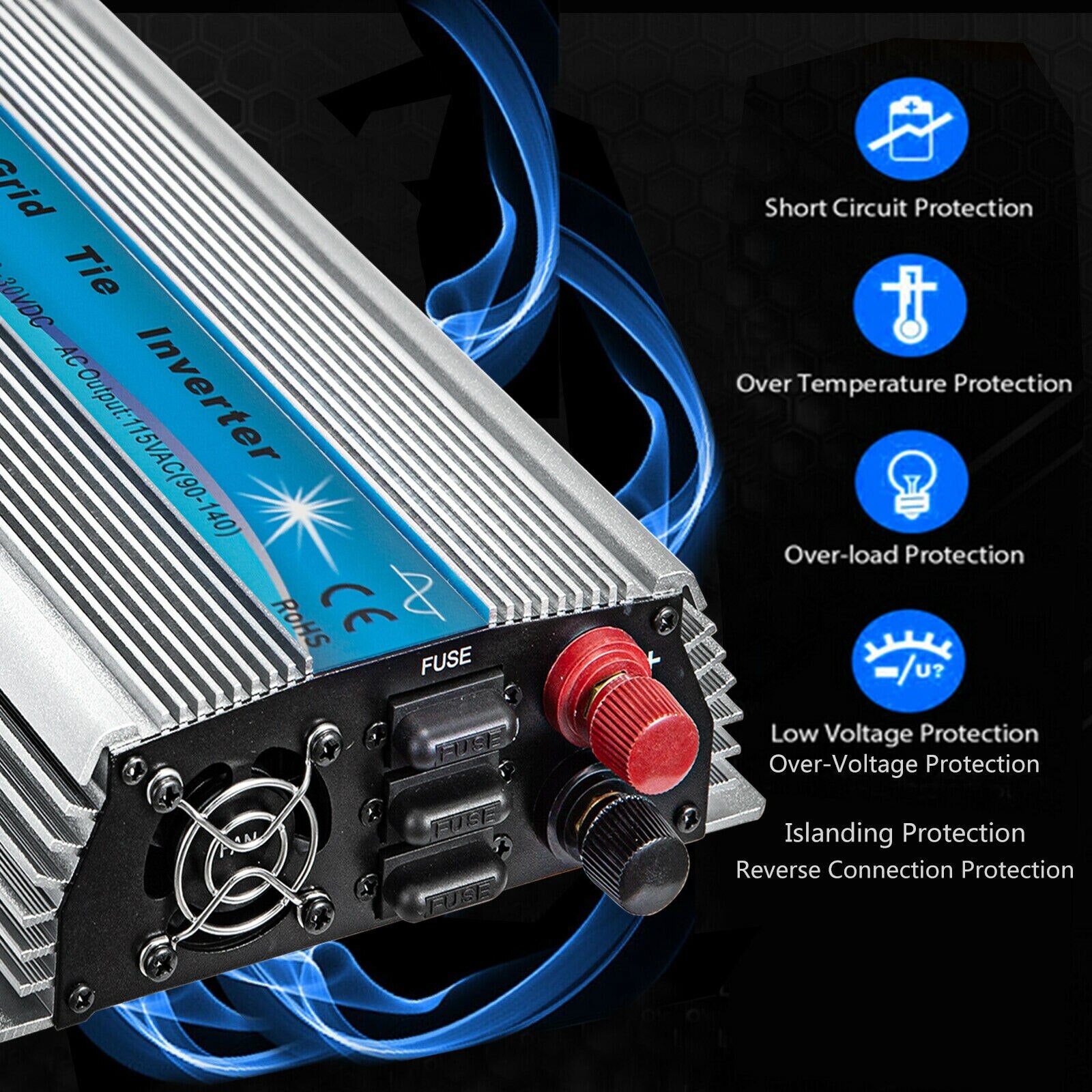

Multiple Protection Designs
There are seven main protection measures for an inverter: short circuit protection, over-temperature protection, over-load protection, low voltage protection, over-voltage protection, islanding protection, converse connection protection.
-
VEVOR's 1000W grid tie solar inverter converts pure sine wave DC power from 10.8-30V or 20-45V solar panels or wind turbines to 115V AC, suitable for home and commercial power generation.

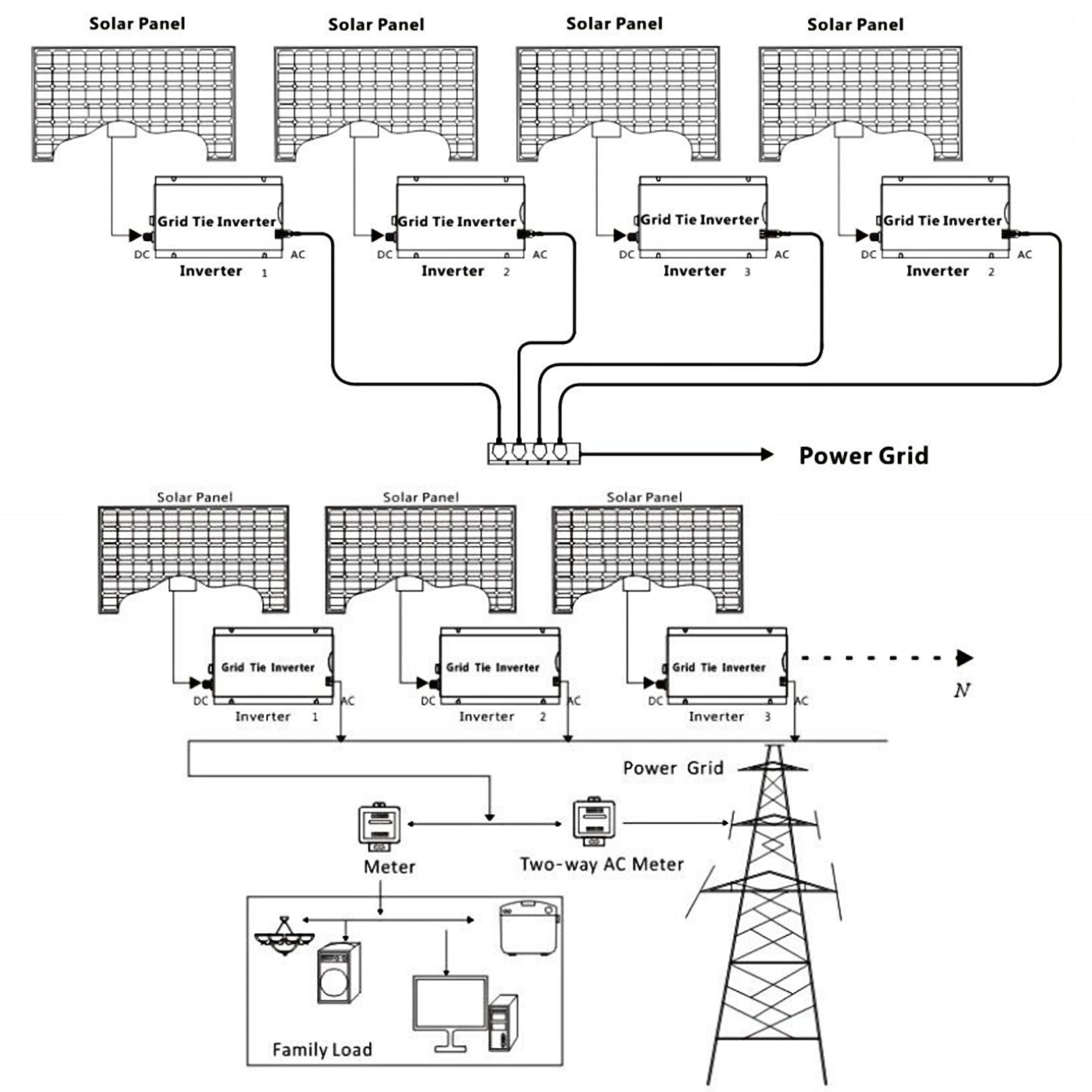

Distributed Installation
A small solar microinverter installs in parallel will achieve high power output function. Thanks to the distributed modularization, the inverter will not be affected by a single point of failure. Thus, the whole system's productiveness will be improved.
10.8-30VDC to 115VAC: 1000W Grid Tie Solar Inverter for 12V/24V Solar Panel
A smart grid-tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and connecting to the utility grid. The AC output from the inverter is synchronized and in-phase with the utility grid. It is a key device of power generation systems such as the PV power generation system, wind turbine power system.
- Excellent Performance
- High-Speed Cooling Fan
- Fully Safety Protections
- Parallel Installation
Specifications
- Rated Power: 1000Watt
- Solar Panels: 36cells-Vmp:18-21V,Voc:20-24V
- DC Input Range: 10.8-30VDC
- MPPT Voltage: 15-22VDC
- DC MAX. Current: 70A
- AC Output: 115VAC(90-140VAC)
- Frequency: 50Hz/60Hz(Auto control)
- Power Factor: >98%
- Working Temperature: -20℃-65℃/-13℉-149℉
- Working Humidity: 0%~90%RH non-condensing
- Waterproof: Indoor design
- Display: LED
- Cooling: Fan-cooling
- Stand-by Power: <1W
- Protection: Islanding, Short-circuit, Converse Connection, Low Voltage, Over Voltage, Over temperature Protection
- EMC: EN61000-6-3:2007 EN61000-6-1:2007
- Grid Disturbance: EN 50178+EN 62109-1+VDE0126-1-12
- Grid Detection: DIN VDE 1026 UL1741
Package Content
- 1 x Grid Tie Inverter
- 1 x Copper Wiring Lugs
- 1 x Plug
- 1 x User Manual
20-45VDC to 115VAC: 1000W Grid Tie Solar Inverter for 24V/36V Solar Panel
A smart grid-tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and connecting to the utility grid. The AC output from the inverter is synchronized and in-phase with the utility grid. It is a key device of power generation systems such as the PV power generation system, wind turbine power system.
- Excellent Performance
- High-Speed Cooling Fan
- Fully Safety Protections
- Parallel Installation
Specifications
- Rated Power: 1000Watt
- Solar Panels: 60cells-Vmp:26-30V:Voc:34-38V
- DC Input Range: 20-45VDC
- MPPT Voltage: 24-38VDC
- DC MAX. Current: 45A
- AC Output: 115VAC(90-140VAC)
- Frequency: 50Hz/60Hz(Auto control)
- Power Factor: >98%
- Working Temperature: -20℃-65℃/-13℉-149℉
- Working Humidity: 0%~90%RH non-condensing
- Waterproof: Indoor design
- Display: LED
- Cooling: Fan-cooling
- Stand-by Power: <1W
- Protection: Islanding, Short-circuit, Converse Connection, Low Voltage, Over Voltage, Over temperature Protection
- EMC: EN61000-6-3:2007 EN61000-6-1:2007
- Grid Disturbance: EN 50178+EN 62109-1+VDE0126-1-12
- Grid Detection: DIN VDE 1026 UL1741
Package Content
- 1 x Grid Tie Inverter
- 1 x Copper Wiring Lugs
- 1 x Plug
- 1 x User Manual
