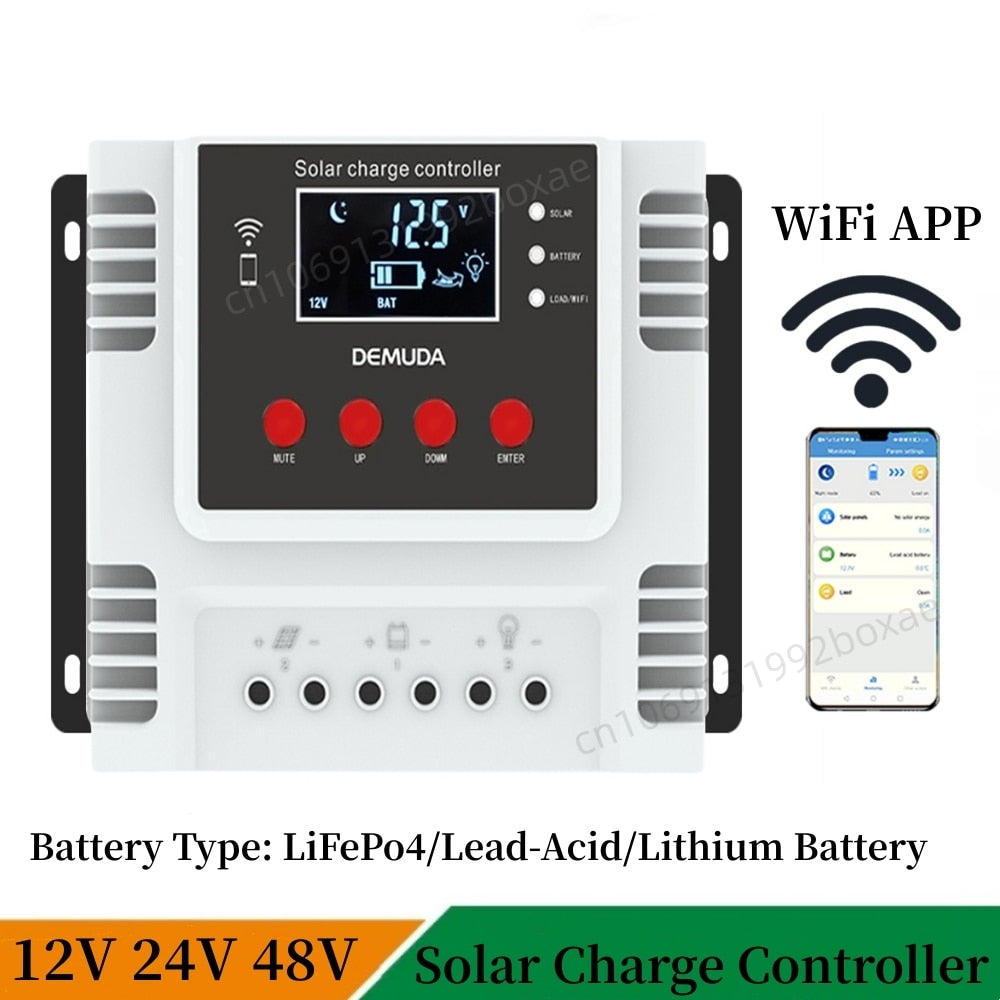

WiFi APP Control Solar Charge Controller 12V 24V 48V 60A 50A 40A 30A PWM Solar Regulator For LiFePO4 Lead-Acid Lithium Battery

WiFi APP Control Solar Charge Controller 12V 24V 48V 60A 50A 40A 30A PWM Solar Regulator For LiFePO4 Lead-Acid Lithium Battery

Regular price $48.91 USD
Regular price Sale price $48.91 USD
Sale Sold out
Shipping calculated at checkout.
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

WiFi APP Control: WiFi App Real-time Data Monitoring

USB output: 5V 2A

Solar Charge Controller: WiFi Solar Charge Controller 60A

Origin: Mainland China

Model Number: 12V 24V 48V 60A Solar Charge Controller WiFi

Maximum Current: 60A

Is Smart Device: YES

Charge Mode: PWM

Certification: CE,FCC,RoHS

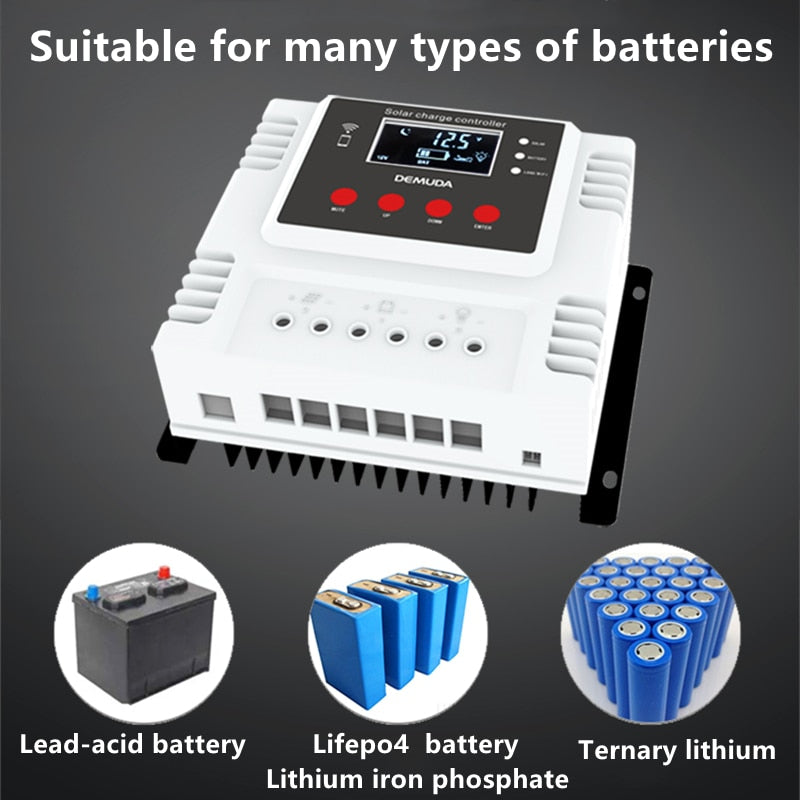

Battery types: ternary lithium battery/lithium iron phosphate battery/Lifepo4/Lead-acid battery

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

50A/60A Size: 0.8kg-1.2kg

30A/40A Size: 135*170*70mm

10A/20A Size: 115*145*57mm

WiFi APP Control Solar Charge Controller 12V 24V 48V 60A 50A 40A 30A PWM Solar Regulator For LiFePo4 Lead-Acid Lithium Battery


Note: WiFi APP only supports Android phones; Only local networks are supported, not remote networks (WiFi App Monitoring can only be used when the phone is within the vicinity of the controller)


Product Description


1. Adopt industrial-grade main chip.

2. Large screen, LCD display, adjustable charge and discharge parameters.

3. Complete 3-stage PWM charging management.

4. Built-in near-charge protection, short-circuit protection, open-circuit protection, and reverse connection protection,all self-recovery and will not damage the controller.

5.Dual USB ports make charging more flexible.

6. WIFI APP can check and set it at any time.(WIFI APP only supports Android system, not IOS system

   (WIFI only supports local network, not remote network)

7. Battery temperature detection function (optional).

8.Our controller can be used in ternary lithium battery, lithium iron phosphate and Lead-acid battery


Advice for safe use


1.This charge controller is 12/24/48V auto identified, Make sure your battery has enough voltage for the controller to recognize the battery type before frst installation.

2.The battery cable should be as short as possible to minimize loss, to avoid affecting the judgment of normal voltage

3. This controller is suitable for Lithium Ternary, LiFePo4 and Lead acid battery.

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

5.The controller will generate heat when it is running, please pay attention to install the controller on a flat, well-ventilated surface.

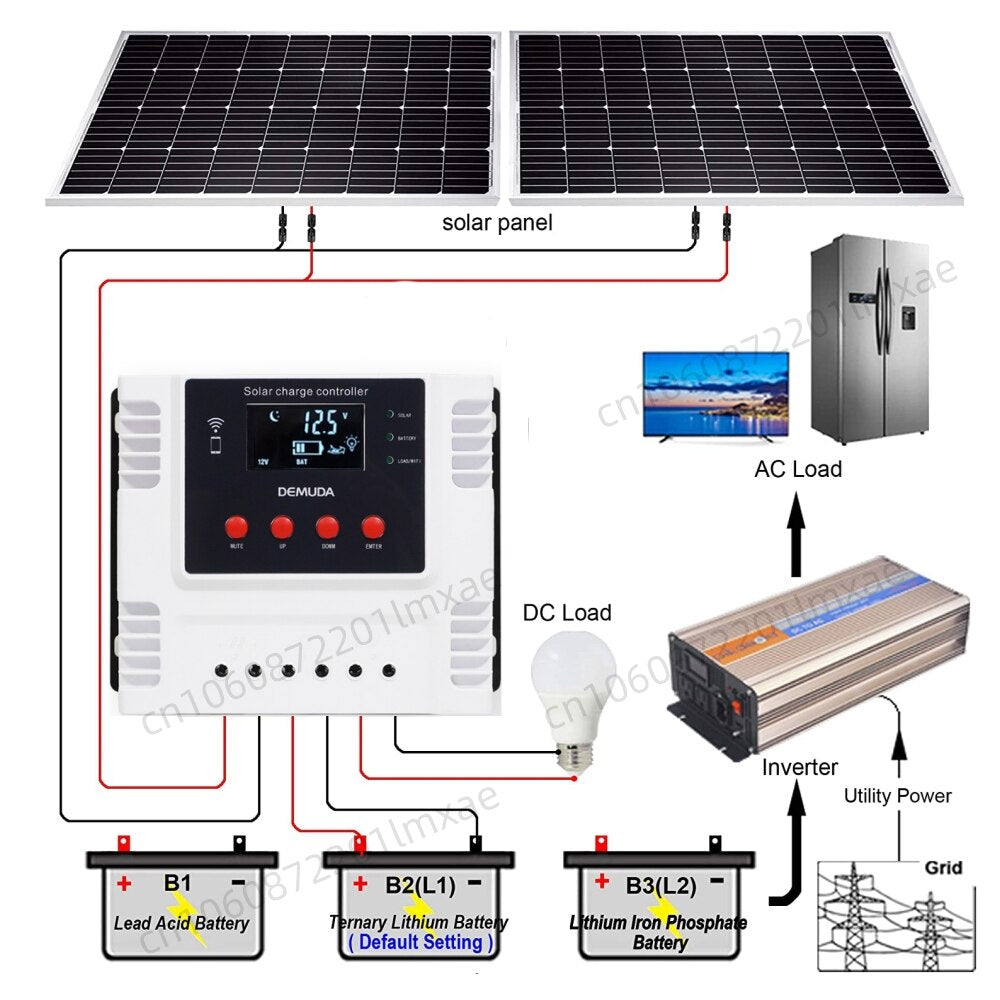

How to connect our conroller?


1. Connect the battery to the controller. It is recommended to add an air switch between the controller and the battery to protect the controller and the battery. When the controller is connected to the battery, the LCD screen will display the parameters, and then set the battery type.

2. If you need DC output to control the load, set the output control mode first, and then turn on the DC output disconnect switch.

3. Connect the solar panel PV to the controller, if the PV input voltage is at the controller’s

Within the charging working range, the controller will enter the charging state.

4. It is recommended that the controller add an air switch to the battery, solar panel and load to play a protective role.


5. Size :

10/20A: 115*145*57mm

30/40A: 135*170*70mm

50/60A: 155*197*86mm

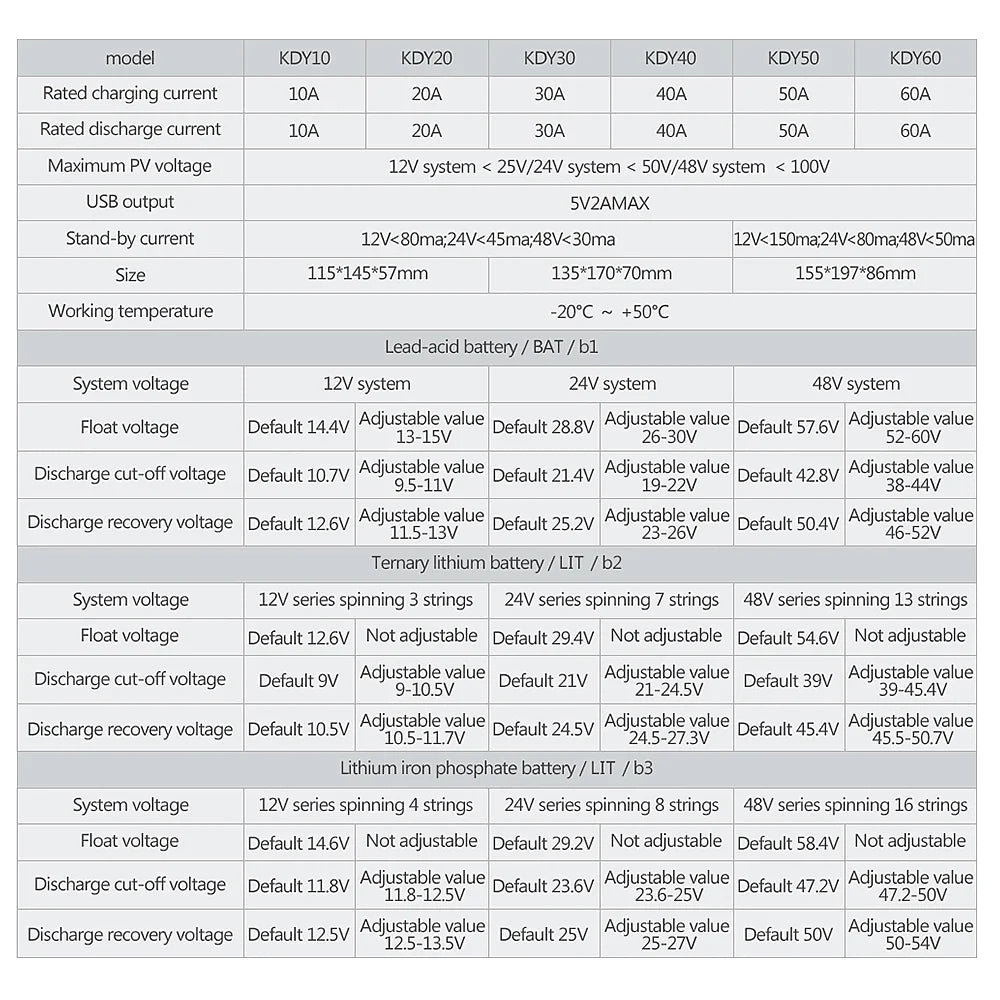

Product parameters


Model

KDY10

KDY20

KDY30

KDY40

KDY50

KDY60

Rated charging current

10A

20A

30A

40A

50A

60A

Rated discharge current

10A

20A

30A

40A

50A

60A

MAX PV Volt

12V system <25V/24V system <50V/48V system <100V

The USB output

5V2AMAX

Stand-by Curent

12V< 80ma, 24V< 45ma, 48V< 30ma

12V< 80ma, 24V< 45ma, 48V< 30ma

12V< 150ma, 24V< 80ma, 48V < 50ma

Dimensions

115*145*57mm

135*170*70mm

155*197*86mm

Work Temperature

-20℃~+50℃

Lead-acid battery /BAT/ B1

System Volt

12V system

24Vsystem

48Vsystem

Float charging Volt

Default 14.4V

adjustable range
13-15V

Defaut 28.8V

adjustable range
26-30V

Defaut 57.6V

adjustable range
52-60V

Discharge cut-off Volt

Default 10.7V

adjustable range
9.5-11V

Dofaut 21.4V

adjustable range
19-22V

Defaut 42.8V

adjustable range
38-44V

Discharge recovery Volt

Defaut 12.6V

adjustable range
11.5-13V

Defaut 25.2V

adjustable range
23-26V

Defaut 50.4V

adjustable range
46-52V

Ternary lithium battery /LIT1/ B2

System Volt

12V system 3 strings

24V system 7 strings

48V system 13 strings

Float charging Volt

Defaut 12.6V

Unadjustable

Defaultl 29.4V

Unadjustable

Default 54.6V

Unadjustable

Discharge cut-off Volt

Defaut 9V

adjustable range
9-10.5v

Detfault21V

adjustable range
21-24.5V

Default 39V

Adlustable range
39-45.4

Discharge recovery Volt

Defaut 10.5V

adjustable range
10.5-11.7v

Default24. 5V

adjustable range
24.5-27.3V

Defaut 45.4V

Adjustable range
45.5-50.7V

Lithium iron phosphate battery /LIT2/ B3

System Volt

12V system 3 strings

24V system 7 strings

48V system 13 strings

Float charging Volt

Defult 14.6V

Unadjustable

Default 29.2V

Unadustable

Default 58.4V

Unaqustable

Discharge cut-off Volt

Detaut 11.8V

Adjustable range
11.8-12.5V

Default 23.6V

Adjustable range
23.6-25V

Detaut. 47.2V

Adustable range
47.2-50V

Discharge recovery Volt

Default 12.5V

Adyustabie range
12.5-13.5V

Defaut 25V

Adjustable range
25-27V

Default 50V

Adjustable range
50-54V


WiFi APP Control Solar Charge Controller, Solar charge controller for LiFePO4, Lead-Acid, and Lithium batteries with adjustable settings.

Introducing the WiFi APP Control Solar Charge Controller, suitable for LiFePO4, Lead-Acid, and Lithium batteries. Features include adjustable charging/discharging currents (10A-60A), maximum PV voltage (12V-48V), USB output, and standby current (<80mA). Operating temperature range is 20°C to +50°C. Adjustable parameters include float voltage (13-15V/26-30V/52-60V), discharge cut-off voltage (9-10.5V/21-24.5V/39-45.4V), and recovery voltage (10.5-11.7V/45.5-50.7V). Dimensions: 115x145x57mm to 155x197x86mm. Works with various battery types.

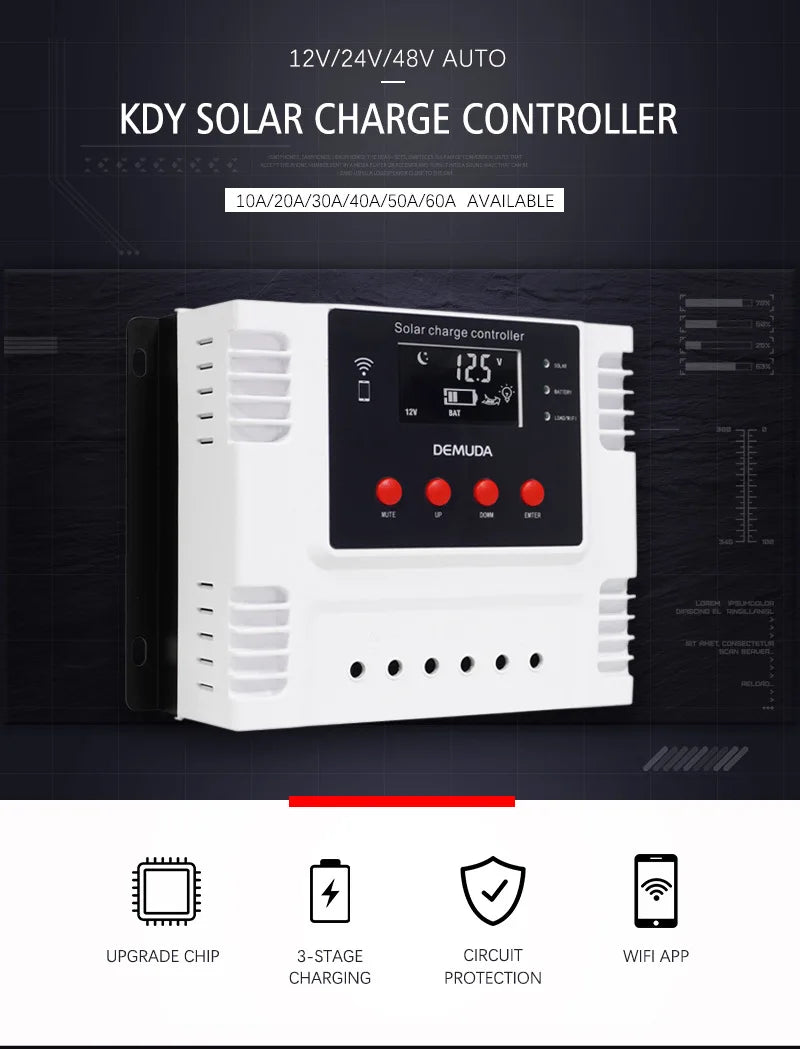

WiFi APP Control Solar Charge Controller, Solar charge controller with Wi-Fi app control, protection from overcharging/discharge/heating, and upgrade chip for reliability.

12V, 24V, and 48V solar charge controller with 10A, 30A, 40A, 50A, or 60A charging capacity. It features a Wi-Fi APP control system, including protection against overcharge, over-discharge, and overheating. Upgrade chip technology ensures reliable performance and efficient charging.

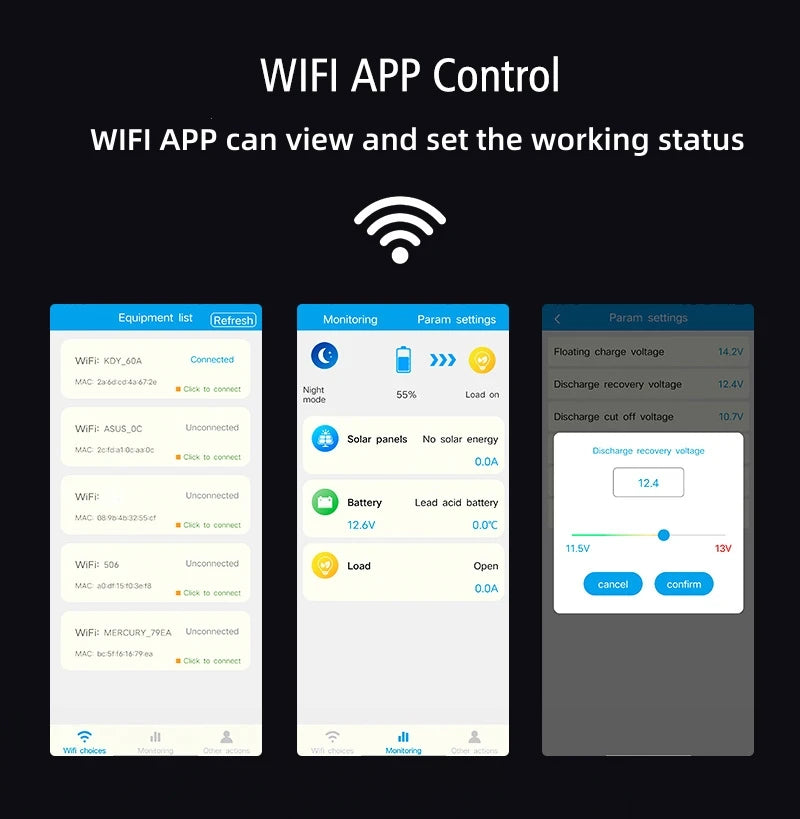

WiFi APP Control Solar Charge Controller, Monitor and control solar panel settings with WiFi APP Control: adjust parameters and monitor performance.

The WiFi APP Control allows you to monitor and adjust the solar charge controller's settings, including equipment lists, parameter settings, floating charge voltage (14.2V), discharge recovery voltage (12.4V), night mode, load current, and discharge cut-off voltage (10V).

WiFi APP Control Solar Charge Controller, High-performance charging system for multiple battery types.

Upgrades 3-phase PWM charging for lead-acid, lithium iron phosphate, and lithium batteries.

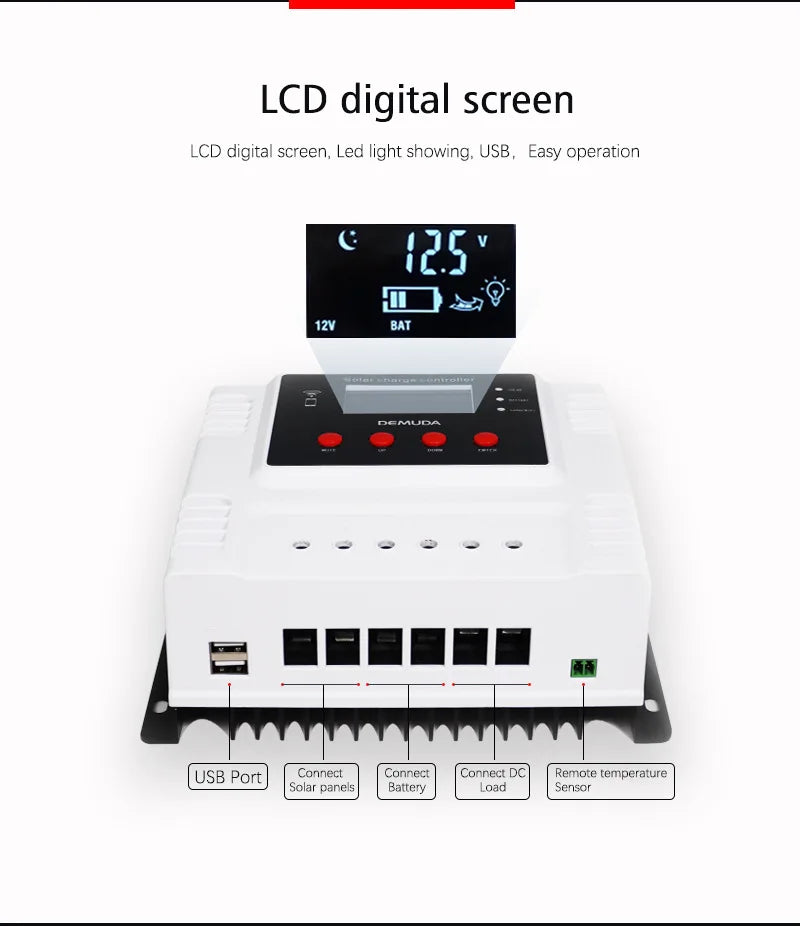

WiFi APP Control Solar Charge Controller, Solar-powered system accessories with LCD display, LED lights, USB connectivity, and sensors for correct charging/discharging.

Features an LCD digital display, LED lights, and easy USB connectivity. The battery load sensor and remote temperature monitoring ensure correct charging and discharging for your solar-powered system.

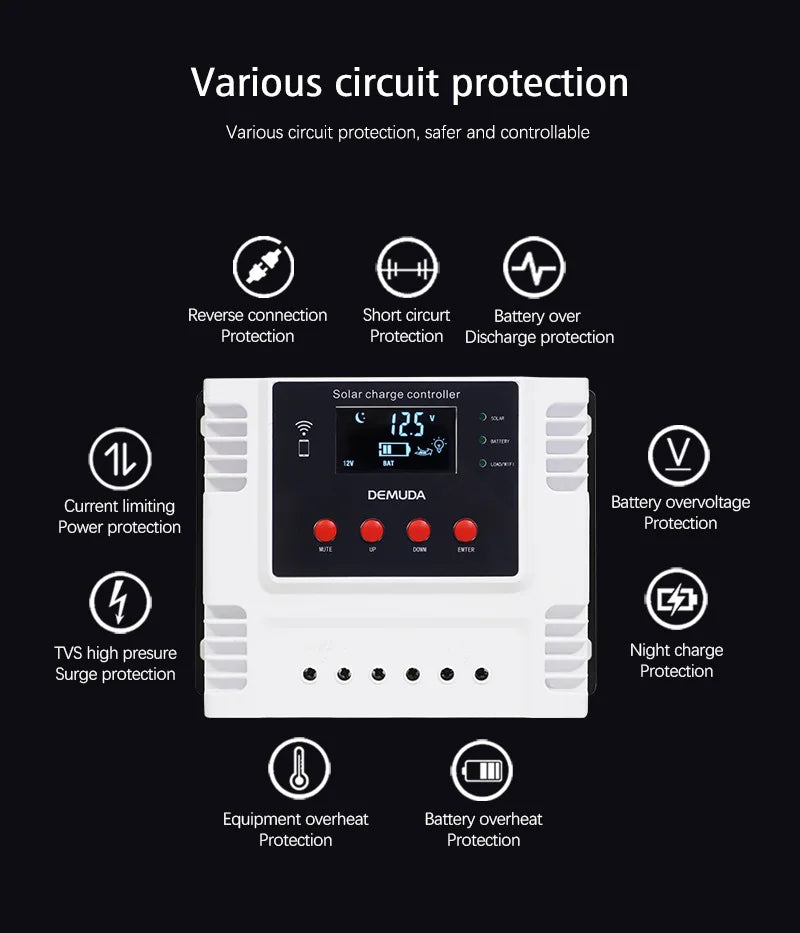

WiFi APP Control Solar Charge Controller, Solar charge controller with safety protections: reverse current prevention, short-circuit protection, overload, overcharge, discharge, overheating, surge, and TVS.

This WiFi-controlled solar charge controller features various safety protections, including reverse current prevention, short-circuit protection, and overload protection. It also offers battery overcharge, discharge, and overheating protection, as well as surge protection and TVS high-pressure protection.

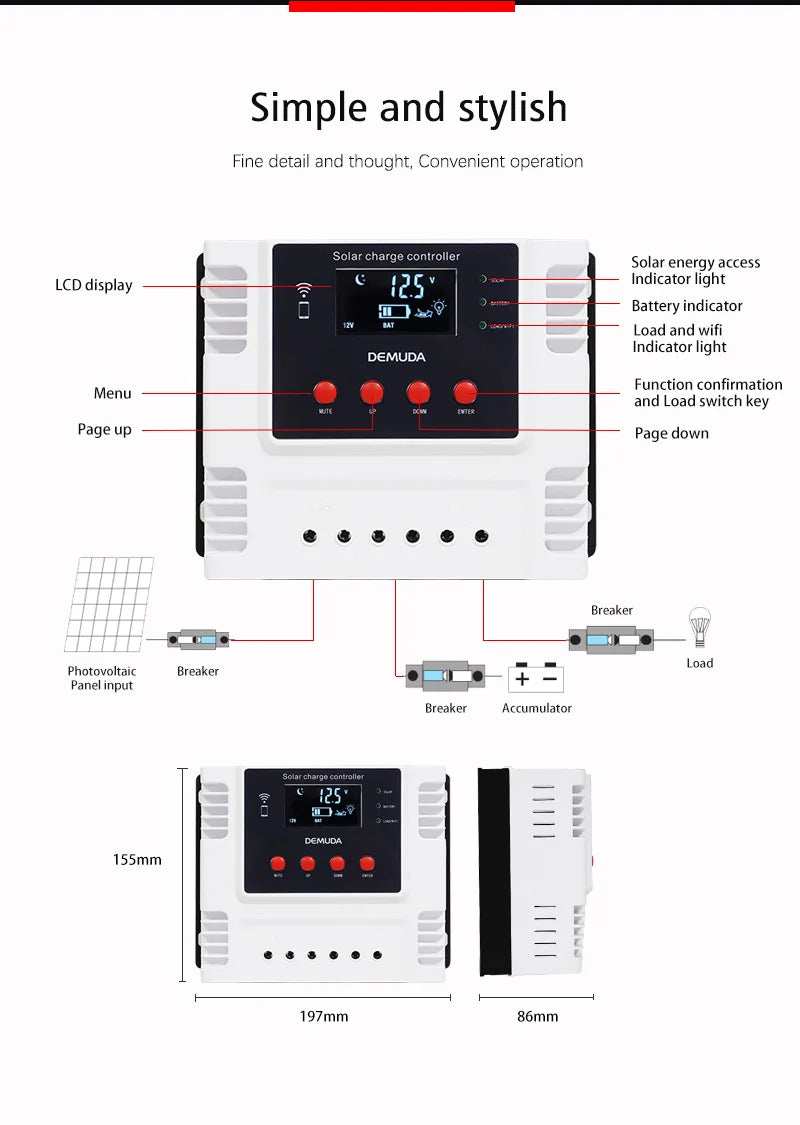

WiFi APP Control Solar Charge Controller, Control solar energy system remotely with WiFi app featuring LCD display and indicator lights.

Control your solar energy system with ease. This WiFi APP control solar charge controller features a simple and stylish design, with fine details and thoughtful touches. Enjoy convenient operation with an LCD display, indicator lights for battery status and load levels, and a menu-driven interface.

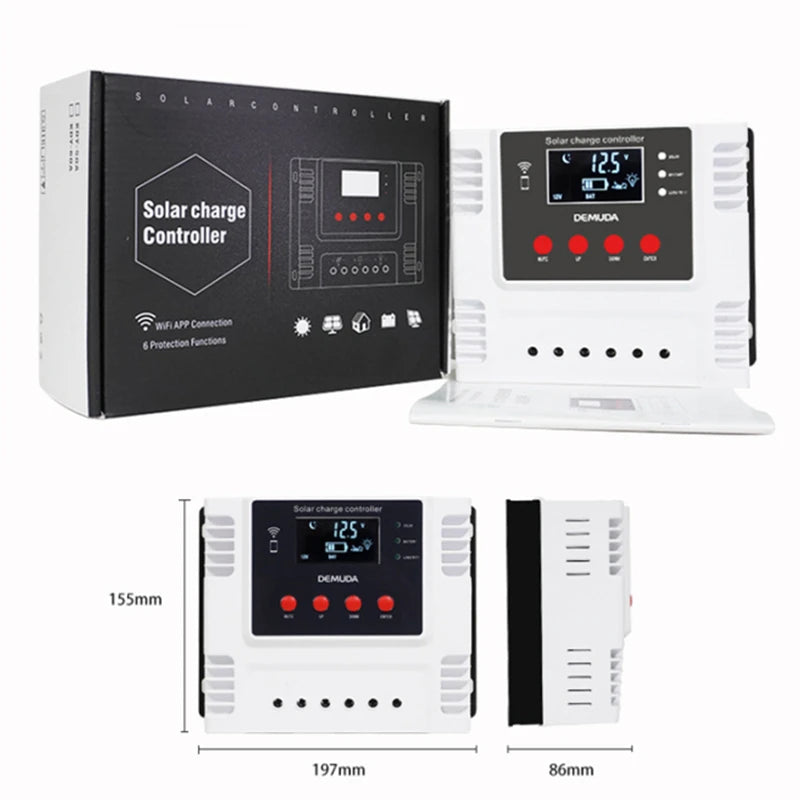

WiFi APP Control Solar Charge Controller, Solar charger controller for various battery types (up to 12V/24V/48V) in a waterproof and vented design.

Vented, waterproof solar charger controller with dimensions 125 x 197 x 86 mm for charging lead-acid, lithium-ion, and LiFePO4 batteries up to 12V/24V/48V.

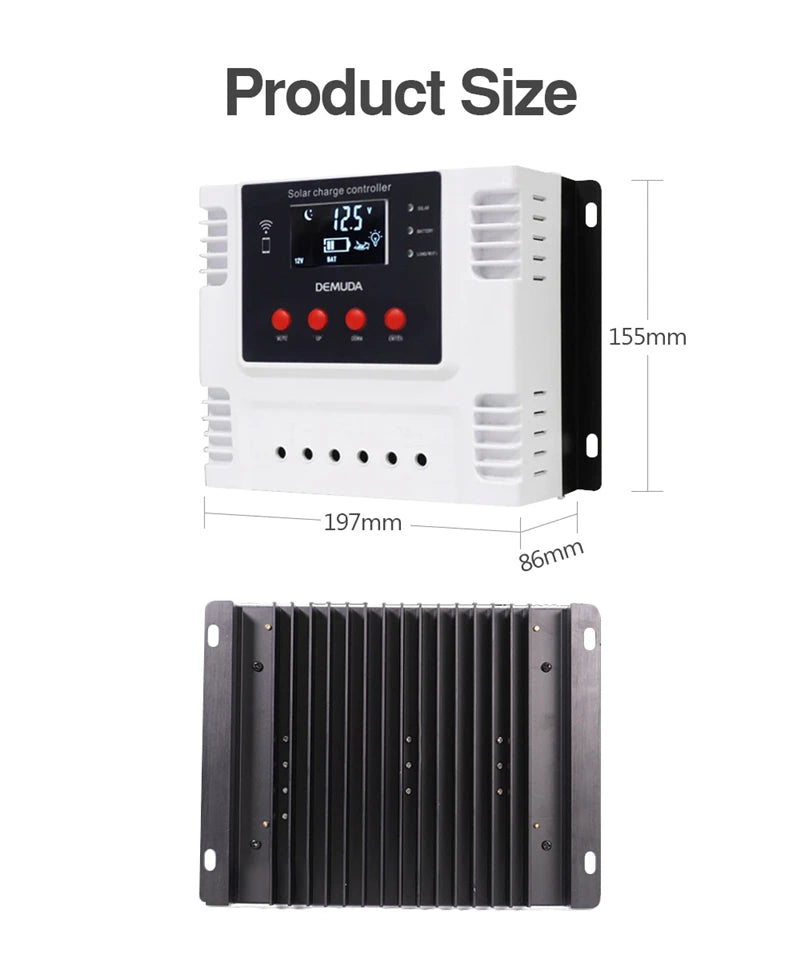

WiFi APP Control Solar Charge Controller, Small and easy to use, this compact device is simple to install and operate.

Compact size: 155mm x 197mm x 86mm. Easy to install and use.

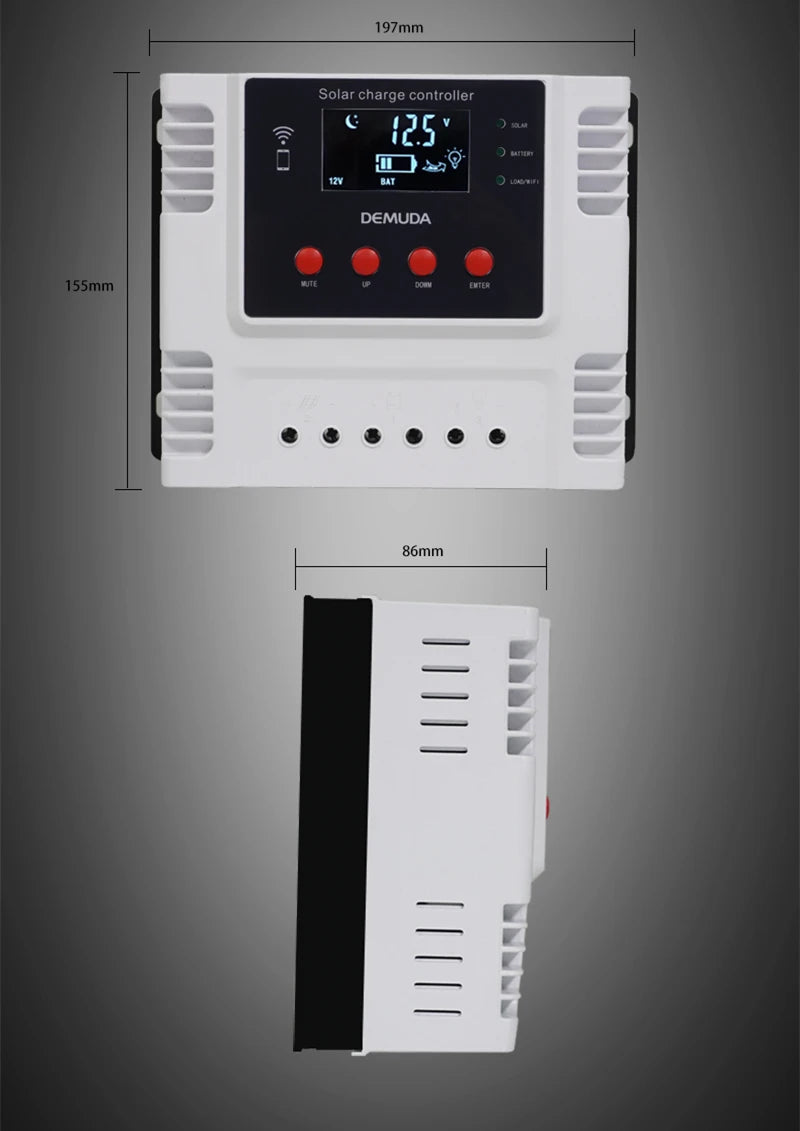

WiFi APP Control Solar Charge Controller, Demuda solar charge controller, 197mm long, measures 155mm x 86mm.

Solar Charge Controller: Demuda brand, 197mm in length, with dimensions of 155mm x 86mm.

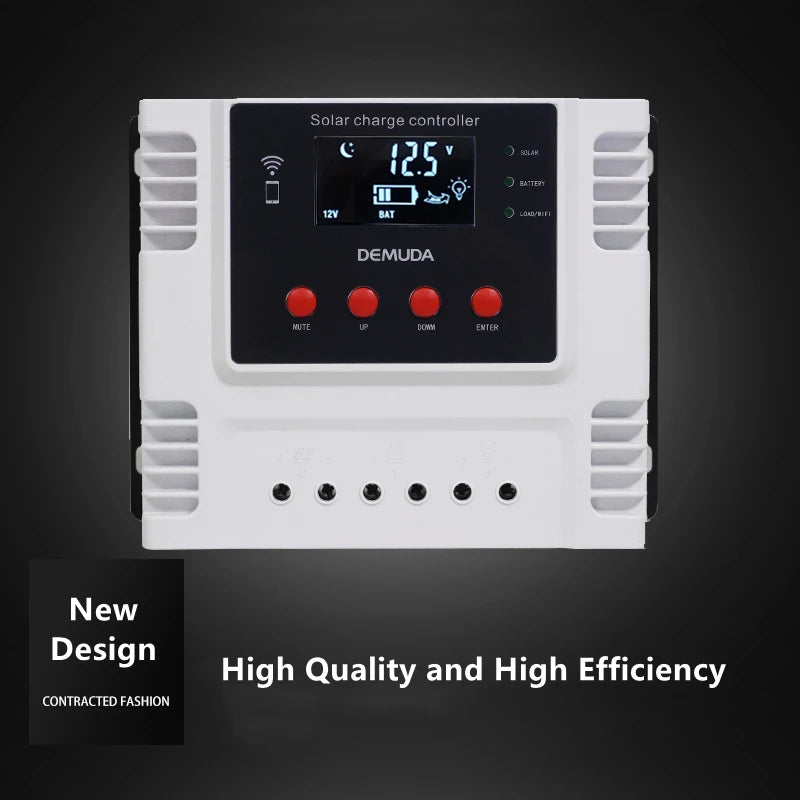

WiFi APP Control Solar Charge Controller, Solar charge controller for LiFePO4, lead-acid, and lithium batteries with high-quality and efficient design.

High-quality solar charge controller with efficient design for charging LiFePO4, lead-acid, or lithium batteries.

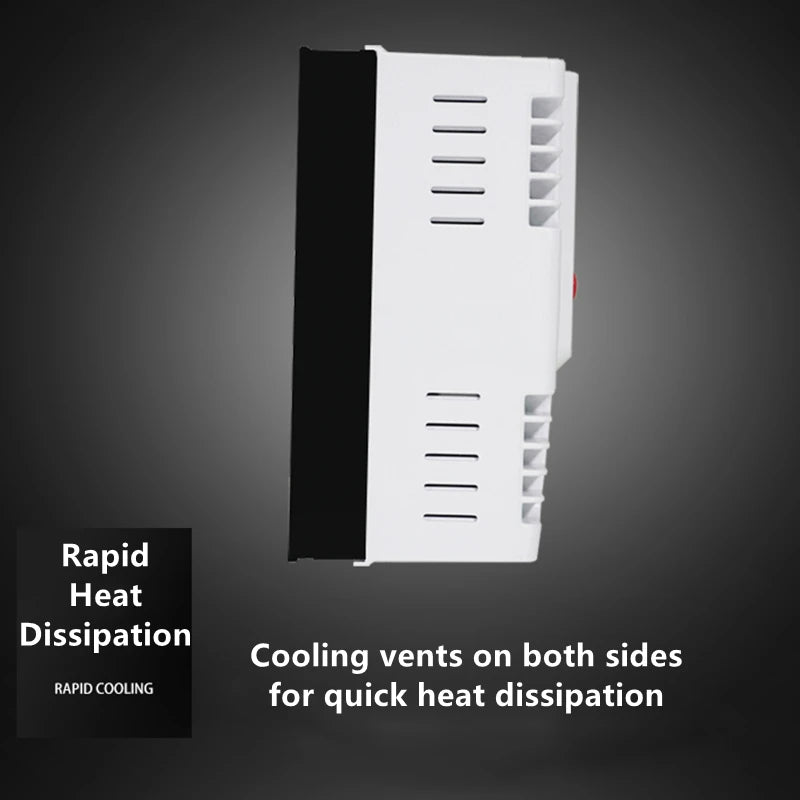

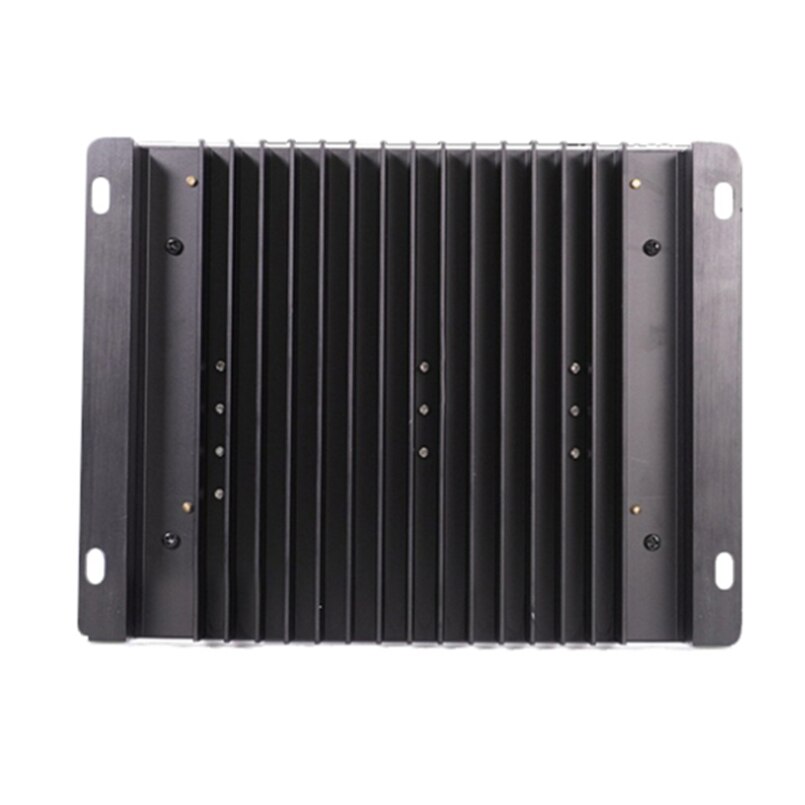

WiFi APP Control Solar Charge Controller, Features rapid heat dissipation with cooling vents on both sides for efficient temperature management.

Features rapid heat dissipation with cooling vents on both sides for efficient temperature management.

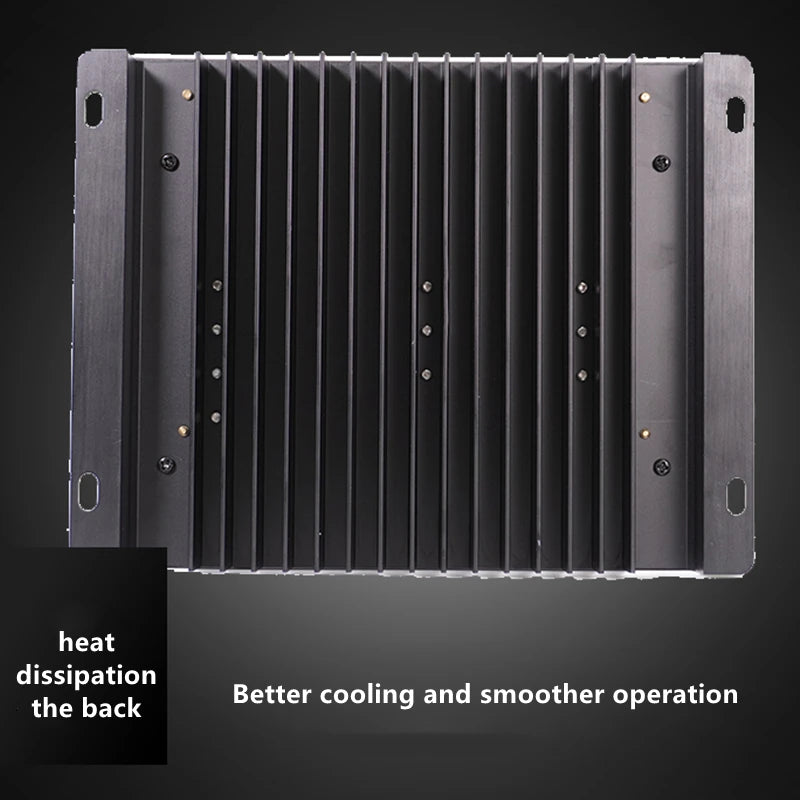

WiFi APP Control Solar Charge Controller, Improved heat dissipation for smoother and cooler operation

Improved heat dissipation for smoother and cooler operation

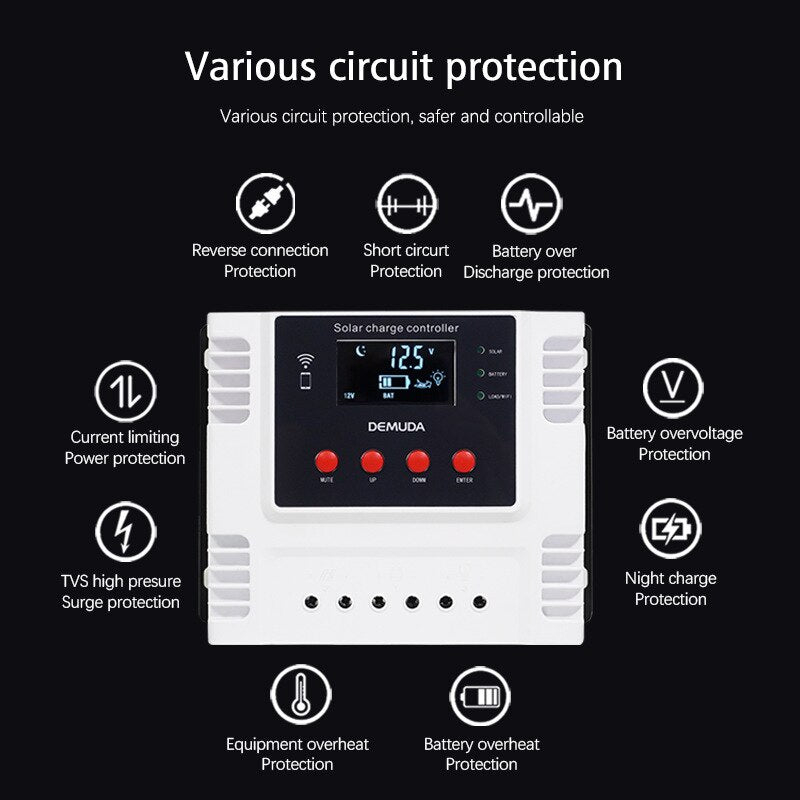

WiFi APP Control Solar Charge Controller, WiFi-enabled solar charger with six protection functions for safe and efficient charging.

WiFi-enabled solar charger with six protection functions for safe and efficient charging.

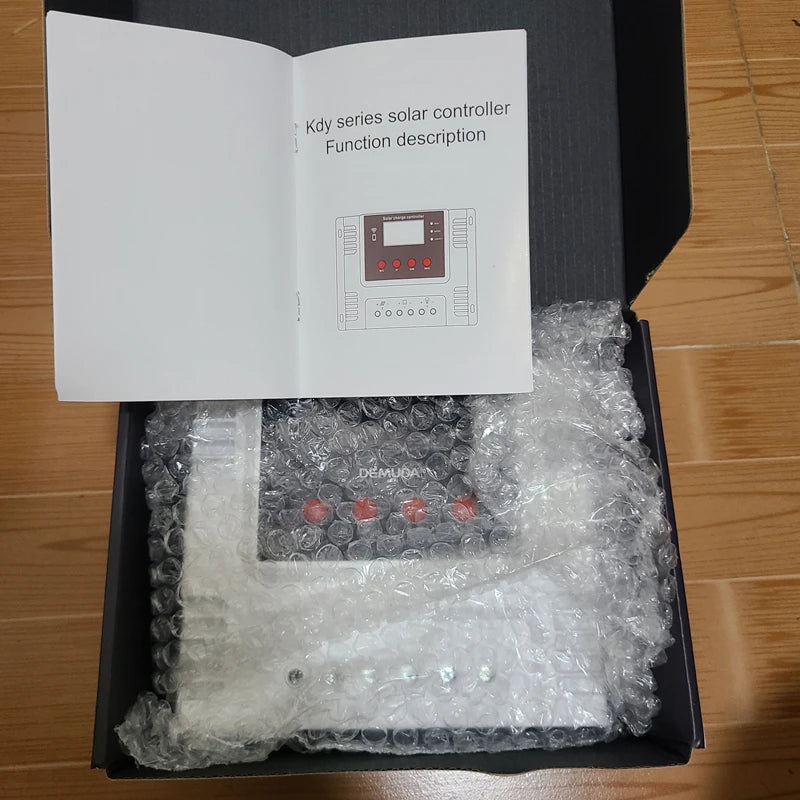

WiFi APP Control Solar Charge Controller, Solar charger for batteries with app control and PWM regulation, ideal for high-performance wireless charging.

High-performance WiFi APP-controlled solar charger for LiFePO4/Lead-Acid/Lithium batteries with PWM regulation.

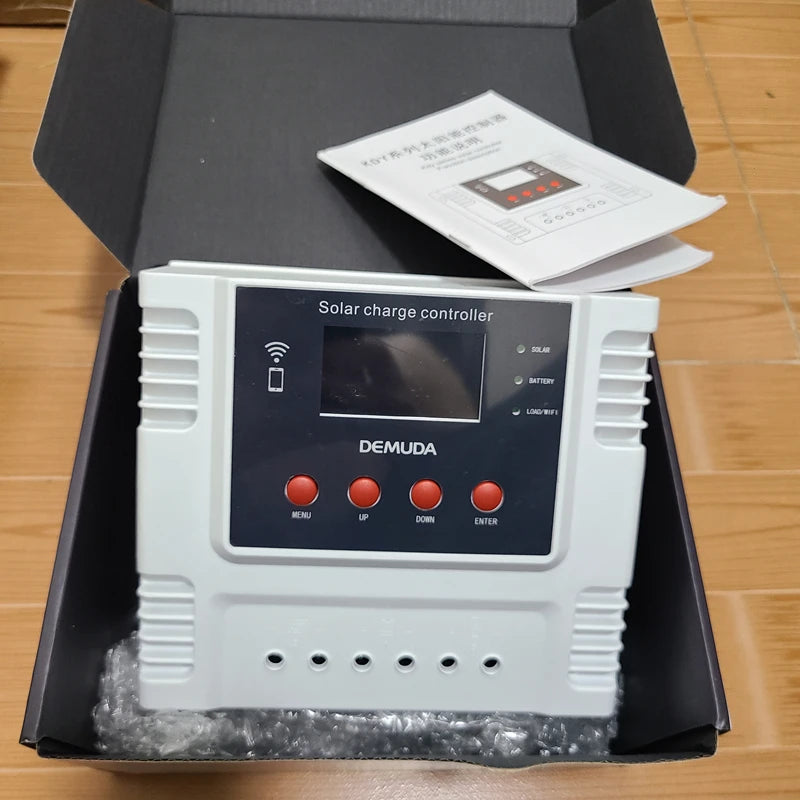

WiFi APP Control Solar Charge Controller, EATITT LAITEI DEMUDA FLER Solar Charge Controller for various battery types.

EATITT LAITEI DEMUDA FLER Solar Charge Controller for LiFePO4, Lead-Acid and Lithium Batteries.

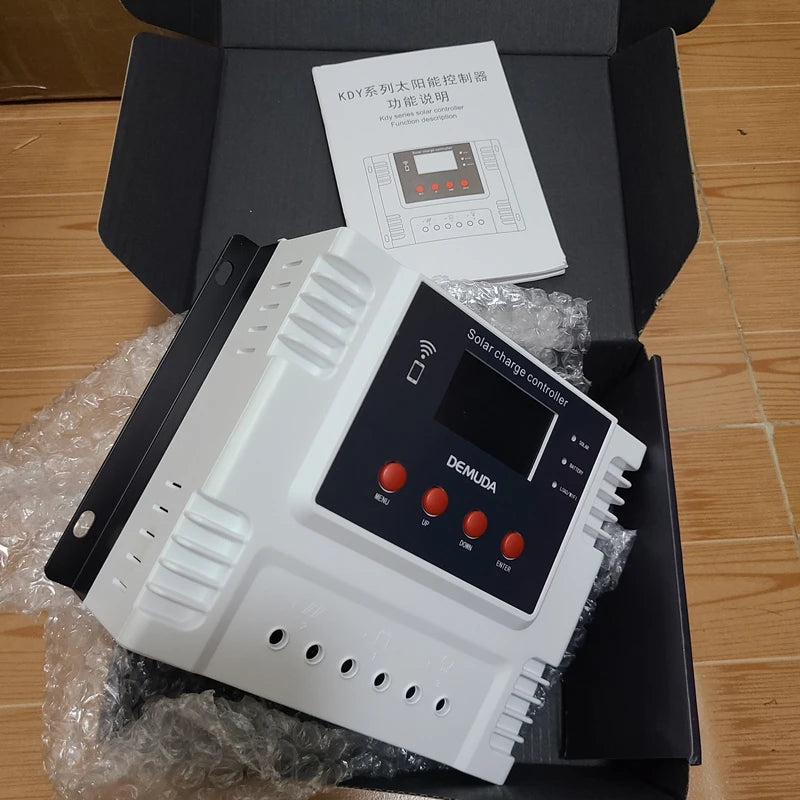

WiFi APP Control Solar Charge Controller, Add air switch between controller and battery to protect components from electrical surges.WiFi APP Control Solar Charge Controller, Wireless controller for solar-charged batteries: adjusts current and compatible with various battery types and voltages.

KDYZ WiFi APP Control Solar Charge Controller: A versatile regulator for LiFePO4, Lead-Acid, and Lithium batteries. It features PWM solar control, adjustable charging current (30A/40A/50A), and compatibility with 12V, 24V, and 48V systems.

WiFi APP Control Solar Charge Controller, Adjustable voltage range for device charging: 47.2-50V, with default settings.

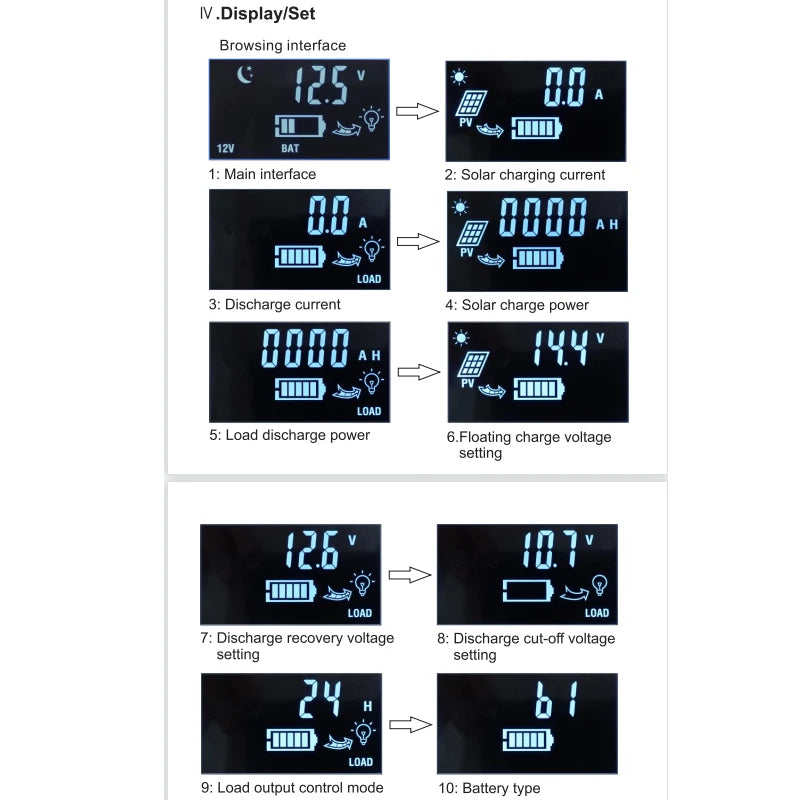

WiFi APP Control Solar Charge Controller, Control interface for WiFi app: Monitor and set battery parameters and settings.

Control interface for WiFi APP: Display and set battery parameters, including solar charging current, load discharge power, floating charge voltage, discharge recovery voltage, and discharge cut-off voltage. Additionally, adjust load output control mode and select battery type (LiFePO4, Lead-Acid, or Lithium).

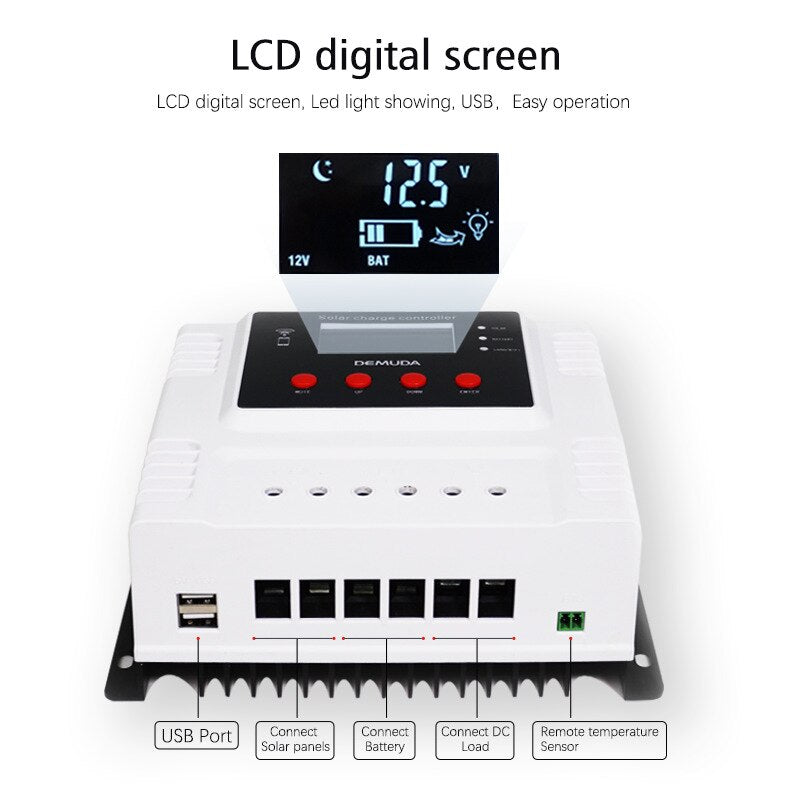

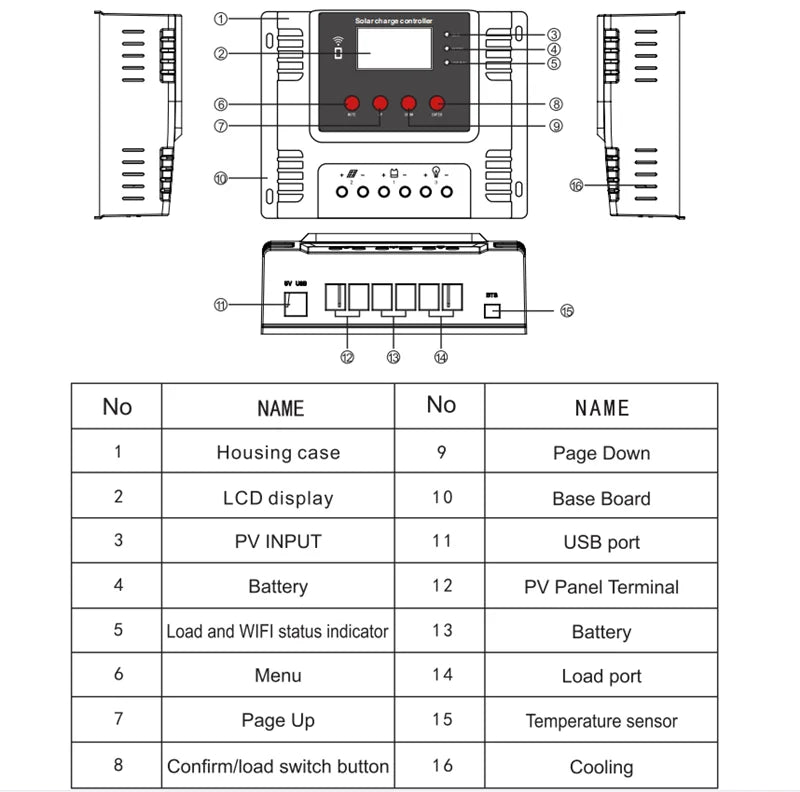

WiFi APP Control Solar Charge Controller, Compact solar charge controller with LCD display, USB, and battery terminals, featuring temperature sensor and navigation buttons.

This solar charge controller features an LCD display, USB interface, and battery terminal. It includes a temperature sensor, load switch button, and cooling port. The housing case has a compact design with page up/down buttons for easy navigation.

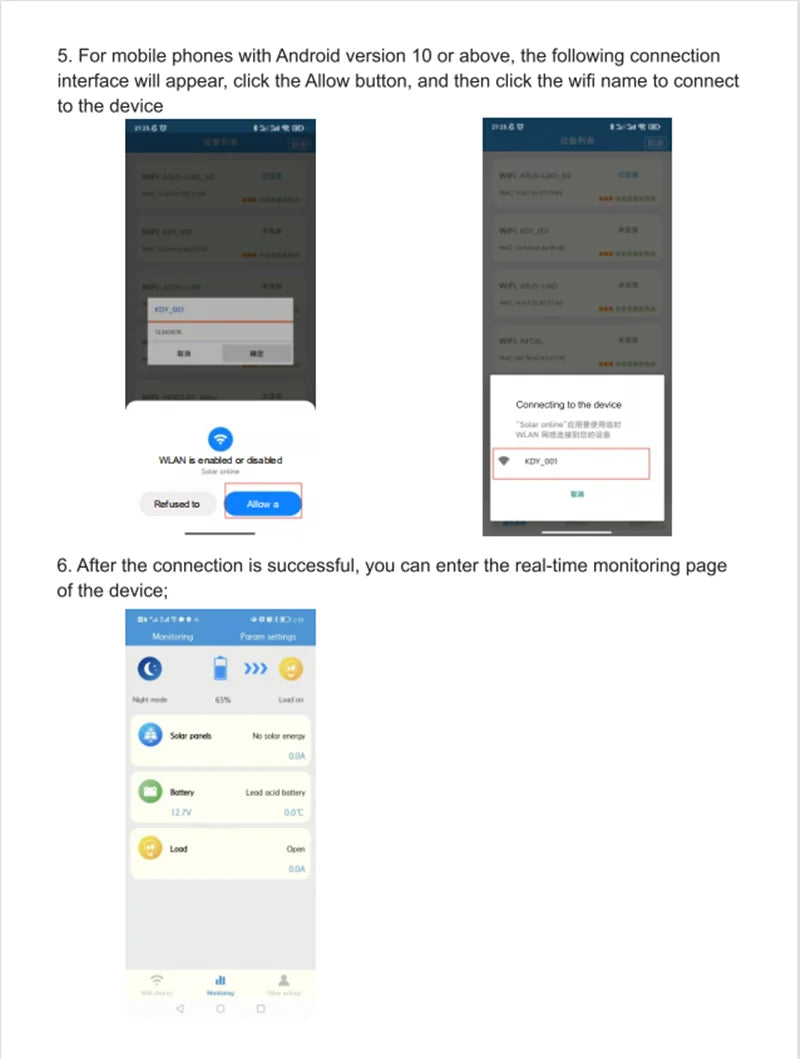

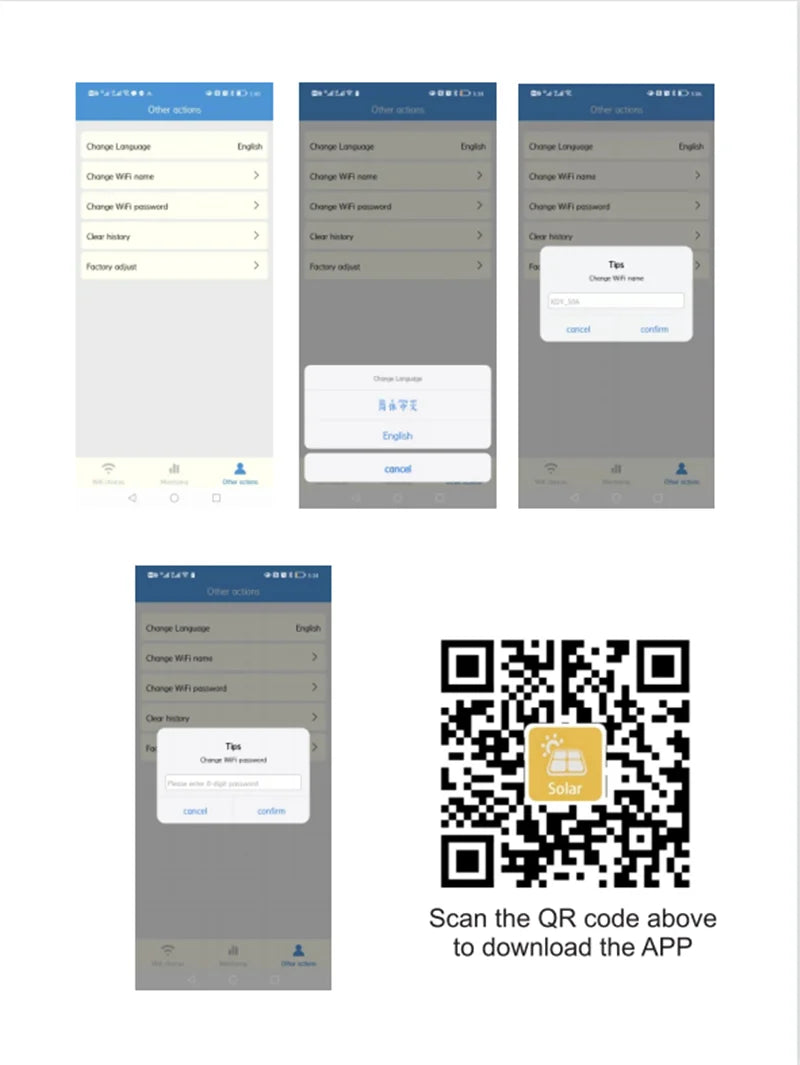

How to Connect WIFI APP

WiFi APP Control Solar Charge Controller, Wirelessly control solar charge controller with KDY app, adjusting voltage and current via phone settings.

To control the solar charge controller via WiFi, open your phone's settings and click on the APP icon. Then, add KDY to the WLAN network (password: 12345678). Once connected, you can adjust parameters such as voltage and current using the app.

WiFi APP Control Solar Charge Controller, Corrected OCR text provides clear and concise information.

**Note:** I've corrected the OCR errors and rephrased the text to make it clear, concise, and grammatically correct.

WiFi APP Control Solar Charge Controller, Wireless solar charge controller with PWM regulation for LiFePO4, lead-acid, and lithium batteries.



WiFi APP Control Solar Charge Controller, Shipping time: 3-90 days, varies by region and custom clearance.

Shipping Time: 3-90 days from China. Please note that delivery times may vary depending on the region and custom clearance.

WiFi APP Control Solar Charge Controller, Customer review praising excellent product, good service, and timely delivery.

Excellent product! I'm pleased with its performance, the seller's service, and timely delivery. Please rate 5 stars if you're satisfied - thank you for your support!
