WiFi Deye 2000W INMETRO VDE IEC Solar Micro Inverter With Limiter 20-60V DC To 184-265VAC MPPT IP67,Ship From EU Brazil US RU

WiFi Deye 2000W INMETRO VDE IEC Solar Micro Inverter With Limiter 20-60V DC To 184-265VAC MPPT IP67,Ship From EU Brazil US RU

Regular price $381.49 USD
Regular price Sale price $381.49 USD
Sale Sold out
Shipping calculated at checkout.
Color
Input Voltage
Output Voltage|Ships From

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Weight: 5.3kg

Static MPPT: 99%

Start-Stop voltage: 20-60V

Size: 40 * 44 * 12CM

Rrequency: 50/60Hz(45~65Hz)

Recommend PV Voc: 33-60V

Rated voltage: @230V(184-265VAC)

Rated output current: @230VAC 9.2A

Rated Output Power: 2000W

Output Type: 230V / 184-265

Output Power: 2112W(Maximum)

Output Frequency: 50/60Hz

Output Current: 9.2A(Maximum)

Origin: Mainland China

Operating temperature: - 40℃ to +65℃

Model Number: SUN2000G3-EU-230

Max units per branch: @230V:4PCS

Max solar panel: 4*600W (max)

Max output Power: 2112W

Max output: 96.5%

Max Input Current: 12.5A*4

MPPT: 25-55V

Is Smart Device: YES

DC short current: 16A*4

Certification: CE,FCC,RoHS

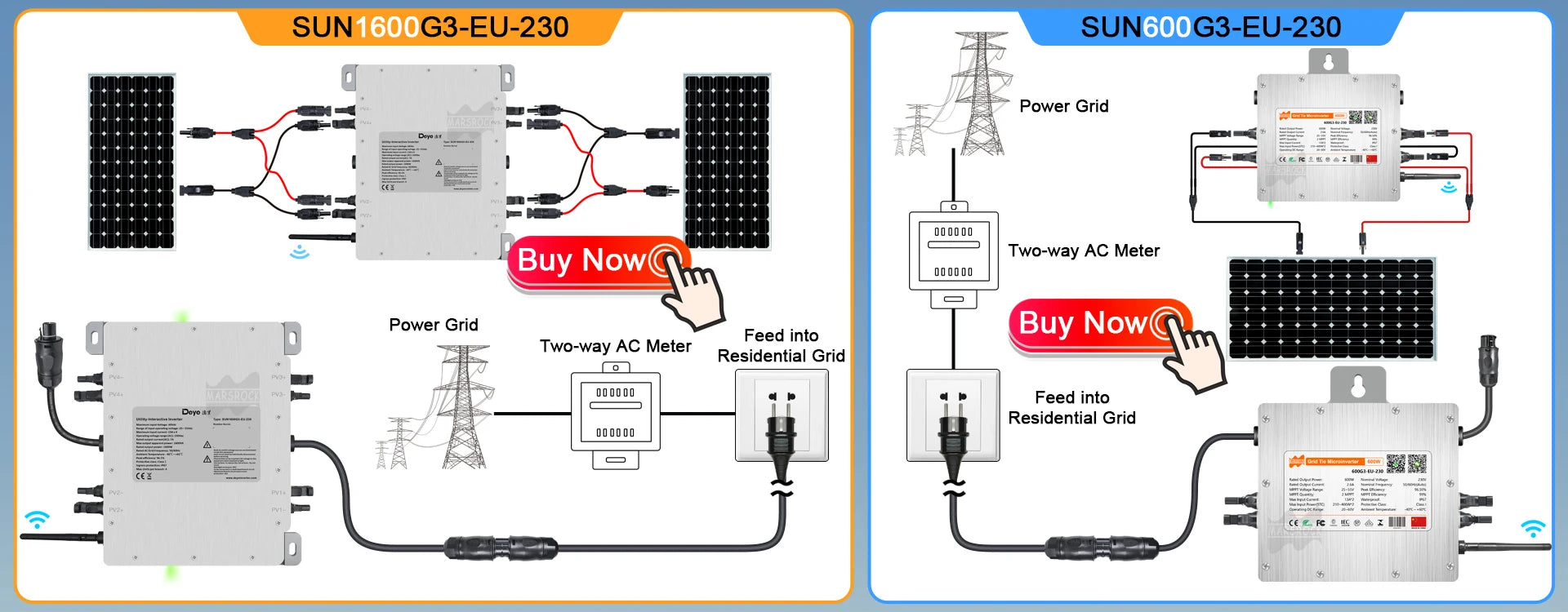

Related Products:

Solar micro inverter with limiter for residential grids, suitable for outdoor use.

WiFi Deye 2000W INMETRO VDE IEC Solar Micro Inverter with Limiter, suitable for residential grids. Converts 20-60V DC to 184-265V AC. IP67 rated for outdoor use. Ships from EU, Brazil, US, and RU.


Product video:













Product Description

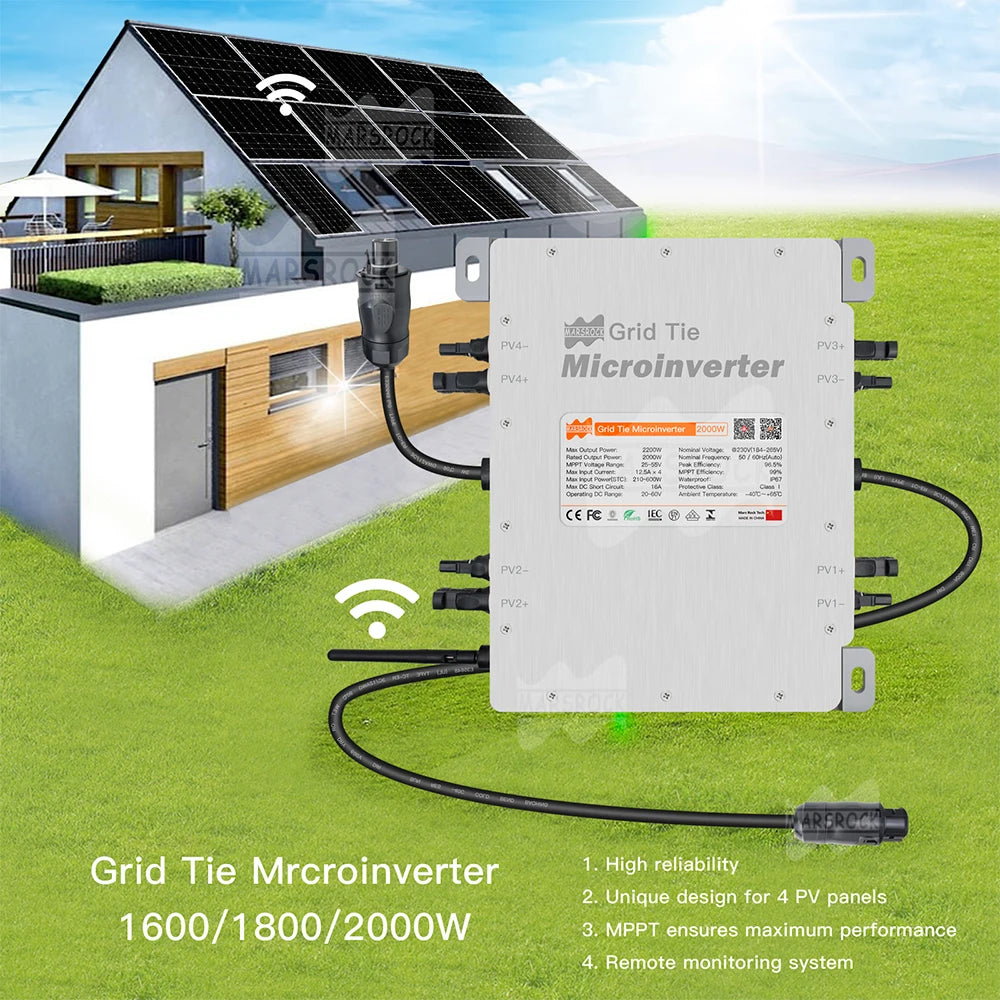

Solar Micro Inverter with Limiter supports up to 4 PV panels, IP67 waterproof, and features remote monitoring.

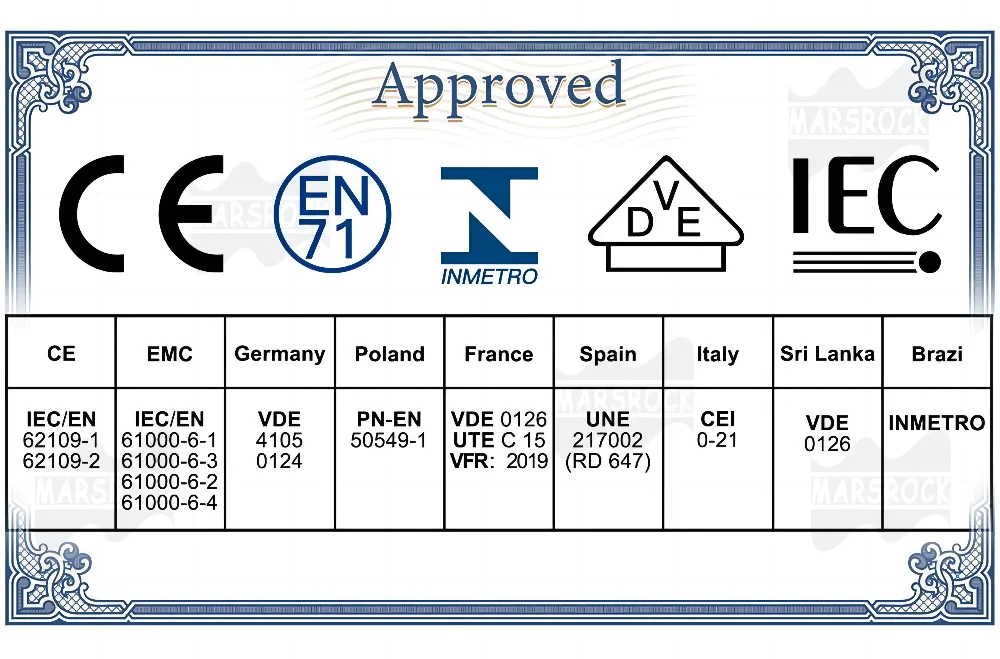

Our 2000W built-in micro inverter has several certificates, such as INMETRO VDE IEC. If you need to contact us via order message
Warning: Do not exceed max microinverter count in AC branch circuit to ensure safe and reliable operation.

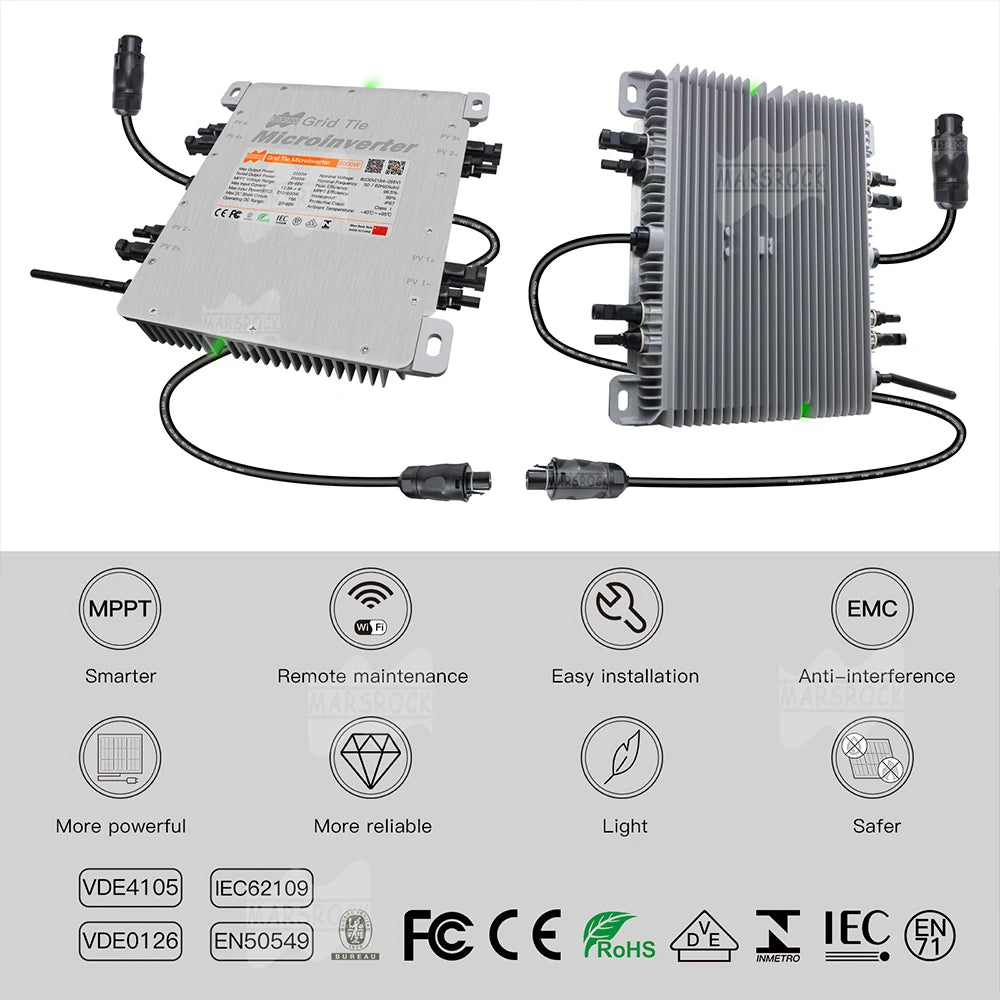

Advanced micro inverter with MPPT, remote maintenance, and IEC62109 compliance.

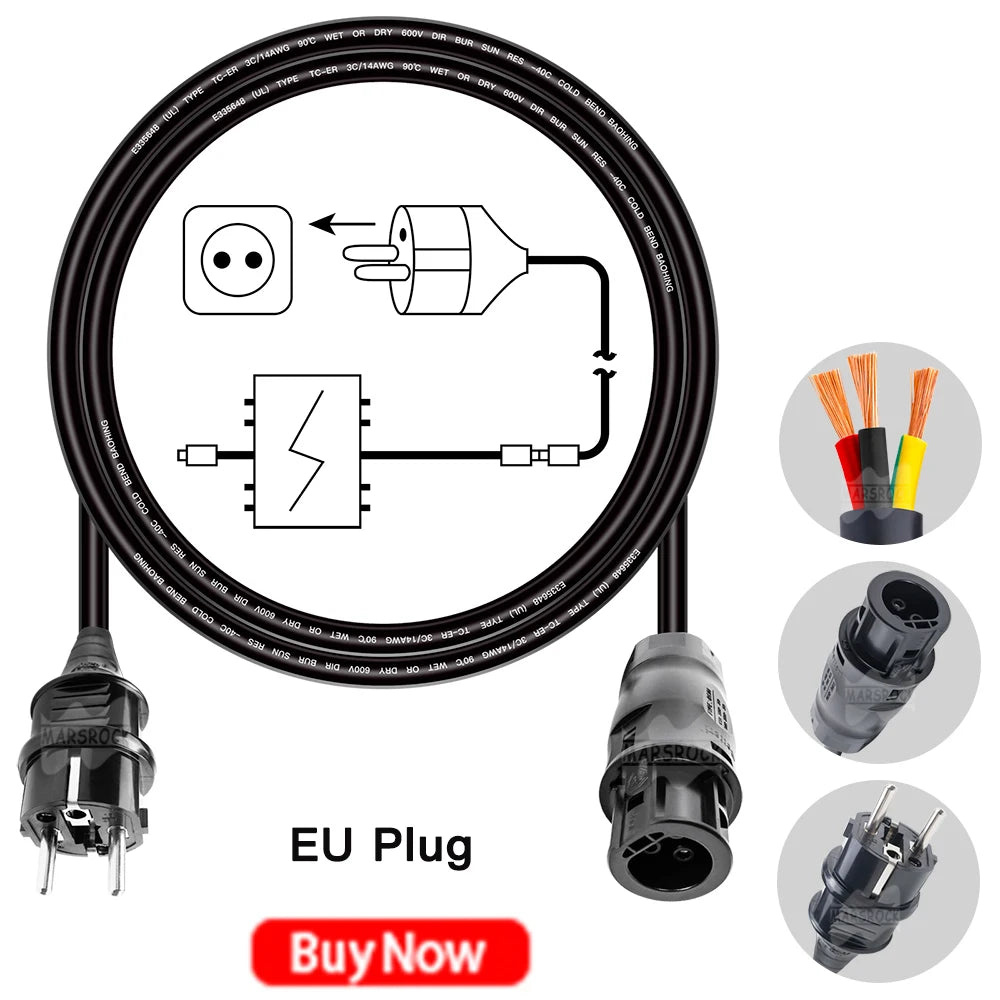

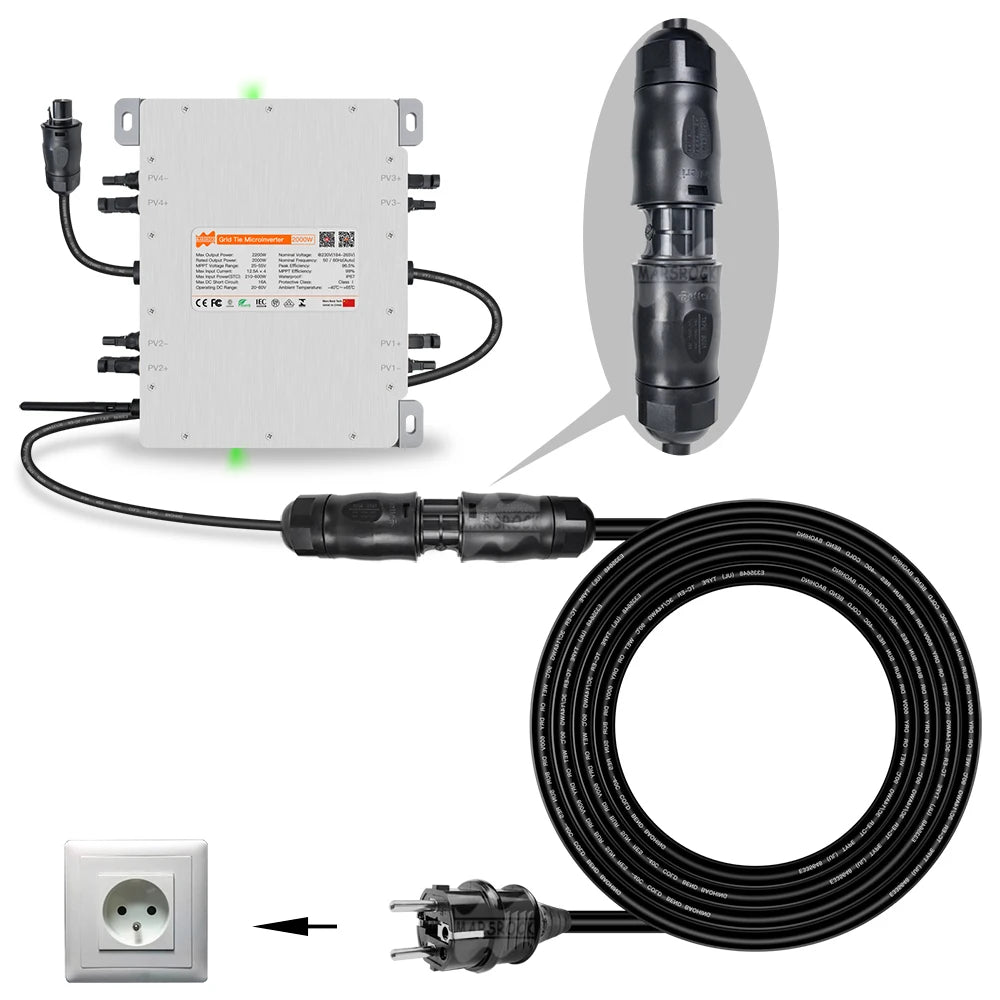

*Attention!! You can click the below Cord picture to buy this high quality AC Power Extension


Red light blinks rapidly 3 times then repeats every 1 second until air conditioner is connected.Connect multiple microinverters in parallel to increase power output and simplify installation.


Product Introduction.

* Rapid shutdown function
* IP67 protection degree, 10 years warranty
* PLC, Zigbee or WIFI communication
* 4 MPP trackers, module level monitoring
* Max. DC input current of 12.5A, adapt to 600W PV module

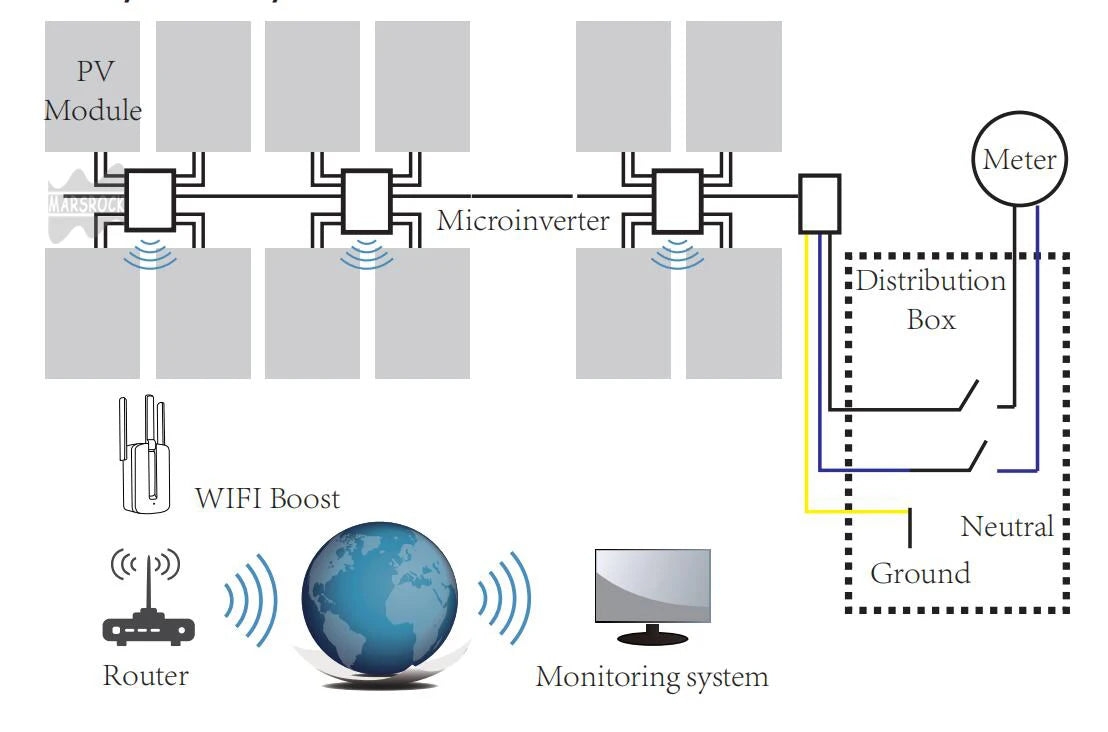

Microinverter System Introduction


The Microinverter is used in utility-interactive grid-tied applications, comprised of two key elements:
* Microinverter
* Router

Monitor solar power system performance with WiFi connectivity.

Note:If the wireless signal in the area where the microinverter is weak, it is necessary to add a wifi signal booster at a suitable place between the router and the microinverter.

This integrated system improves safety; maximizes solar energy harvest;increases system reliability, and simplifies solar system design, installation,maintenance, and management.

Microinverters Maximize PV Energy Production:
Each PV module has individual Maximum Peak Power Tracking (MPPT) controls, which ensures that the maximum power is exported to the utility grid regardless of the performance of the other PV modules in the array.When PV modules in the array are affected by shade, dust, orientation,or any situation in which one module underperforms compared with the other units, the Microinverter ensures top performance from the array by maximizing the performance of each module within the array.

More Reliable than Centralized or String Inverters:
The distributed Microinverter system ensures that no single point of system failure exists across the PV system.Microinverters are designed to operate at full power at ambient outdoor temperatures of up to 149℉ (65℃). The inverter housing is designed for outdoor installation and complies with the IP65 environmental enclosure rating.

Simple to Install:
You can install individual PV modules in any combination of Module quantity, orientation, different type and power rate The Ground wire (PE) of the AC cable is connected to the chassis inside of the Microinverter,potentially eliminating the installation of grounding wire (check local regulation). Data collection adopts internal wifi,wireless router is needed near the microinverter. When complete the installation of microinverter,configure wireless router with internal wifi(refer to the wifi user manual).The data will be uploaded automatically.Users can monitor and manage the microinverter through corresponding website or APP.

Microinverter Introduction:
The Microinverters connect with the single-phase grid, and can also use multiple Micro inverters in the form of single-phase grid to achieve three-phase grid.

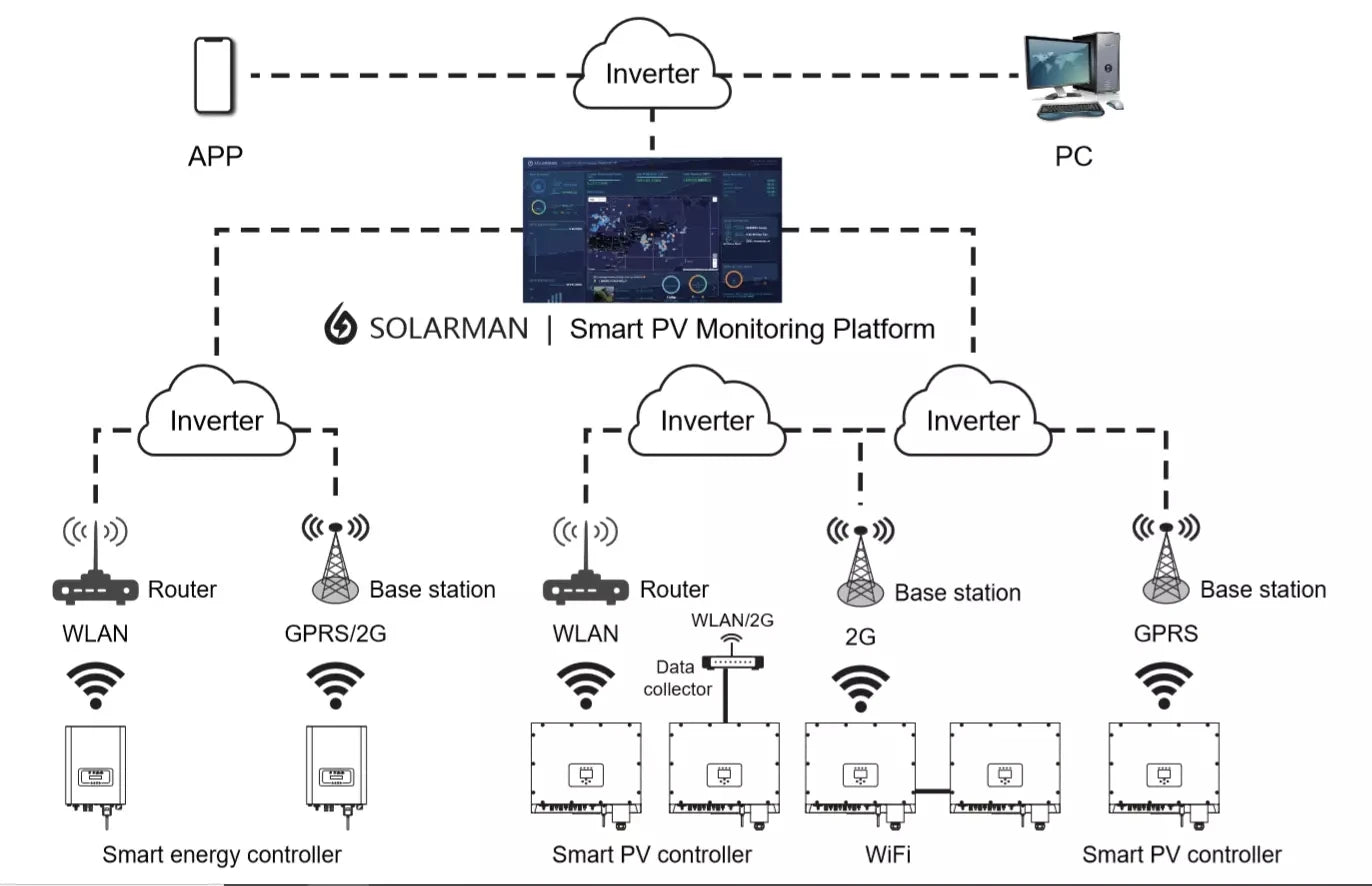

Monitor and control your solar system remotely using the WiFi Deye inverter's smart features.

Control and monitor your solar system with the WiFi Deye inverter's smart features, including APP PC SOLARMAN platform access for real-time monitoring and control, ensuring efficient and safe energy harvesting.


Product Paramenters

Model

2000W

Input Data

Max solar panel

4*600W (max)

Start-Stop voltage

20-60V

Reccommend PV Voc

33-60V

MPPT

25-55V

Max Input Current

12.5A*4

DC short current

16A*4

Output Data

Rated Output Power

2000W

Max output Power

2112W

Rated output current

@230VAC 9.2A

Rated voltage

@230V(184-265VAC)

Max units per branch

@230V:4PCS

Rrequency

50/60Hz(45~65Hz)

Output Efficiency

Static MPPT

99.00%

CEC Weighted Efficiency

95%

Max output

96.5%

Self consumption

50mW

THD

<3%

Exterior

Ambient temperature

- 40℃ to +80℃

Operating temperature

- 40℃to +65℃

Dimensions(L×W×H)

267×300×42.5 mm (Without mounting bracket and cable)

Net Weight(KGS)

5.3

Waterproof Rating

IP67

Cooling

Self-cooling

Feature


Compatibility

Compatible with 60~72 cell PV modules

Communication

Power line / WIFI/Zigbee

Monitoring System

Lifetime free

Electromagnetic compatibility

EN50081.part1EN50082.part1

Grid disturbance

EN61000-3-2 Safety EN62109

Grid detection

DIN VDE 1026 UL1741

Certificate

UL1741、VDE0126、VDE4105、IEC62109、CE、INMETRO


Details Images

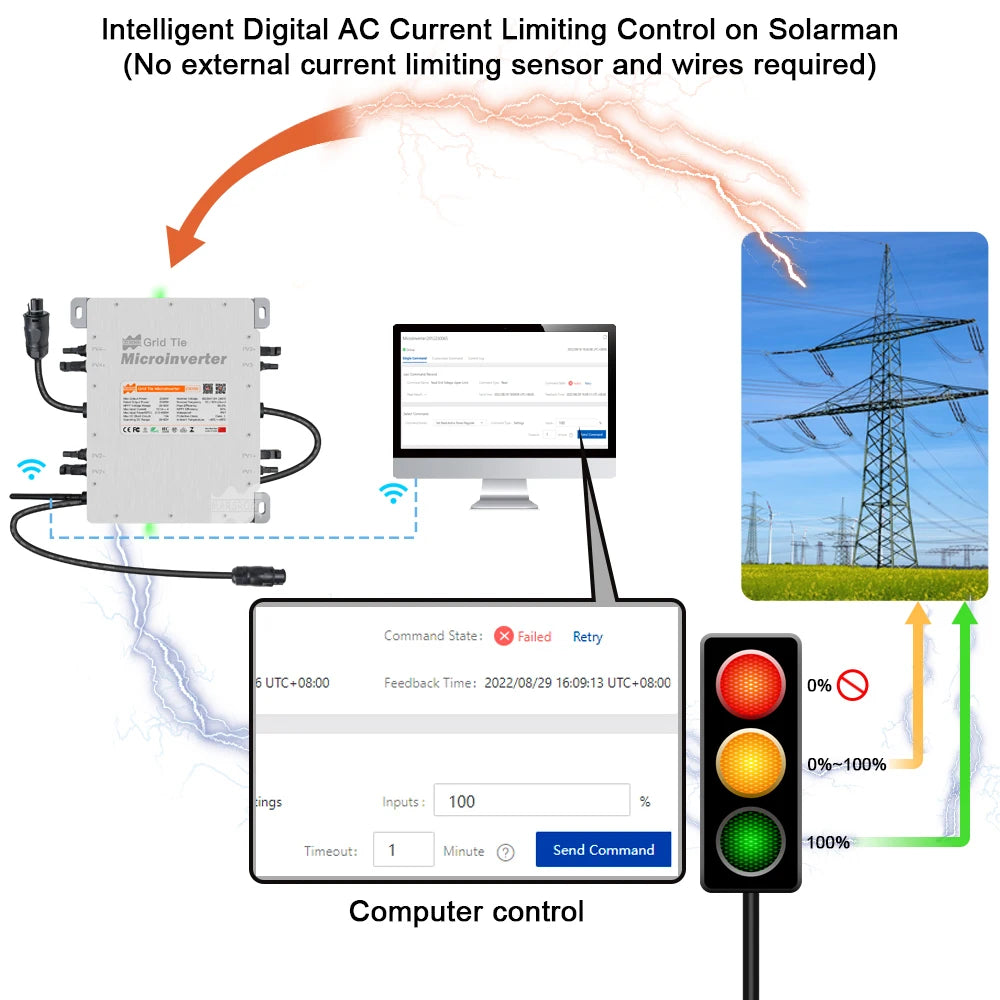

Smart Micro Inverter with built-in current limiting control for efficient energy harvesting.

Smart Micro Inverter with built-in current limiting control, eliminating external sensors and wires. Grid Tie technology enables efficient energy harvesting. The device operates in failed mode when commanded (UTC +08:00). Feedback and command retries are processed every minute. This intelligent system ensures seamless solar power conversion and grid synchronization.

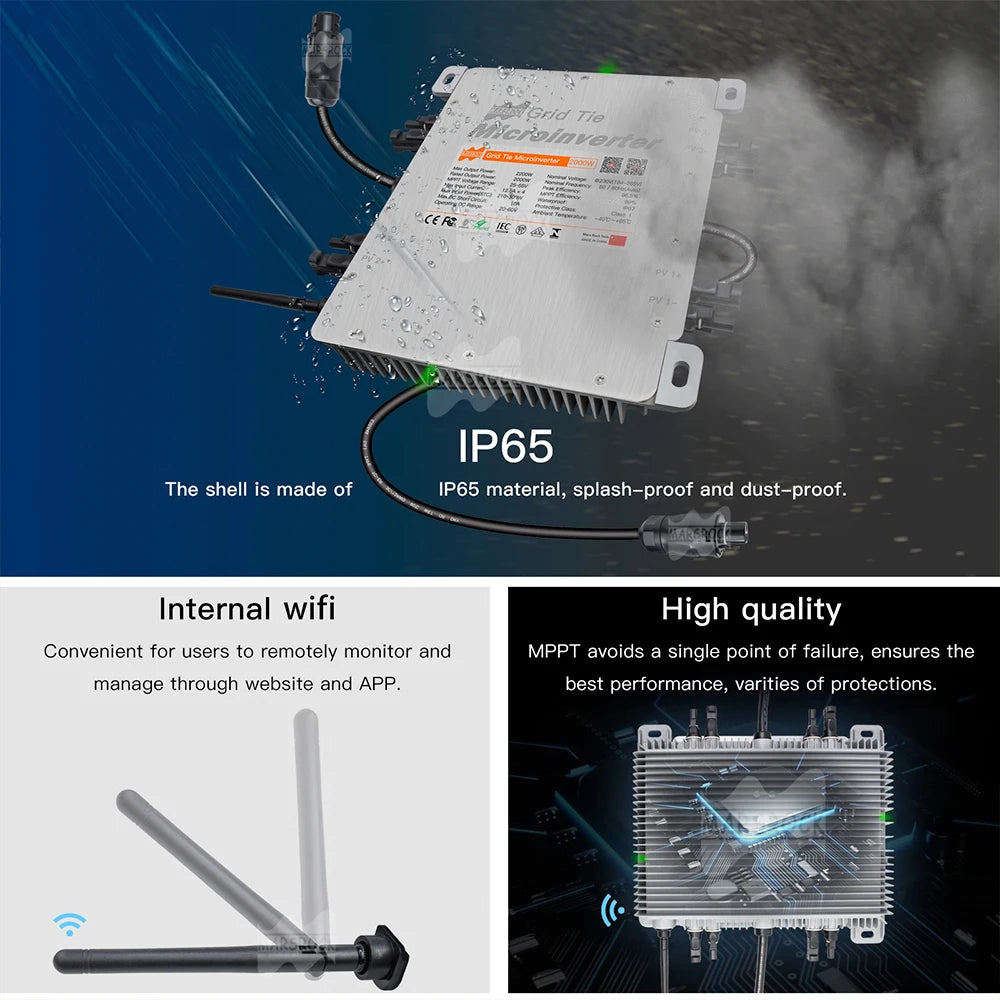

Grid-tie inverter with IP65 protection, internal WiFi, and MPPT technology for remote monitoring and control.

This grid-tie inverter features IP65 protection, ensuring splash-proof and dust-proof durability. Equipped with internal WiFi, users can remotely monitor and control via a mobile app. Additionally, MPPT technology prevents single-point failures, providing optimal performance while offering various protections.

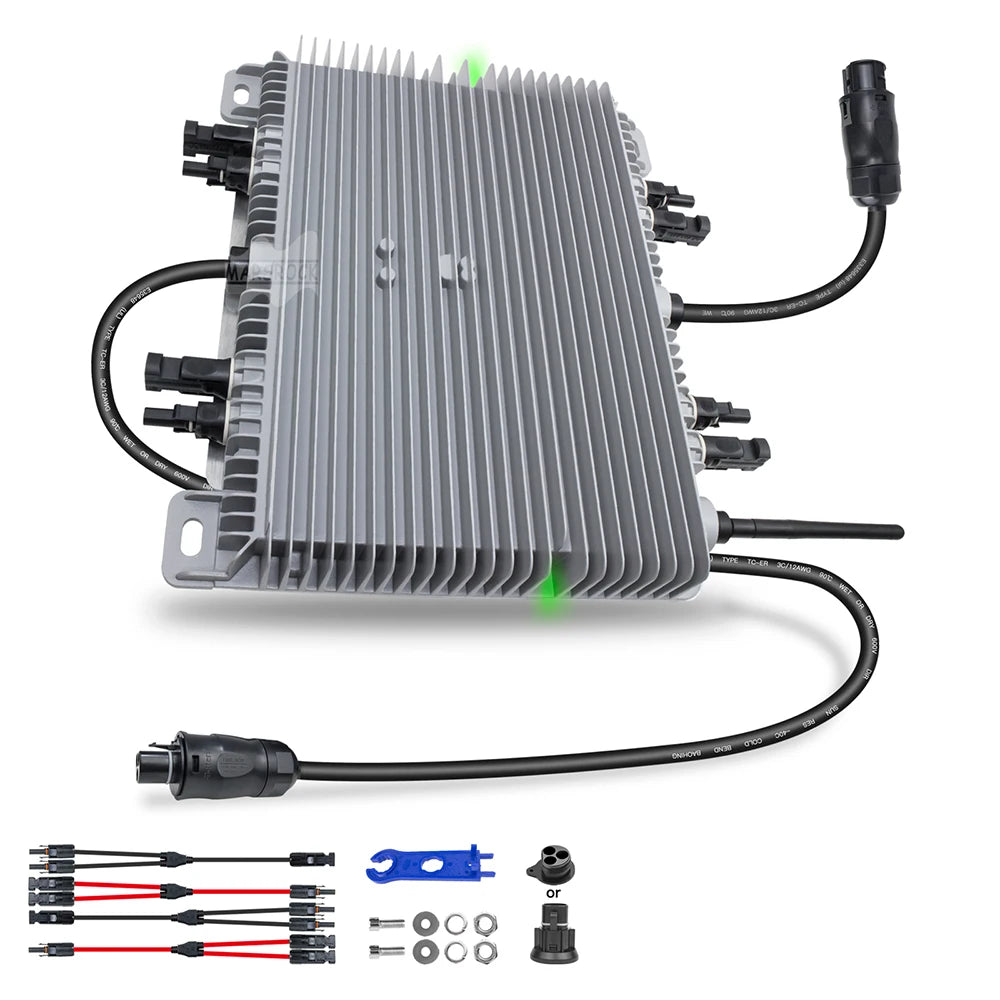

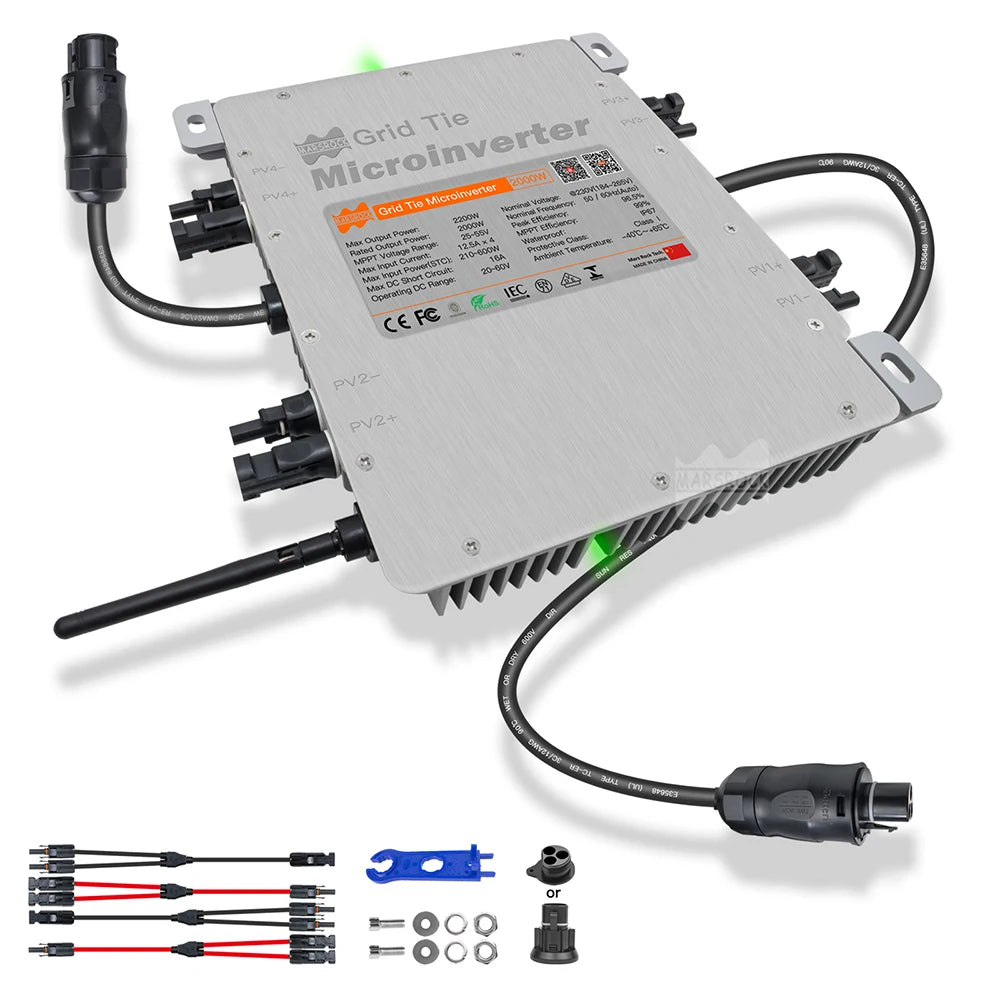

Maximum microinverter count per AC branch circuit: check Technical Data Page 5.Improper cabling can cause permanent damage, unless covered by warranty.

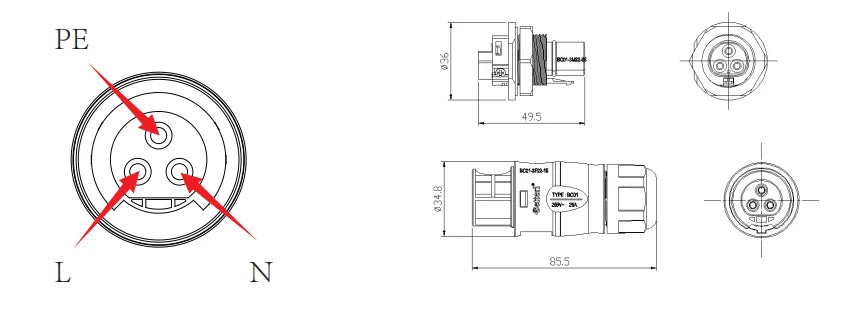

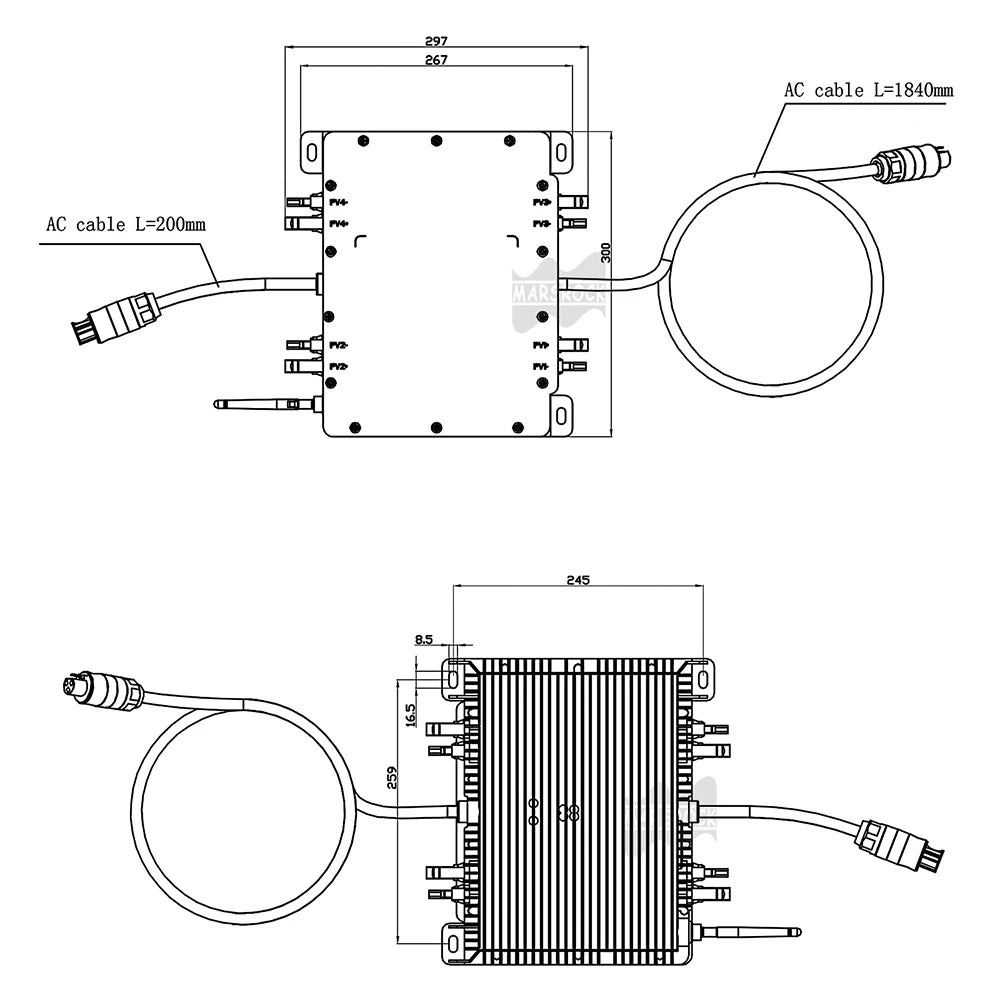

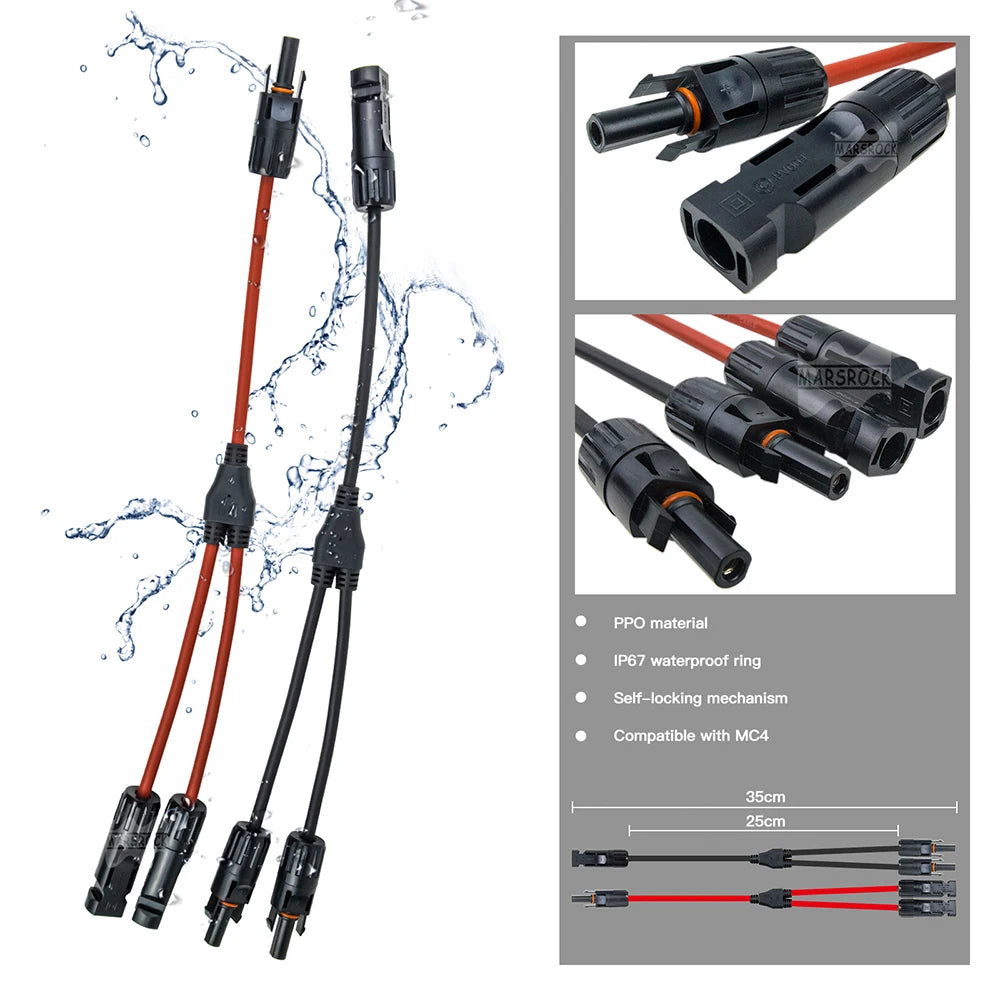

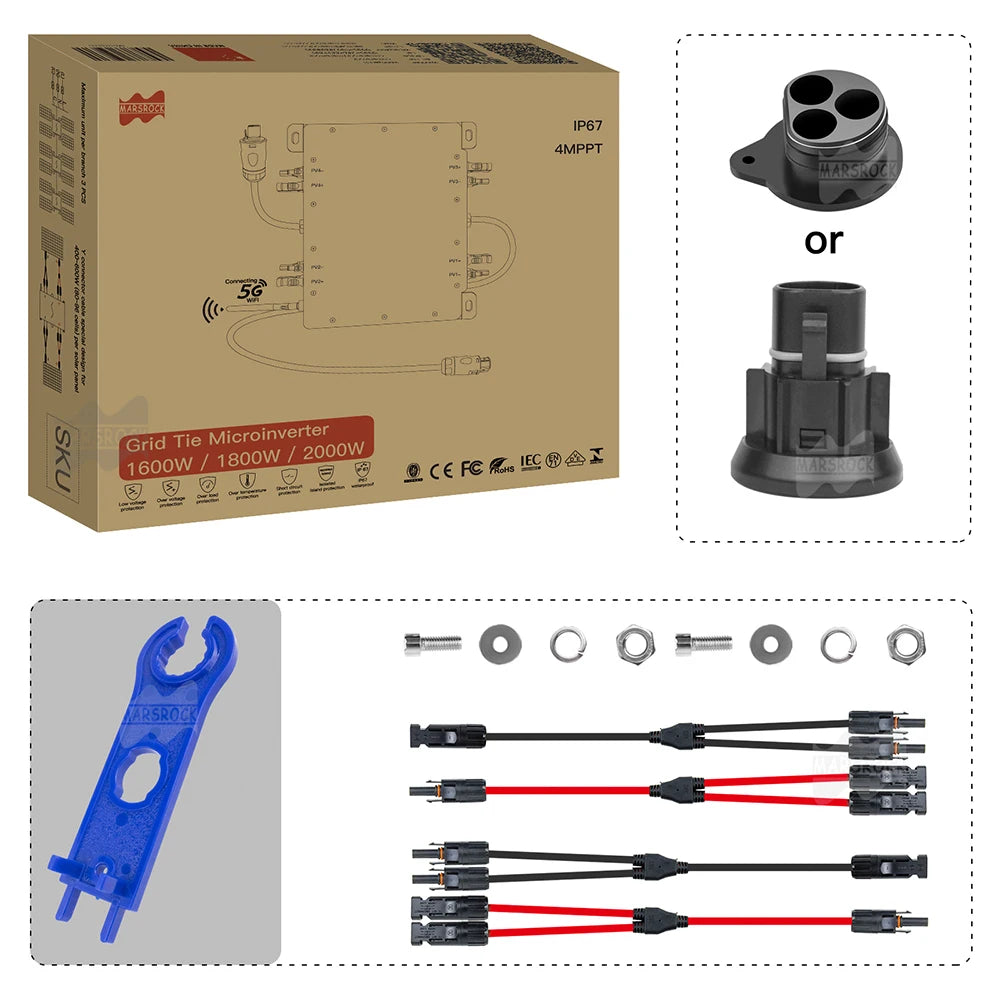

AC cable lengths: 1840mm (main) and 200mm (mini).Waterproof IP67 material with self-locking mechanism and MC4 compatibility for underwater applications.High-efficiency solar micro inverter with limiter, suitable for various applications.

Installation Instructions


Installation Procedures
Microinverter System Installation:

A PV system using Microinverters is simple to install. Each Microinverter easily mounts on the PV racking, directly beneath the PV module(s). Low voltage DC wires connect from the PV module directly to the Microinverter, eliminating the risk of high DC voltage.Installation MUST comply with local regulations and technical rules. Special Statement! An AC GFCI device should not be used to protect the dedicated circuit
to the microinverter even though it is an outside circuit. None of the small GFCI devices (5~30mA) are designed for back feeding and will be damaged if back feed. In a similar manner, AC AFCIs have not been evaluated for back feeding and may be damaged if back feed with the output of a PV inverter.

WARNING:Perform all electrical installations in accordance with local electrical codes.
WARNING:Be aware that only qualified professionals should install and/or replace Microinverters.
WARNING:Before installing or using an Microinverter,please read all instructions and warnings in the technical documents and on the Microinverter system itself as well as on the PV array.
WARNING:Be aware that installation of this equipment includes the risk of electric shock.
WARNING:Do not touch any live parts in the system, including the PV array, when the system has been connected to the electrical grid.
NOTE:Strongly recommend to install Surge protection Devices in the dedicated meter box.

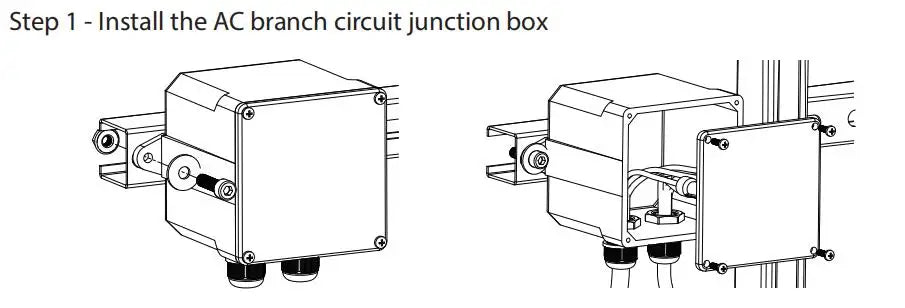

Step 1- Install the AC branch circuit junction box
Connect the AC branch circuit junction box for easy installation.

a. Install an appropriate junction box at a suitable location on the PV racking system
(typically at the end of a branch of modules).
b. Connect the open wire end of the AC cable into the junction box using an appropriate gland or strain relief fitting.
c. Wire the conductors of the AC(230/400Vac): L - red; N - black ;PE - yellow green.
d. Connect the AC branch circuit junction box to the point of utility Interconnection.

WARNING: Wiring colour code can be diferent according local regulation, check all the wires of the installaton before connecting to the AC cable to be sure they match. Wrong cabling can damage ireparably the mroinertersush an issue is not covered by the warranty.

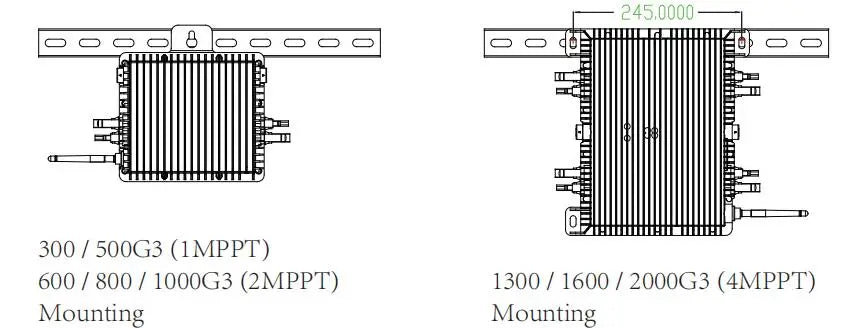

Step 2- Attach the Microinverters to the racking or the PV module frame
a. Mark the location of the Microinverter on the rack, with respect to the PV module junction box or any other obstructions.
b. Mount one Microinverter at each of these locations using hardware recommended by your module racking vendor.

WARNING: Prior to installing any of the microinverters, verify that the utility voltage at the point of common connection matches the voltage rating on microinverter label.
WARNING: Do not place the inverters (including DC and AC connectors) where exposed to the sun, rain or snow, even gap between modules.Allow a minimum of 3/4 (1.5cm.) between the roof and the bottom of the Microinverter to allow proper air flow.

Solar micro inverter with limiter, converts 20-60V DC to 184-265V AC, IP67 waterproof, ships from EU, Brazil, or US.

Step 3 - Connect the microinverters in parallel
a. Check the Microinverter technical data page 5 for the maximum allowable number of Microinverters on each AC branch circuit.
b. Plug the male AC connector of the Microinverter into the female connector to get it connected.AC connector interface as follows.
WARNING: DO NOT exceed maximum number of Microinverters in an AC branch circuit, as displayed on the page 5 of this manual.

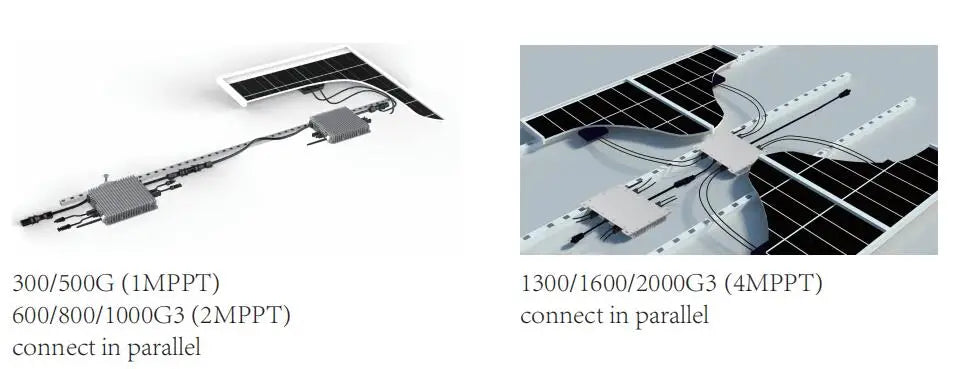

Reactive power generated on-site, not drawn from utility grid.

Inverter housing for outdoor use, rated IP65 for protection from weather and debris.

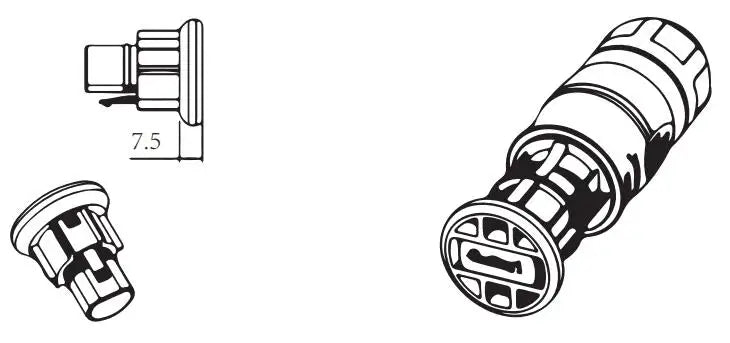

Step 4- Install an AC cable protective end cap at the end of AC cable


Install AC cable protective end cap; connect microinverter to PV modules.

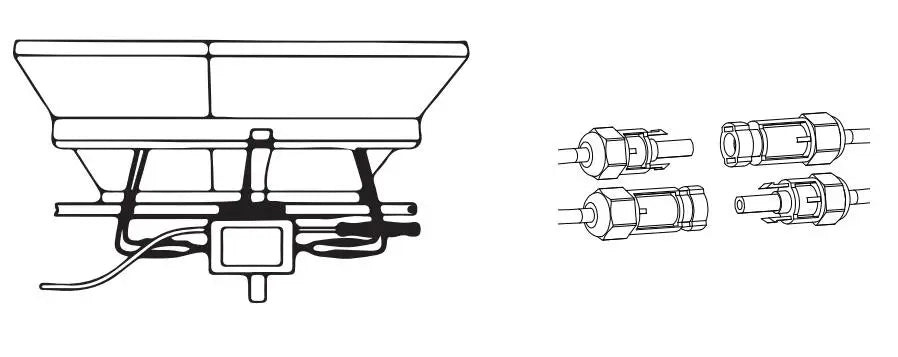

Step 5 - Connect Microinverter to the PV Modules

Exceeding microinverter limit can cause safety risks; follow guidelines on page 5 to ensure safe installation.


Note:When plugging in the DC cables, if AC already available,the Microinverter should immediately blink red light and will start work within the setting time (default 60 seconds). If AC is not available,the red light will blink 3 times quickly and repeat after one second until AC is connected.

Microinverter System Operating Instructions
To operate the microinverter PV system:
1. Turn ON the AC circuit breaker on each microinverter AC branch circuit.
2. Turn ON the main utility-grid AC circuit breaker. Your system will start producing power after a one-minute waiting time.
3. The units should start blinking red one minutes after turning on the AC circuit breaker. Then blue led blinking. This means they are producing power normally, the faster blinking of the blue led means more power generated.
4. Configure the internal wifi module according to its user manual.
5. The Microinverters will start to send performance data over wifi module to the network every 5 minutes.It enables customers to monitor performance data of each microinverter through website and APP.
NOTE: When AC power is applied but the microinverter not started up, about 0.1A current and 25VA(W) power for each microinverter may be measured by a power meter. This power is reactive power,not consume from utility grid.

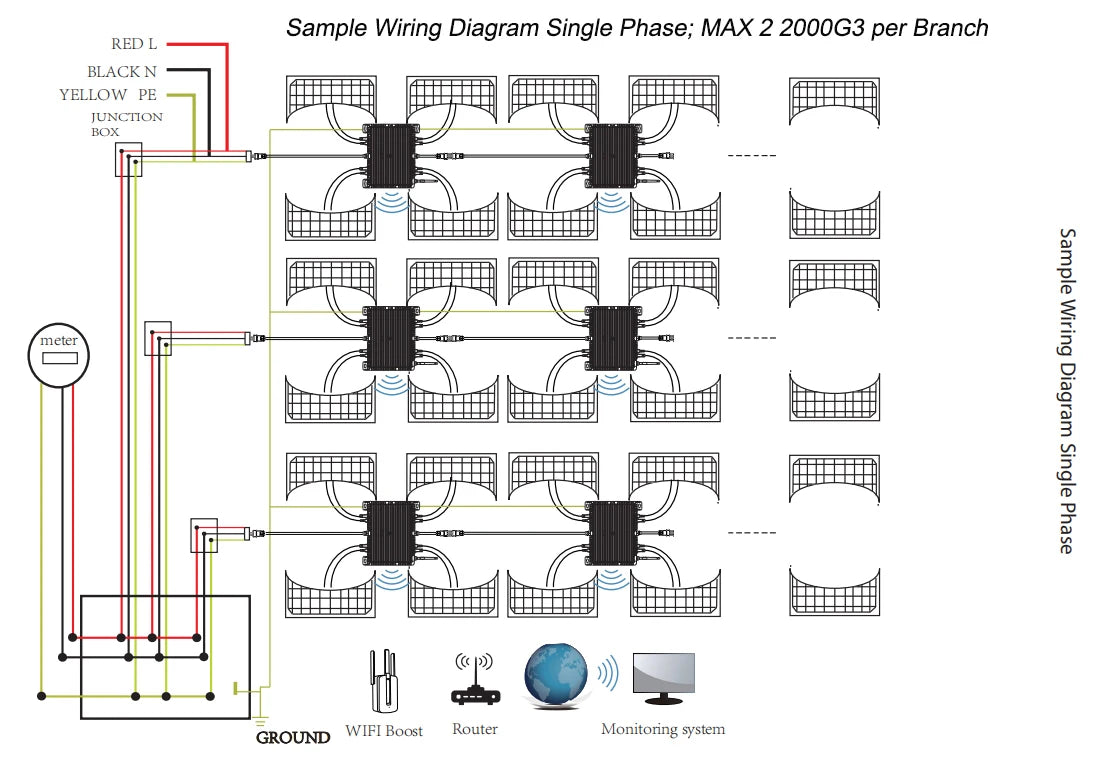

Sample Wiring Diagram Single Phase; MAX 22000G3 per Branch.

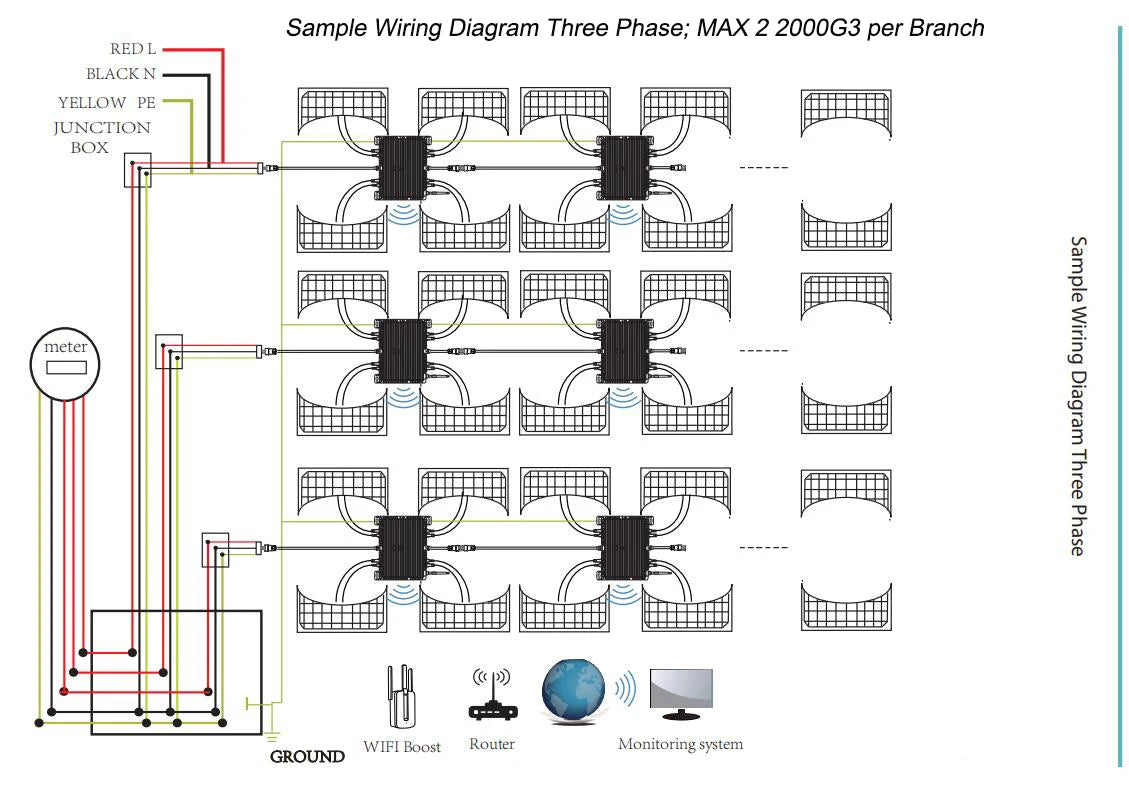

Sample Wiring Diapram Three Phase; MAX 22000G3 per Branch.

WiFi-enabled single-phase micro inverter wiring diagram for up to two branches.

Single-phase wiring diagram for WiFi Deye's 2000W micro inverter, accommodating up to two branches with RED, BLACK, and YELLOW wires, along with a junction box, meter, and ground connection.

Solar micro inverter with limiter for WiFi connectivity and DC to AC conversion.

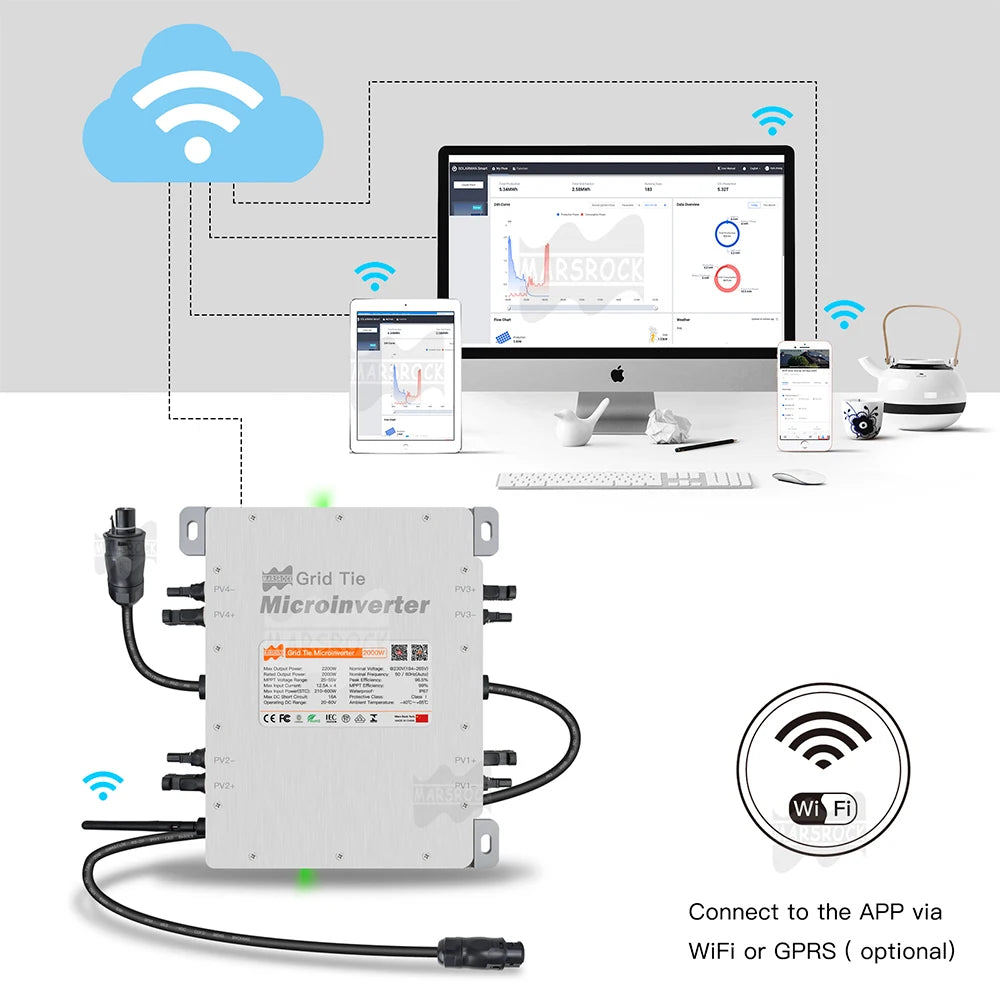

Connects to the APP via WiFi or GPRS, enabling remote monitoring and control.

Connects to the APP via WiFi or GPRS, enabling remote monitoring and control.

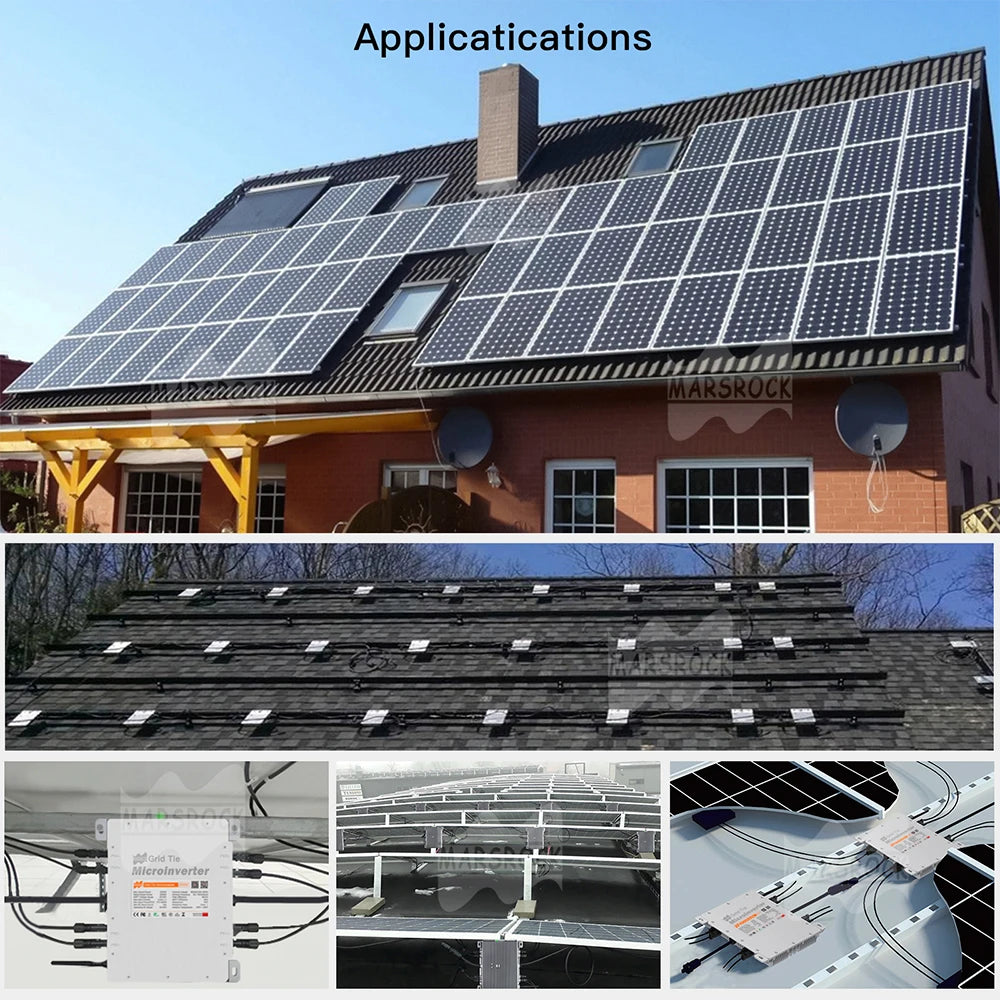

Suitable for grid-tied solar systems and residential applications.

Suitable for grid-tied solar systems and residential applications.

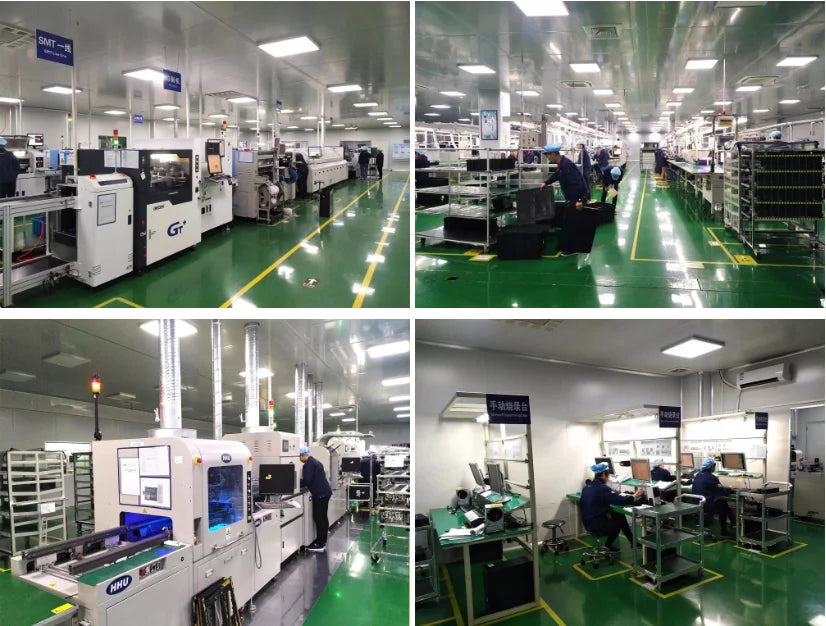

Factory Production Line Shows
AC AFCIs not designed to handle backfeeding from solar inverters; damage possible.

Shipping details: FedEx, international, waterproof enclosure, trackable (E8)

Shipped via FedEx from EU/Brazil/US/RU with tracking number E8 in waterproof IP67 enclosure.
