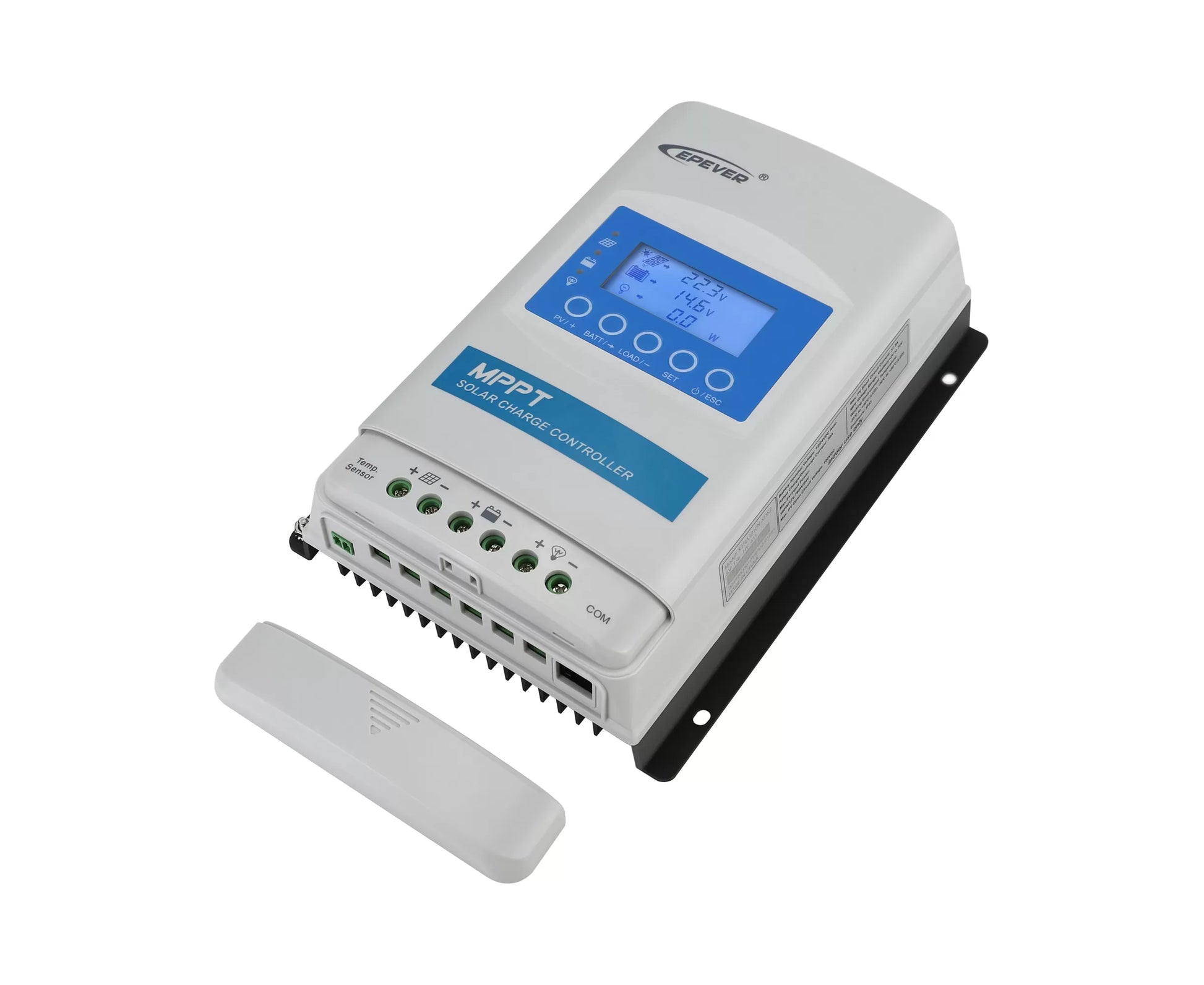

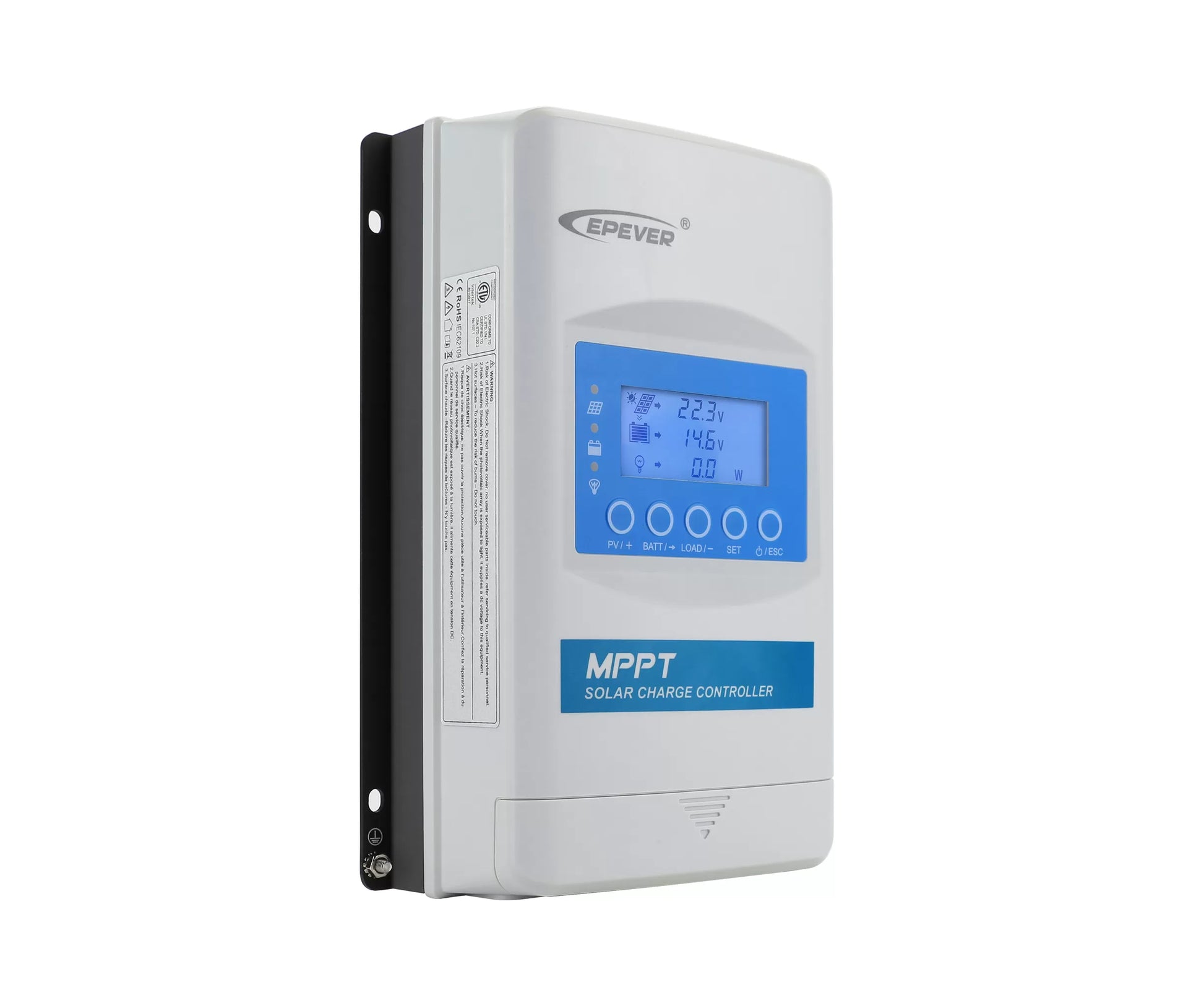

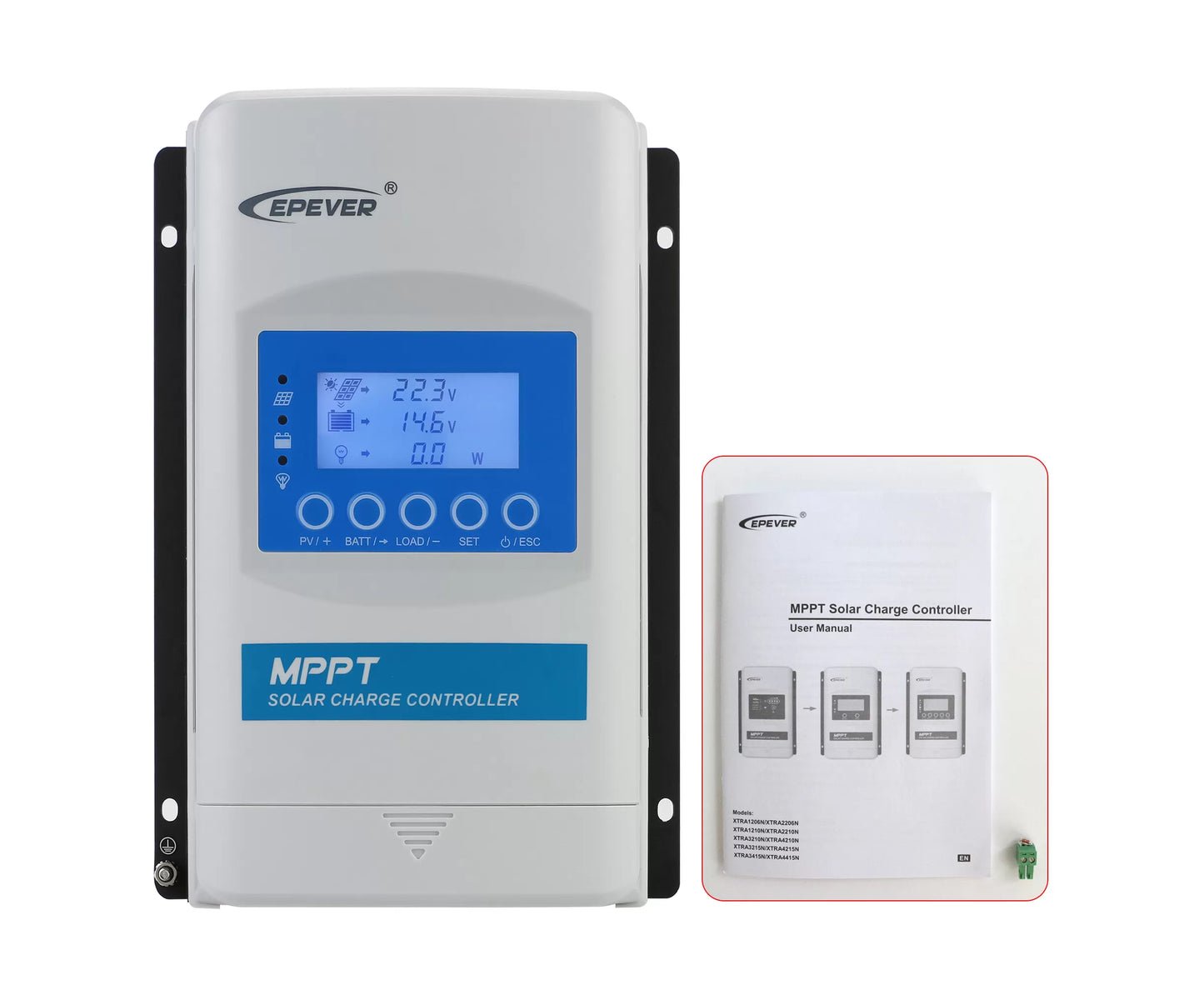

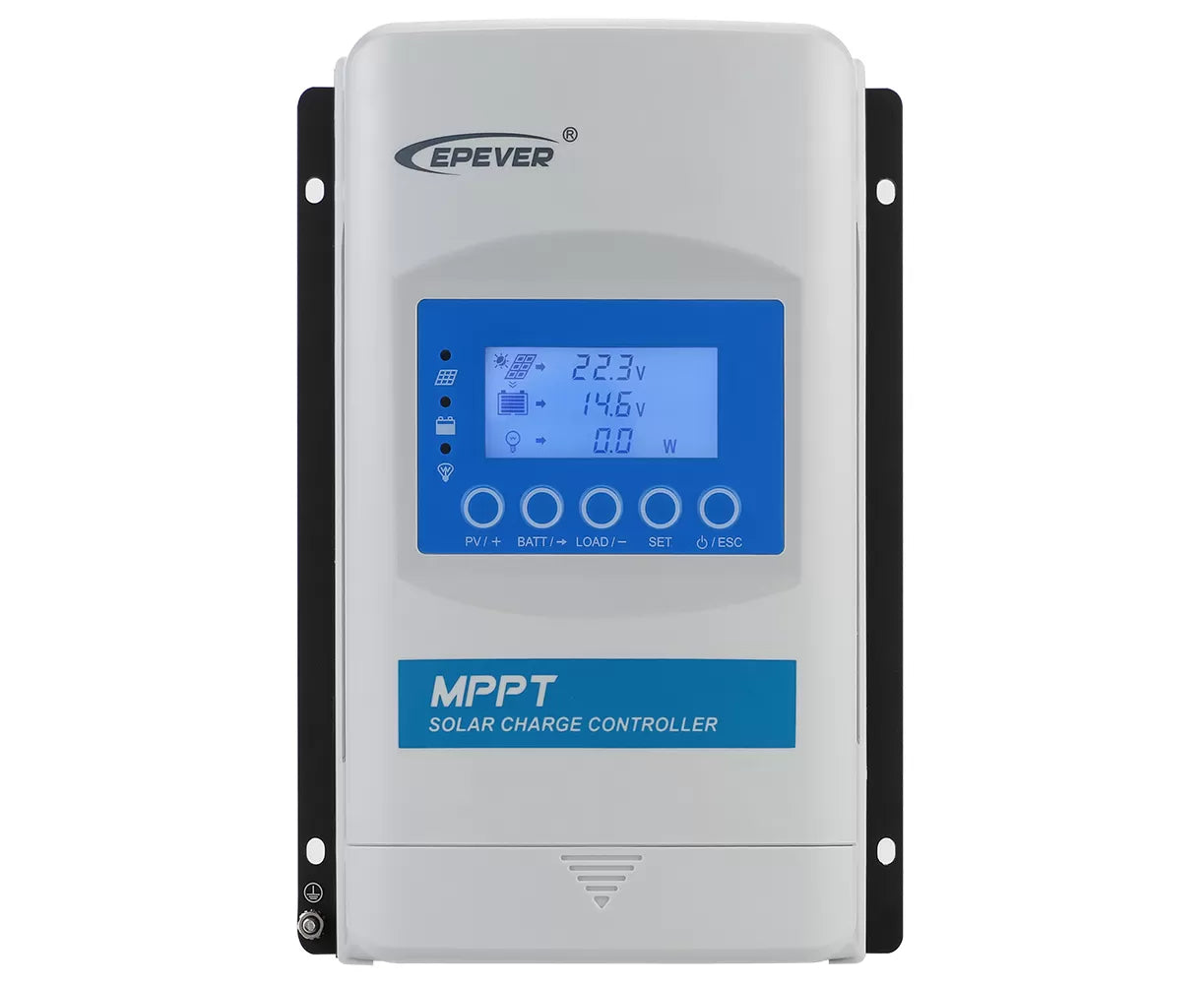

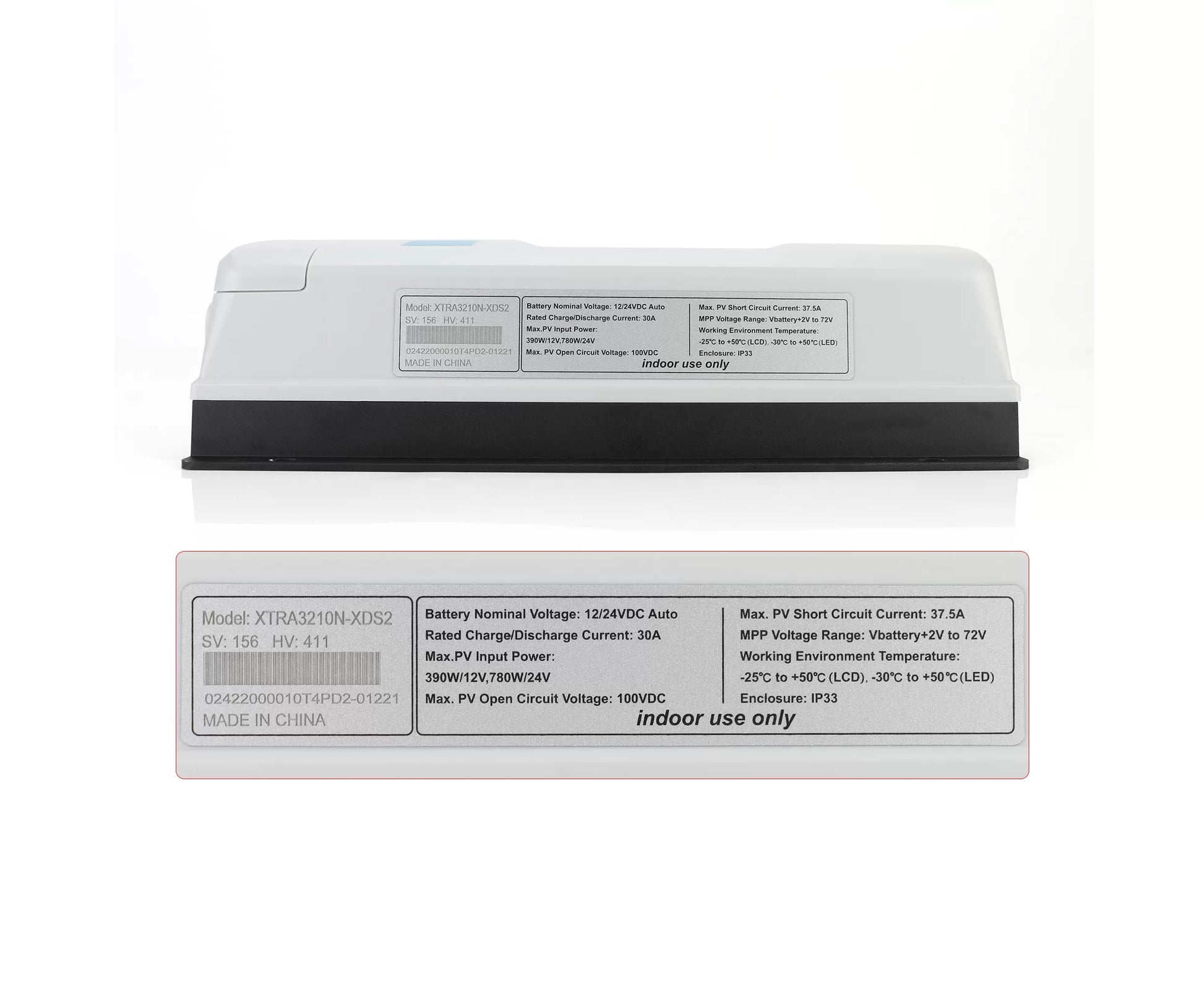

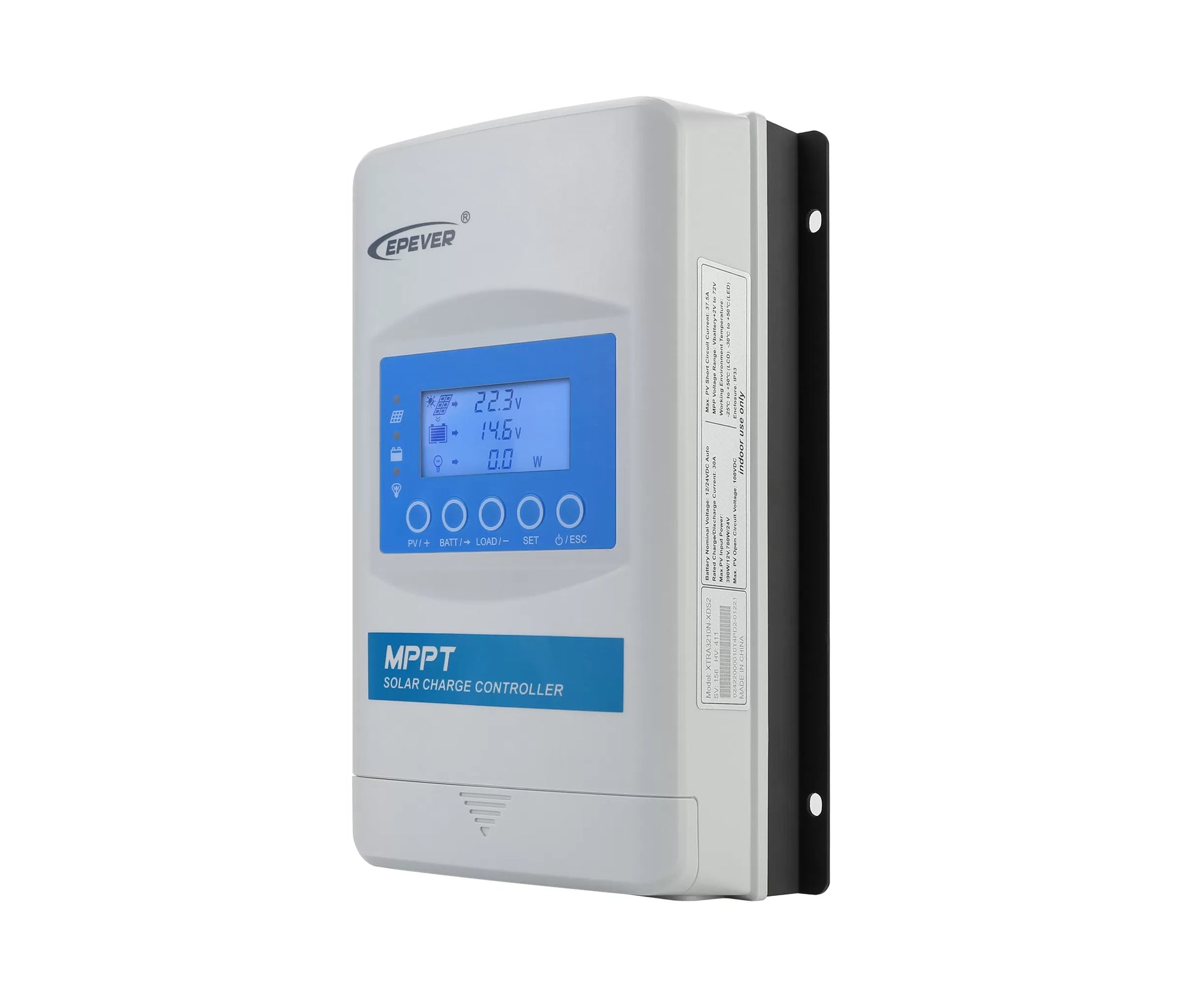

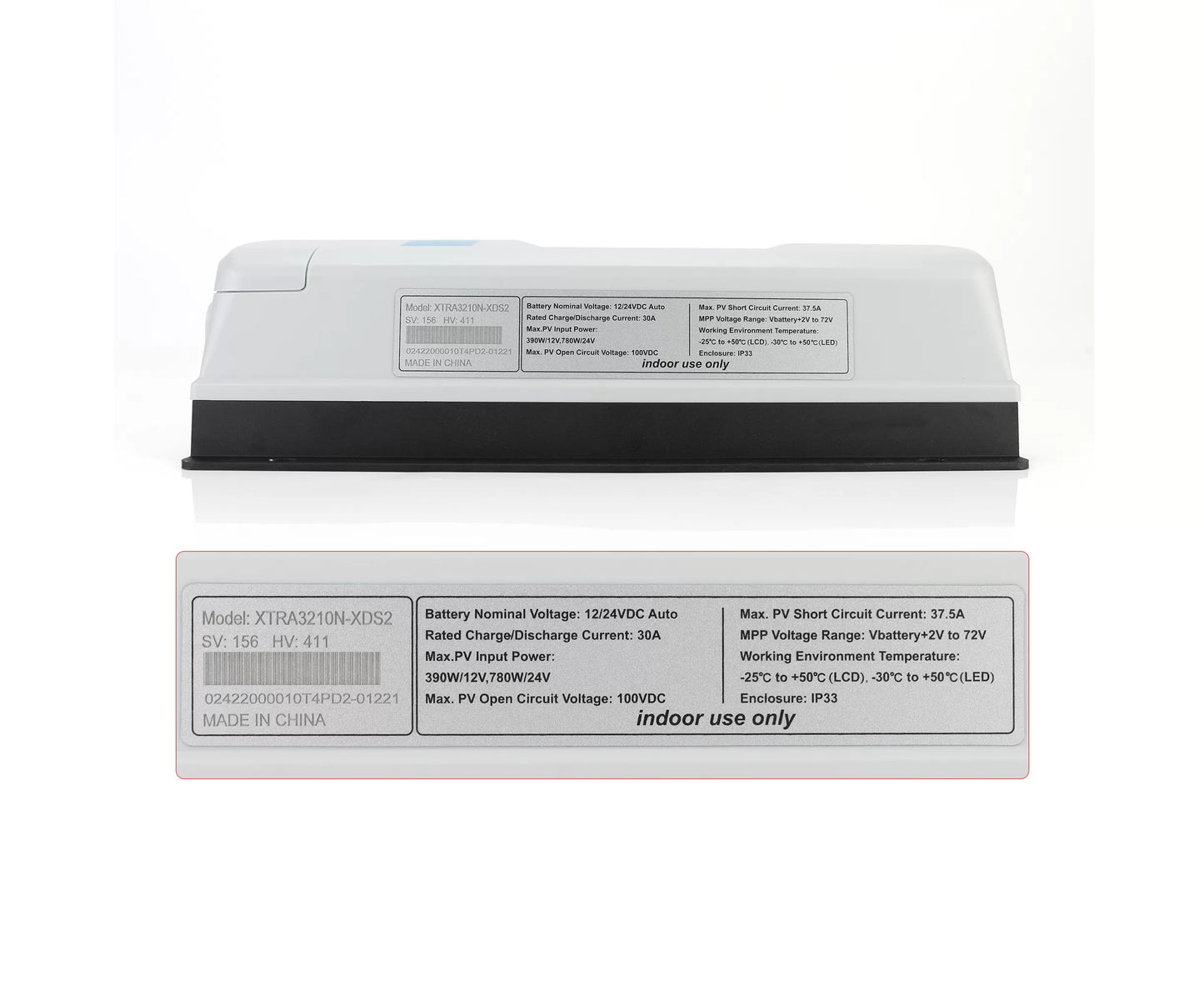

XTRA2210N-XDS2 - Epever 20A MPPT Solar Charge Controller

XTRA2210N-XDS2 - Epever 20A MPPT Solar Charge Controller

Regular price $88.00 USD
Regular price Sale price $88.00 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ



20amp mppt controller charging parameter

  • System nominal voltage: 12/24VDC Auto(When a lithium battery is used, the system voltage can’t be identified automatically.)
  • Rated charge/discharge current: 20A
  • Battery voltage range: 8~32V
  • Max. PV open circuit voltage: 92V At 25℃ environment temperature, 100V At minimum operating environment temperature
  • Max. PV input power: 520W when battery system is 24V, 260W when battery system is 12V.
  • Battery type: Lead-acid battery(Sealed/Gel/Flooded/User), Lithium battery(LiFePO4, Li(NiCoMn)O2, User)

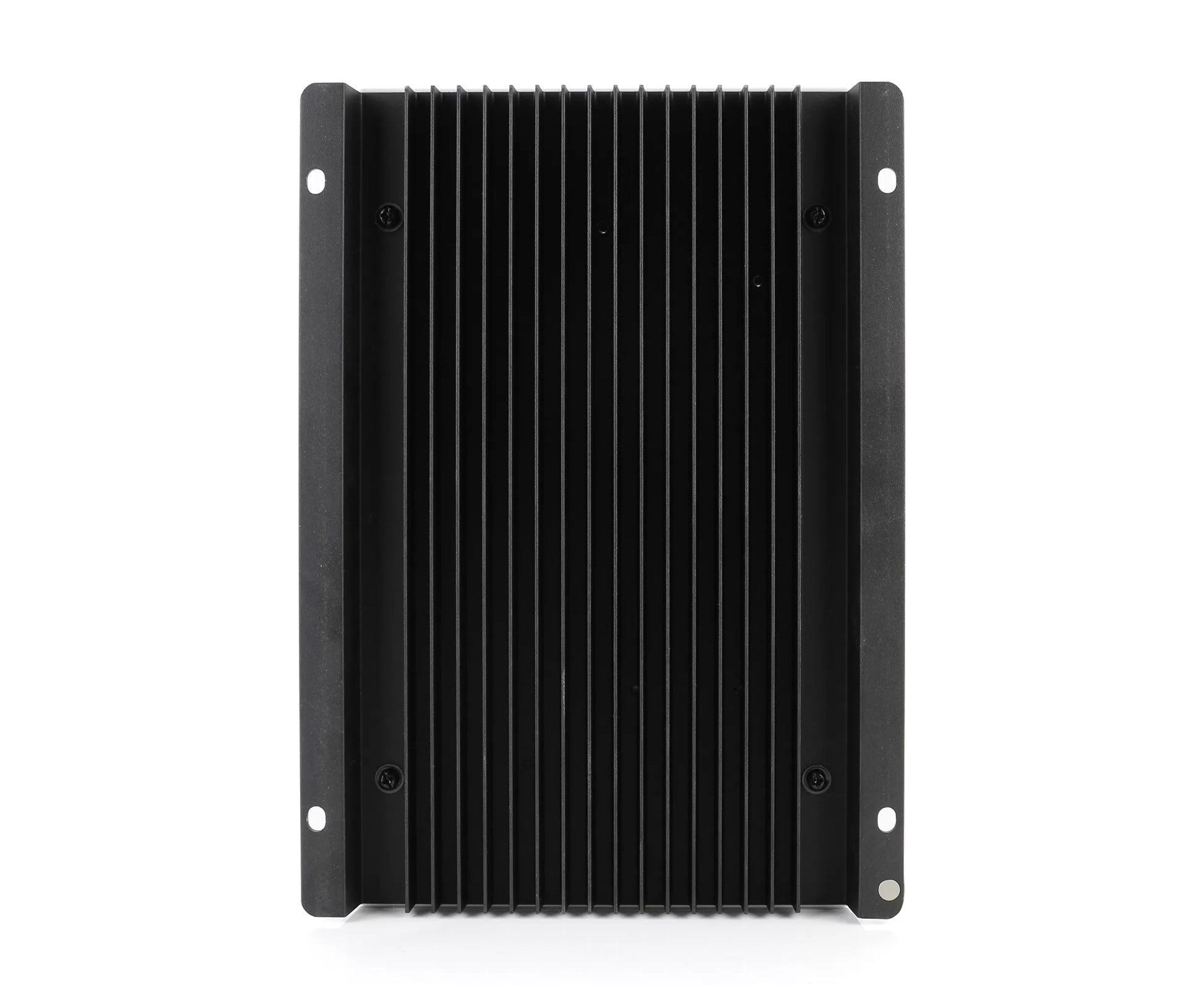

  • Mounting dimension: 160×149mm with Φ5mm Mounting hole size
  • Recommended cable: 10AWG(6mm2)



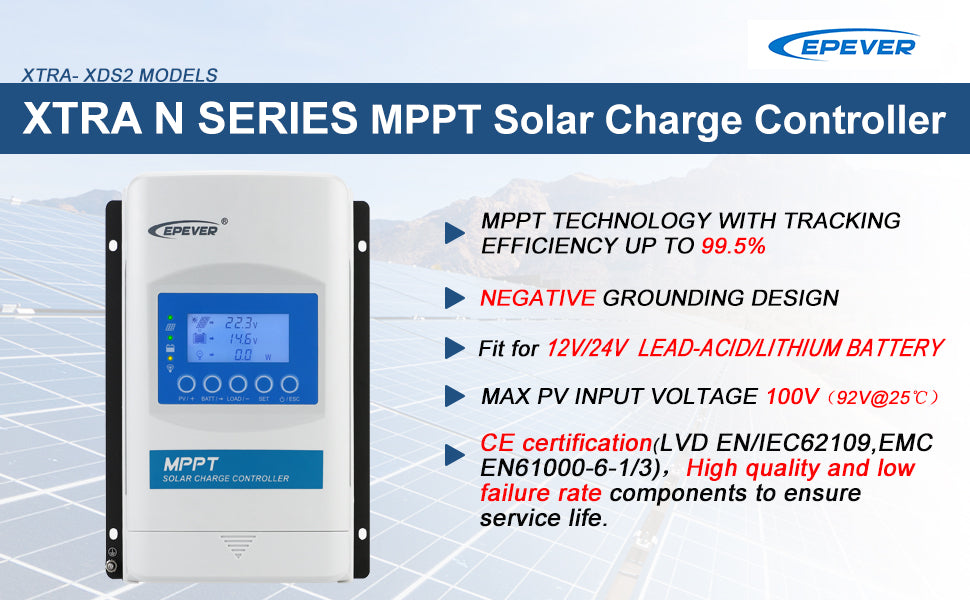

mppt solar charge controller

Epever's XTRA-XDS2 model, part of their N Series MPPT Solar Charge Controller lineup, features advanced tracking technology with an efficiency up to 99.5%. The device uses negative grounding design and supports 12V/24V lead-acid or lithium batteries. It has a max PV input voltage of 100V (92V @ 25°C) and is CE certified for compliance with EU regulations EN61000-6-1/3. With high-quality components, it ensures a long service life with low failure rates.


XTRA Series  MPPT solar charge controller

XTRA series are advanced maximum power point tracking (MPPT) charge controllers, for off-grid photovoltaic systems, with optional display units (XDB1/XDS1/XDS2).In order to maximize the energy harvest from PV arrays and simultaneously minimize the power loss within a wide range of operating conditions, the XTRA series apply an advanced smart algorithm which results in up to 30% higher efficient charging, compared to a conventional pulse width modulation (PWM) charge controller. Xtra series controller has a limit protection function on charging current &charging power, as well as auto derating power operation at high temperature; the above protection ensures the stability of the system even at exceeded rated PV power and over-temperature conditions. Protection class IP32 and isolated RS485 communication port further improve the controller's reliability under dierent application requirements.XTRA series controllers incorporate a self-adaptive three-stage charging algorithm based on a digital control circuit, which effectively prolongs the lifespan of the battery and significantly improves the system performance. It also has extensive electronic protection for overcharge, over-discharge, PV&battery reverse polarity and etc. to ensure the sustainability and durability of the o-grid solar system.

Features

  • Advanced MPPT technology & ultra-fast tracking speed is up to 99.5 % guaranteed
  • Maximum DC/DC transfer efficiency is as high as 98 %, full load transfer efficiency is up to 97.4 %
  • Wide MPP operating voltage range
  • Low-temperature protection and self activate the function for lithium battery charging
  • Limit charging power & current overrated range
  • Real-time energy statistics function
  • Multiple load work modes
  • Comprehensive electronic protection
  • Compatible with lead-acid and lithium-ion①batteries
  • Over-temperature protection and power degrading in higher temperature
  • Optional LCD display units (XDB1/XDS1/XDS2) and accessories
  • High quality and low failure rate components of ST or IR to ensure the service life
  • Isolated RS485 communication port with 5V/200mA protected output, with standard Modbus protocol
  • Monitor and set the parameters via the APP or PC software
  • Dustproof and waterproof design with IP32② protection class

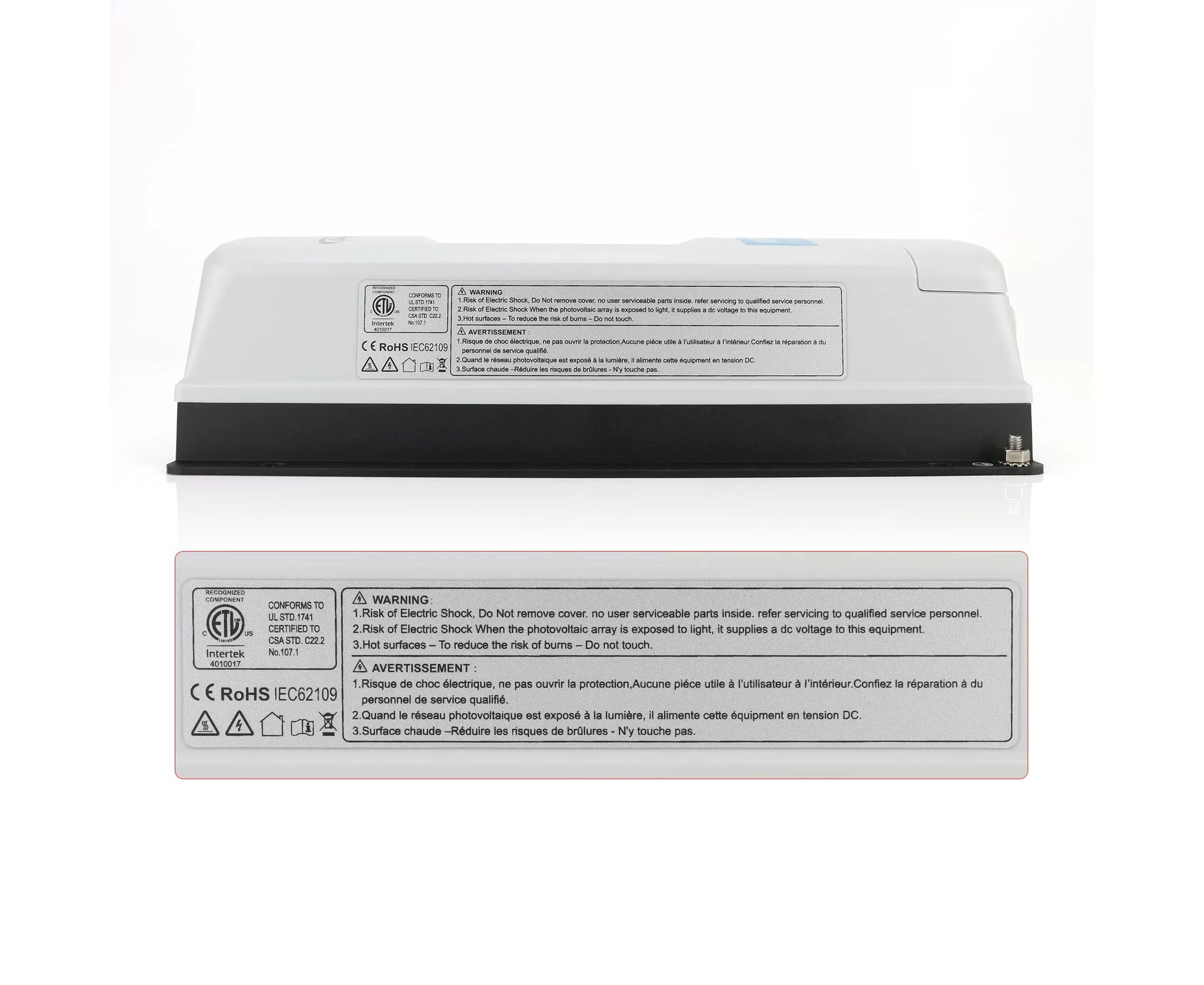

  • CE certification(LVD IEC62109, EMC EN3/1-6-61000)

① If using a Lithium battery, the customer should ask help for “PC software” to set the lithium battery parameters
② Ingress of solid objects: Protected against solid objects over 2.5mm
② Ingress of liquids: Protected against falling drops of water, if the case is disposed up to 15 from vertical

Accessories support: Remote Temperature Sensor/USB to RS485 cable/ MT50 Remote Meter/WIFI-eBox-WIFI-01/Bluetooth-eBox-BLE-01( all the accessories is optional, doesn't include)

  • Protection: PV Over Current/power, PV Short Circuit, Battery Over Voltage, Battery Over Discharge....etc
  • Temperature compensate coefficient: -3mV/℃/2V (Default)
  • Grounding: Common negative
  • Discharge circuit voltage drop: ≤0.23V
  • RS485 interface: 5VDC/200mA(RJ45)
  • LCD backlight time: Default:60S,Range:0~999S(0S:the backlight is ON all the time)
  • Working environment temperature: -25℃~+50℃
  • Relative humidity: ≤95%, N.C.
  • Enclosure: IP32(3-protection against solid objects: protected against solids objects over 2.5mm. 2-protection against liquids: protected against direct sprays up to 15°from the vertical)



Xtra solar controller 20a Load working modes (note: below pic is the screenshot of the mobile app, for reference only)

mppt solar charge controller

Turn off the load when charging starts. Turn on the load in working mode.

mppt solar charge controller

mppt solar charge controller

Operating at 20V, maximum power point tracking (MPPT) for efficient solar charging.

mppt solar charge controller

Manual Control (default)

  • Control ON/OFF of the load via the button or remote commands (e.g., APP or PC software).

Light ON/OFF

  • Set your own's turn ON/OFF voltage, once your solar panel's voltage reaches this value, your load will ON/OFF
  • ON voltage=sunset; OFF voltage=sunrise

Light ON+ Timer

  • After loading ON according to the voltage you set, you can set how long your load keeps working. e.g. 101: Load will be ON about 1 hour after sunset
  • Two working time periods can be set, the setting range is 101~115 and 201~215
  • 201 means Load will be ON about 1 hour before sunrise

Time Control

  • Control the load ON/OFF time by setting the real-time clock.

XTRA2210N-XDS2, xtracer mppt controller

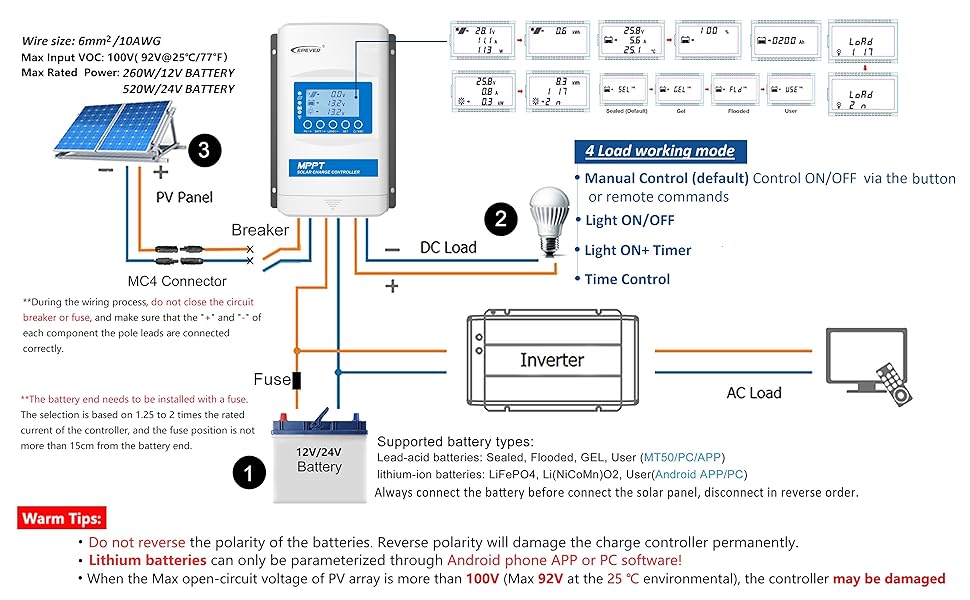

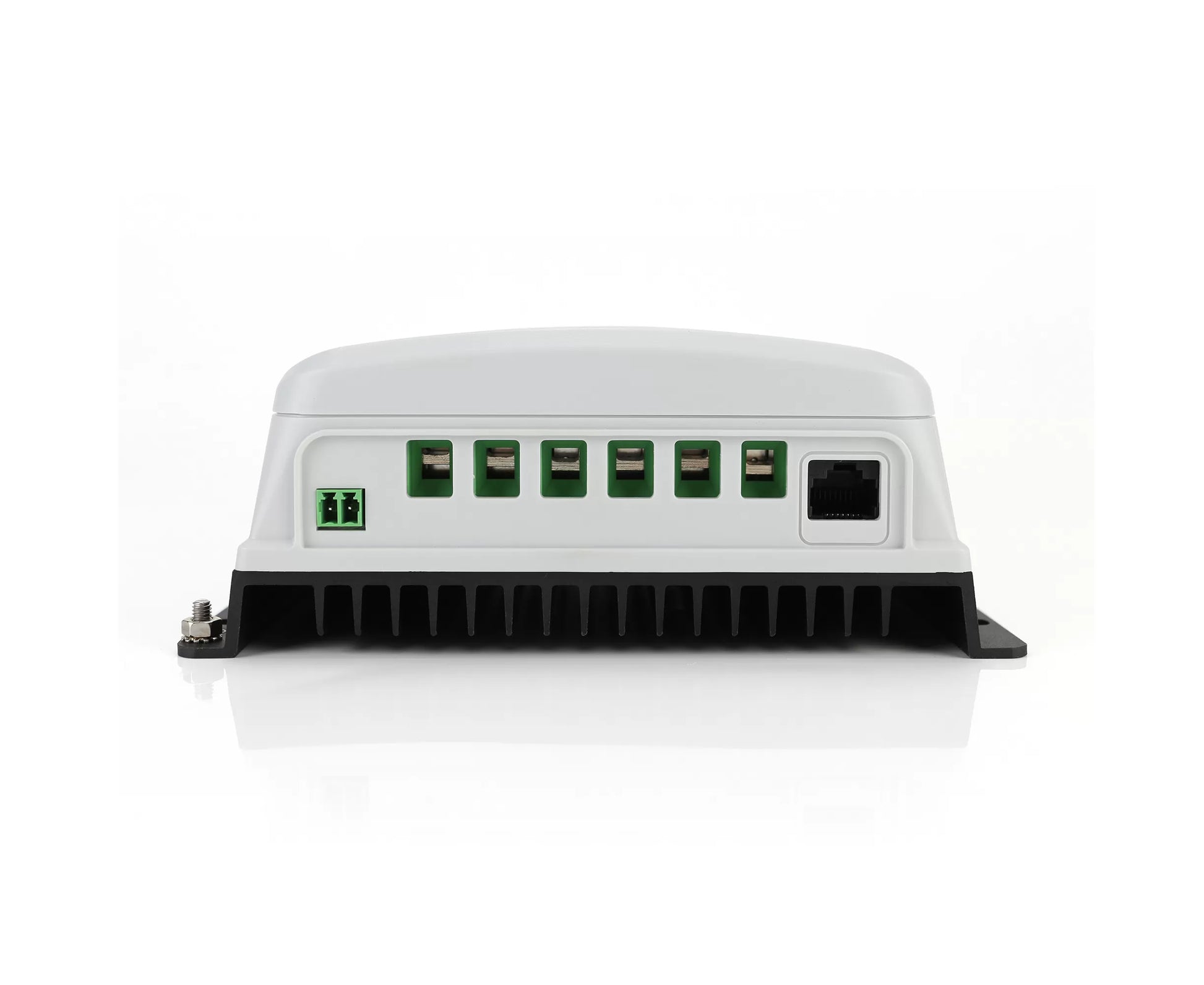

TIPS WHEN WIRING YOUR SOLAR CHARGE CONTROLLER

  1. Turn the adjusting terminal counterclockwise, Insert your wire into the new opening between the plate and the "top" of the terminal hole.
  2. Make sure your battery must be at least 60% charged prior to connecting to the controller, or the controller can't read your battery correctly.
  3. Connect the battery to the controller first!! (When LCD power is on, means the controller reads the battery successfully, if not please reconnect it.)
  4. Connect your solar panel array to the controller after Controller's LCD power is on.
  5. Never connect your solar panel array to the controller when the LCD display doesn't power on(Which means your battery does not connect successfully).
  6. Careful your input power and voltage does not exceed the max. When the maximum open-circuit voltage of the photovoltaic array exceeds 92V (when Ambient temperature 25°C/77°F), the controller will be damaged.
  7. Do not reverse the polarity when wiring or the controller will be damaged.
  8. Lithium batteries setting only can be parameterized via Phone APP or PC software. (Accessories optional, doesn't include)
  9. When the battery type is an ordinary lead-acid battery, the controller does not have the function of low-temperature protection.
  10. When the battery type is a lithium-ion battery, the controller does not have the system voltage recognition function. Need set the battery‘s correct voltage and type via the mobile APP or computer software before use.
