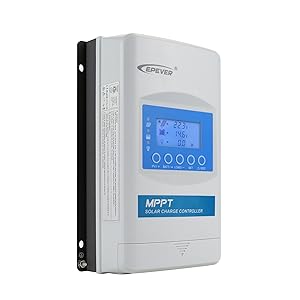

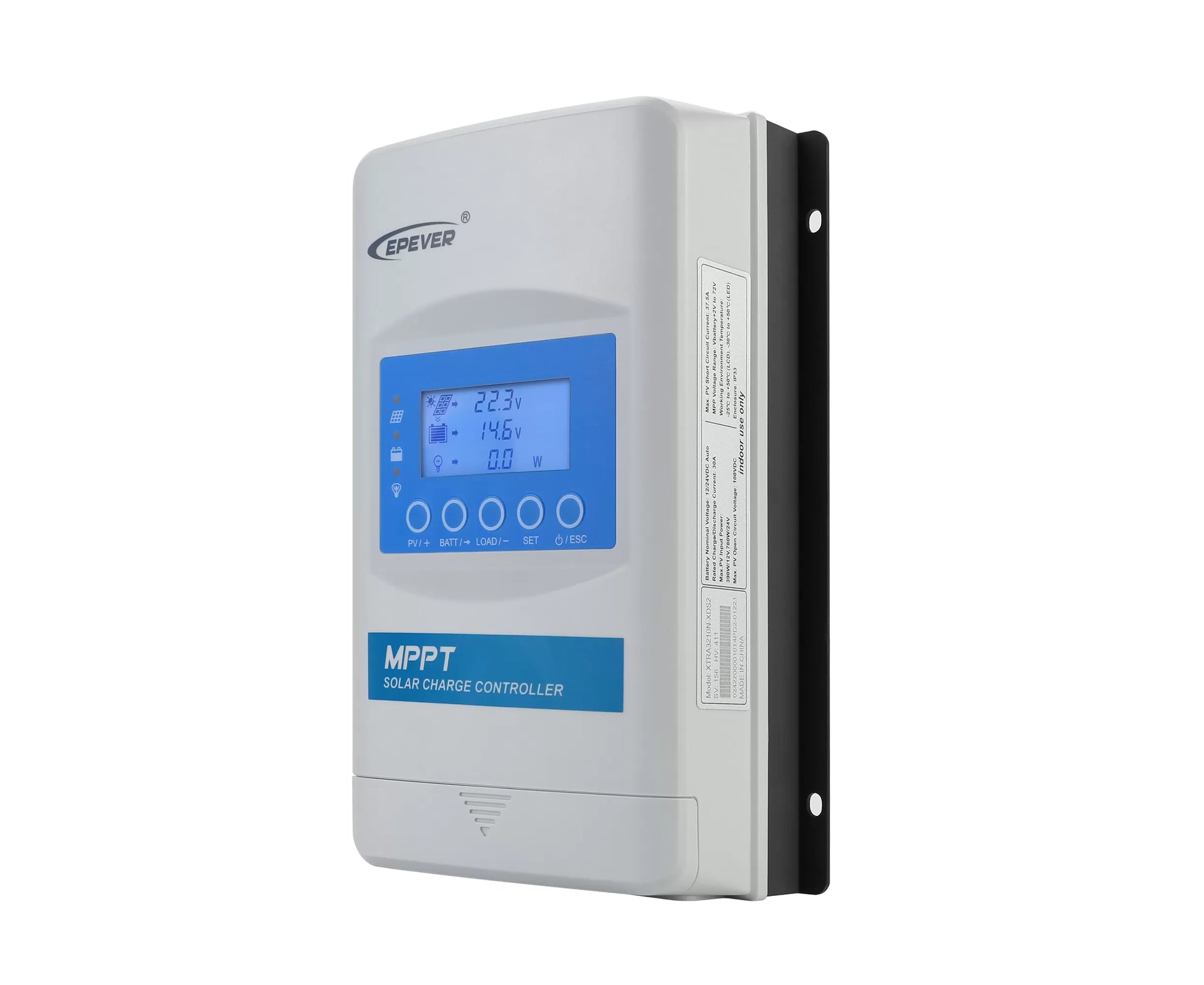

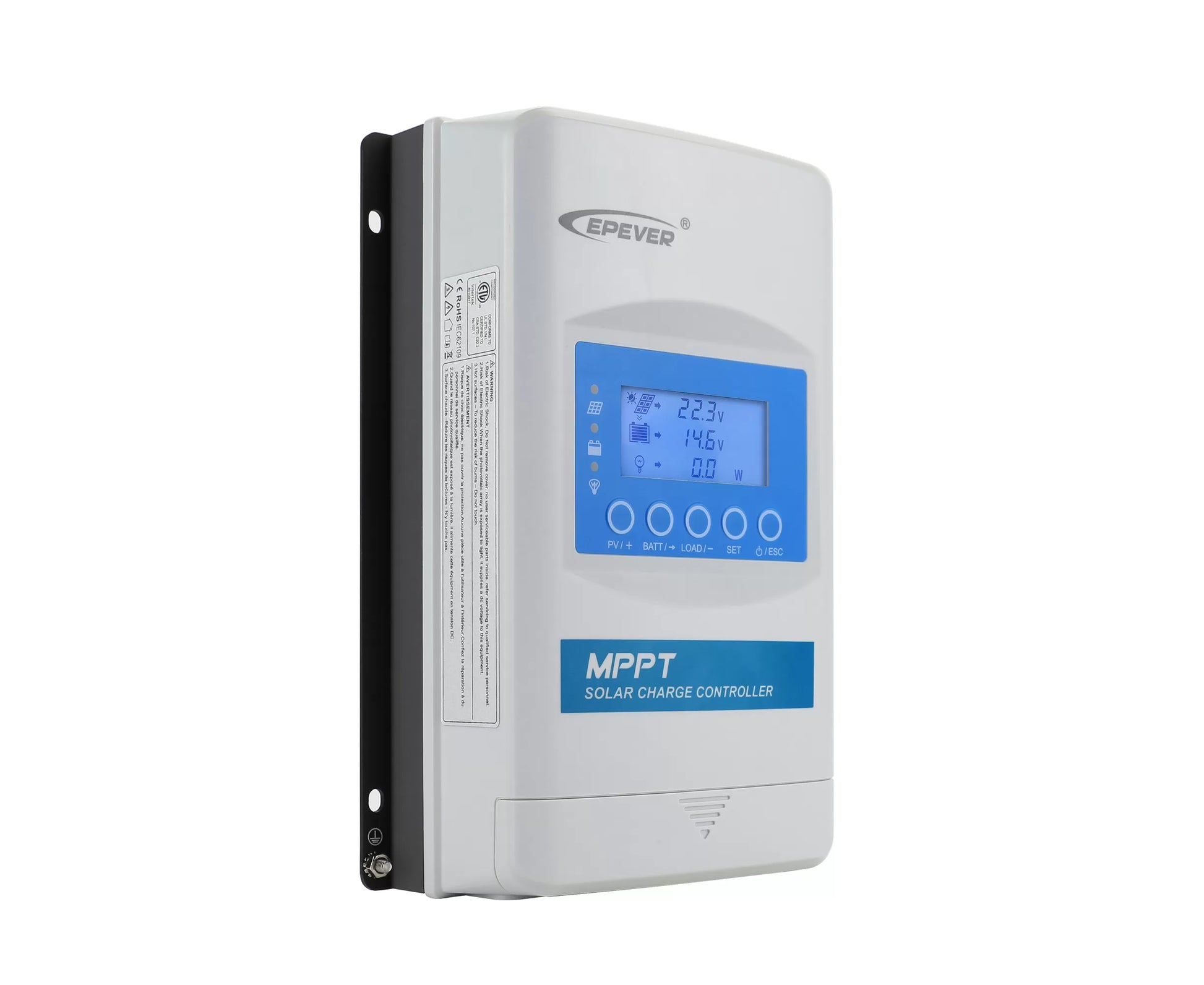

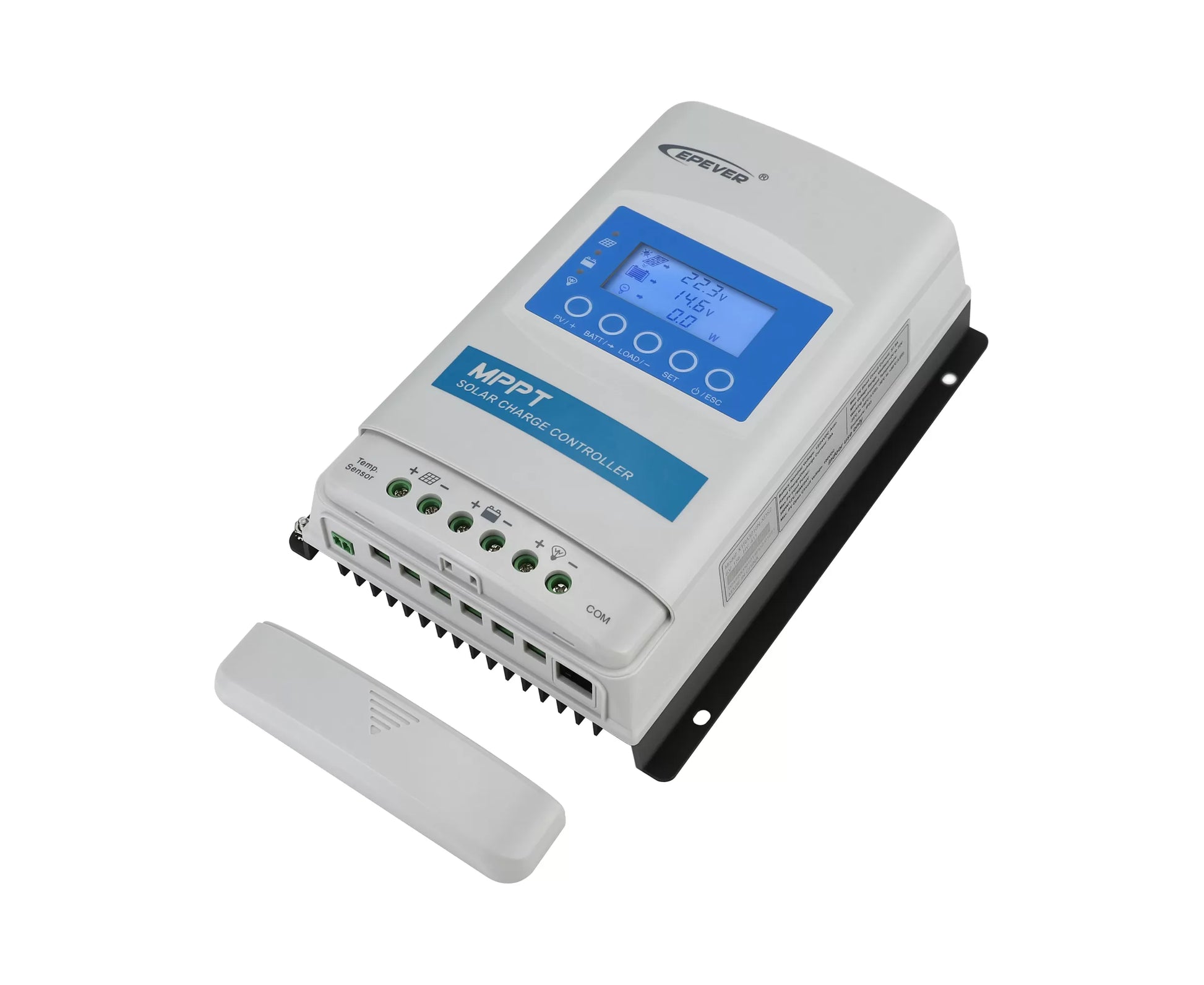

XTRA3415N-XDS2 - Epever 30A 150V XTRA Series MPPT solar charge controller

Epever 30A 150V XTRA Series MPPT solar charge controller Quick Info

Brand: EPever

Lithium Battery Activation: Active Lithium

Batteries Battery Voltage: 12V, 24V, 36V, 48V

Battery Type: Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM Batteries, User Mode

Charging Current: 30 Amps

Ground Type: Netagive Ground

Solar Panel Max Input Power: 500W-1000W

Solar Panel Max Input Voltage: 150V

XTRA Series  MPPT solar charge controller

XTRA series are advanced maximum power point tracking (MPPT) charge controllers, for off-grid photovoltaic systems, with optional display units (XDB1/XDS1/XDS2).In order to maximize the energy harvest from PV arrays and simultaneously minimize the power loss within a wide range of operating conditions, the XTRA series apply an advanced smart algorithm which results in up to 30% higher efficient charging, compared to a conventional pulse width modulation (PWM) charge controller. Xtra series controller has a limit protection function on charging current &charging power, as well as auto derating power operation at high temperature; the above protection ensures the stability of the system even at exceeded rated PV power and over-temperature conditions. Protection class IP32 and isolated RS485 communication port further improve the controller’s reliability under dierent application requirements.XTRA series controllers incorporate a self-adaptive three-stage charging algorithm based on a digital control circuit, which effectively prolongs the lifespan of the battery and significantly improves the system performance. It also has extensive electronic protection for overcharge, over-discharge, PV&battery reverse polarity and etc. to ensure the sustainability and durability of the o-grid solar system.

Features

• Advanced MPPT technology & ultra-fast tracking speed is up to 99.5 % guaranteed
• Maximum DC/DC transfer efficiency is as high as 98 %, full load transfer efficiency is up to 97.4 %
• Wide MPP operating voltage range
• Low-temperature protection and self activate the function for lithium battery charging
• Limit charging power & current overrated range
• Real-time energy statistics function
• Multiple load work modes
• Comprehensive electronic protection
• Compatible with lead-acid and lithium-ion①batteries
• Over-temperature protection and power degrading in higher temperature

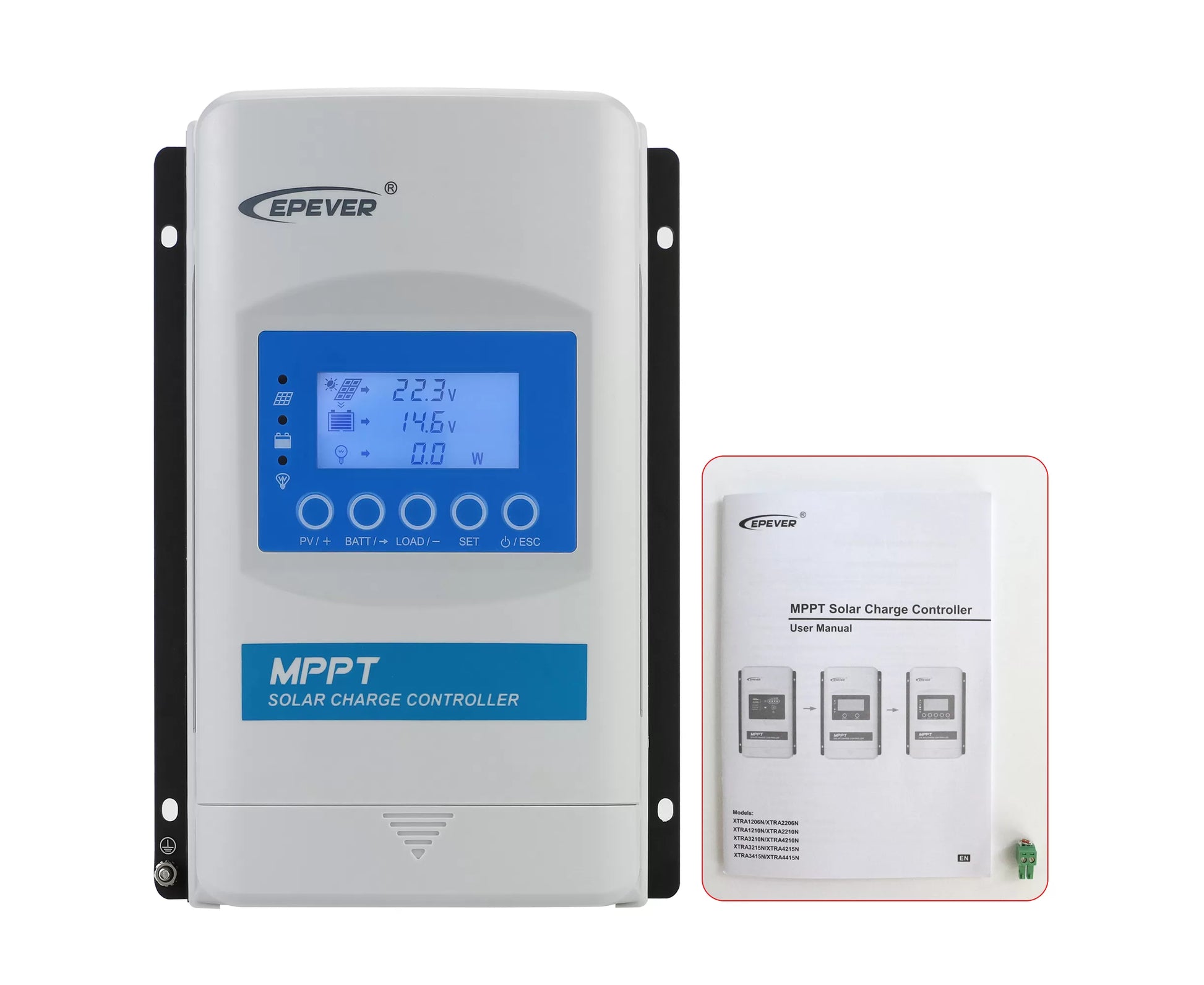

• Optional LCD display units (XDB1/XDS1/XDS2) and accessories
• High quality and low failure rate components of ST or IR to ensure the service life
• Isolated RS485 communication port with 5V/200mA protected output, with standard Modbus protocol
• Monitor and set the parameters via the APP or PC software
• Dustproof and waterproof design with IP32② protection class

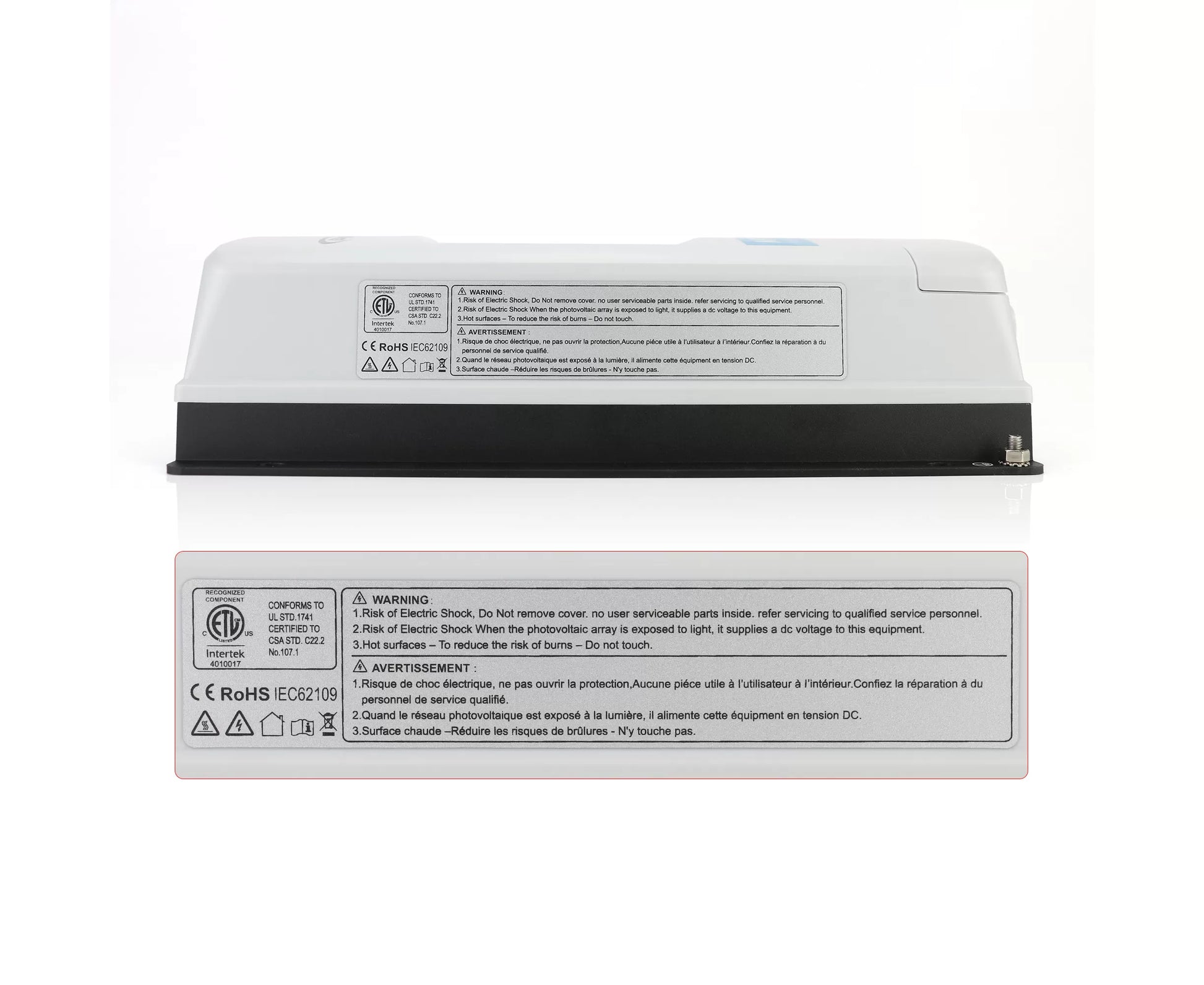

• CE certification(LVD IEC62109, EMC EN3/1-6-61000)

① If using a Lithium battery, the customer should ask help for “PC software” to set the lithium battery parameters
② Ingress of solid objects： Protected against solid objects over 2.5mm
② Ingress of liquids: Protected against falling drops of water, if the case is disposed up to 15 from vertical

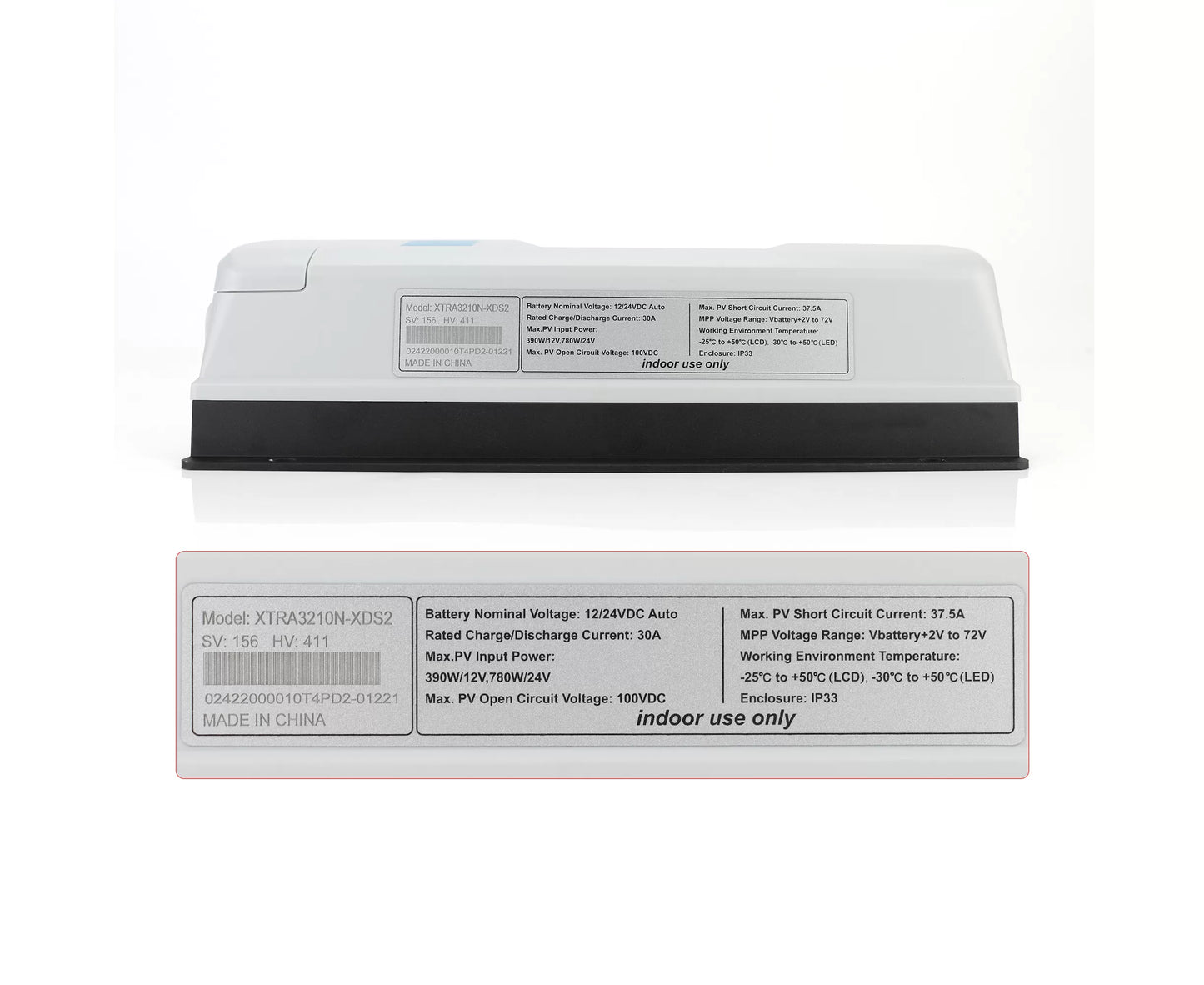

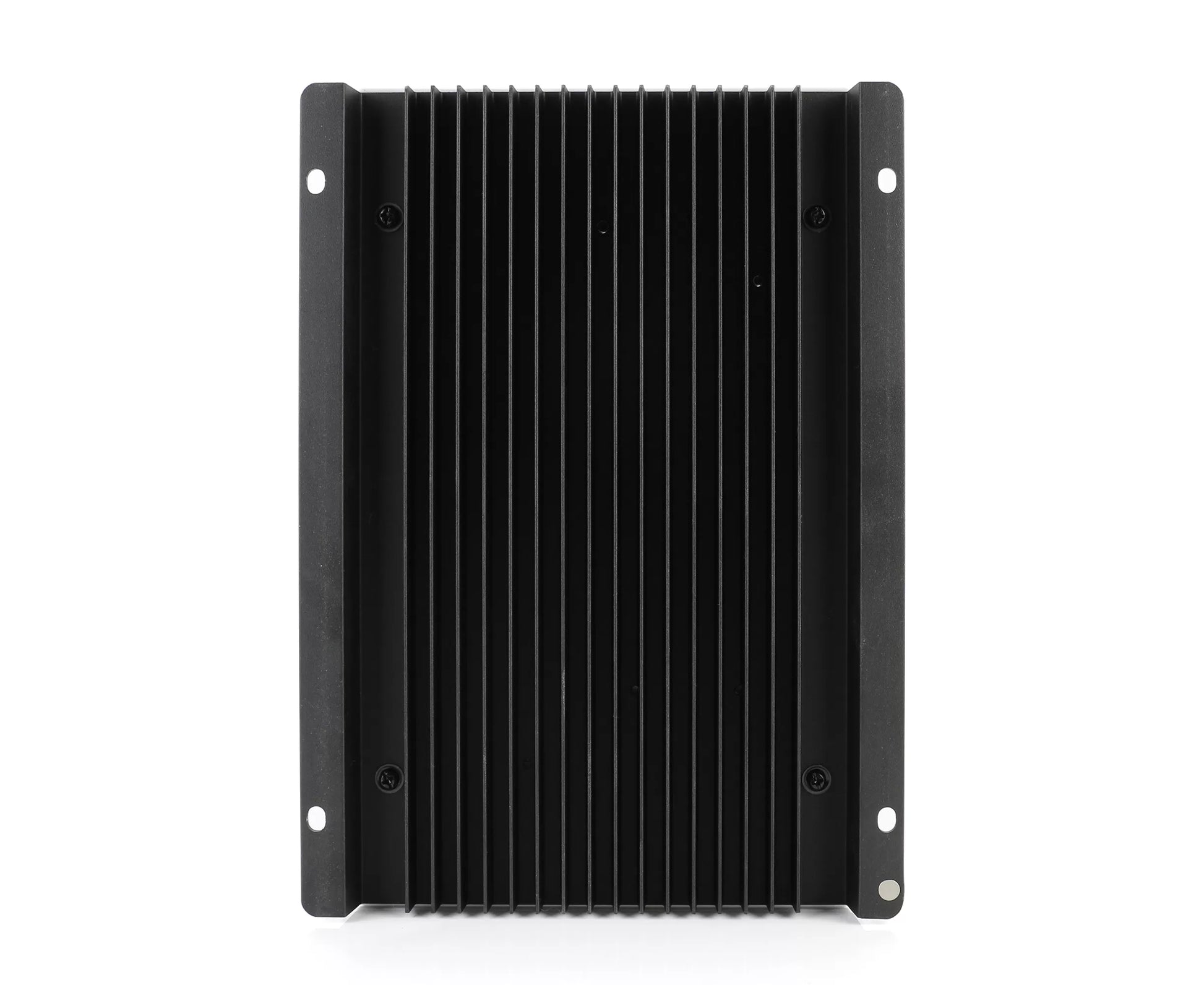

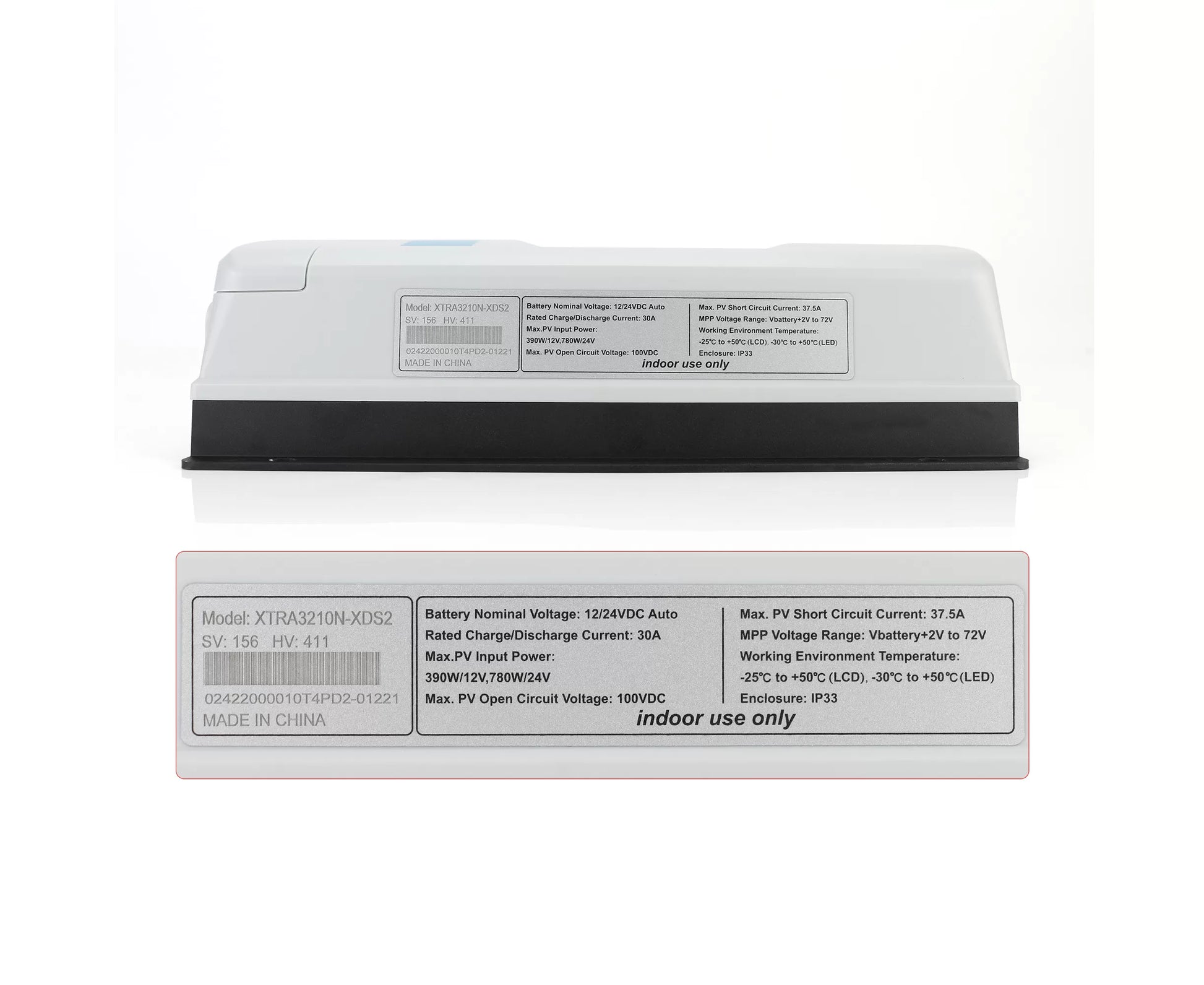

Xtra mppt controller's charging parameter System nominal voltage: 12/24/36/48VDC Auto(When a lithium battery is used, the system voltage can’t be identified automatically.) Rated charge/discharge current: 30A Battery voltage range: 8～32V Max. PV open circuit voltage: 138V At 25℃/77°F environment temperature, 150V At minimum operating environment temperature Max. PV input power: 1560W when battery system is 48V,1170W when battery system is 36V,780W when battery system is 24V, 390W when battery system is 12V. Battery type: Lead-acid battery(Sealed/Gel/Flooded/User), Lithium battery(LiFePO4, Li(NiCoMn)O2, User) Mounting dimension: 200×176mm with Φ5mm Mounting hole size Recommended cable: 8AWG(10mm2)

Accessories support: Remote Temperature Sensor/USB to RS485 cable/ MT50 Remote Meter/WIFI-eBox-WIFI-01/Bluetooth-eBox-BLE-01( all the accessories is optional, doesn't include) Protection: PV Over Current/power, PV Short Circuit, Battery Over Voltage, Battery Over Discharge....etc Temperature compensate coefficient: -3mV/℃/2V (Default) Grounding: Common negative Discharge circuit voltage drop: ≤0.23V RS485 interface: 5VDC/200mA(RJ45) LCD backlight time: Default:60S,Range:0~999S(0S:the backlight is ON all the time) Working environment temperature: -25℃～+50℃ Relative humidity: ≤95%, N.C. Enclosure: IP32(3-protection against solid objects: protected against solids objects over 2.5mm. 2-protection against liquids: protected against direct sprays up to 15°from the vertical)

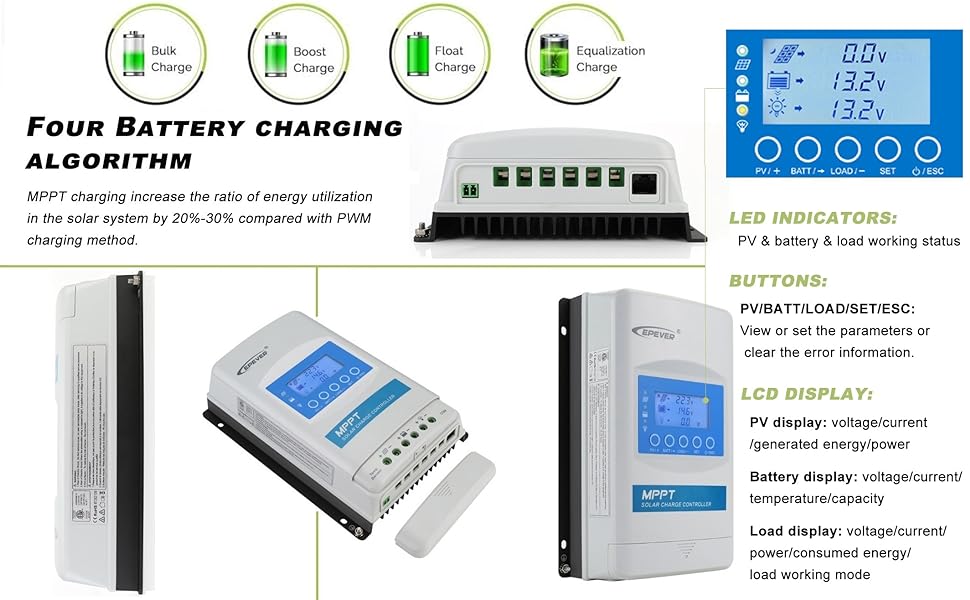

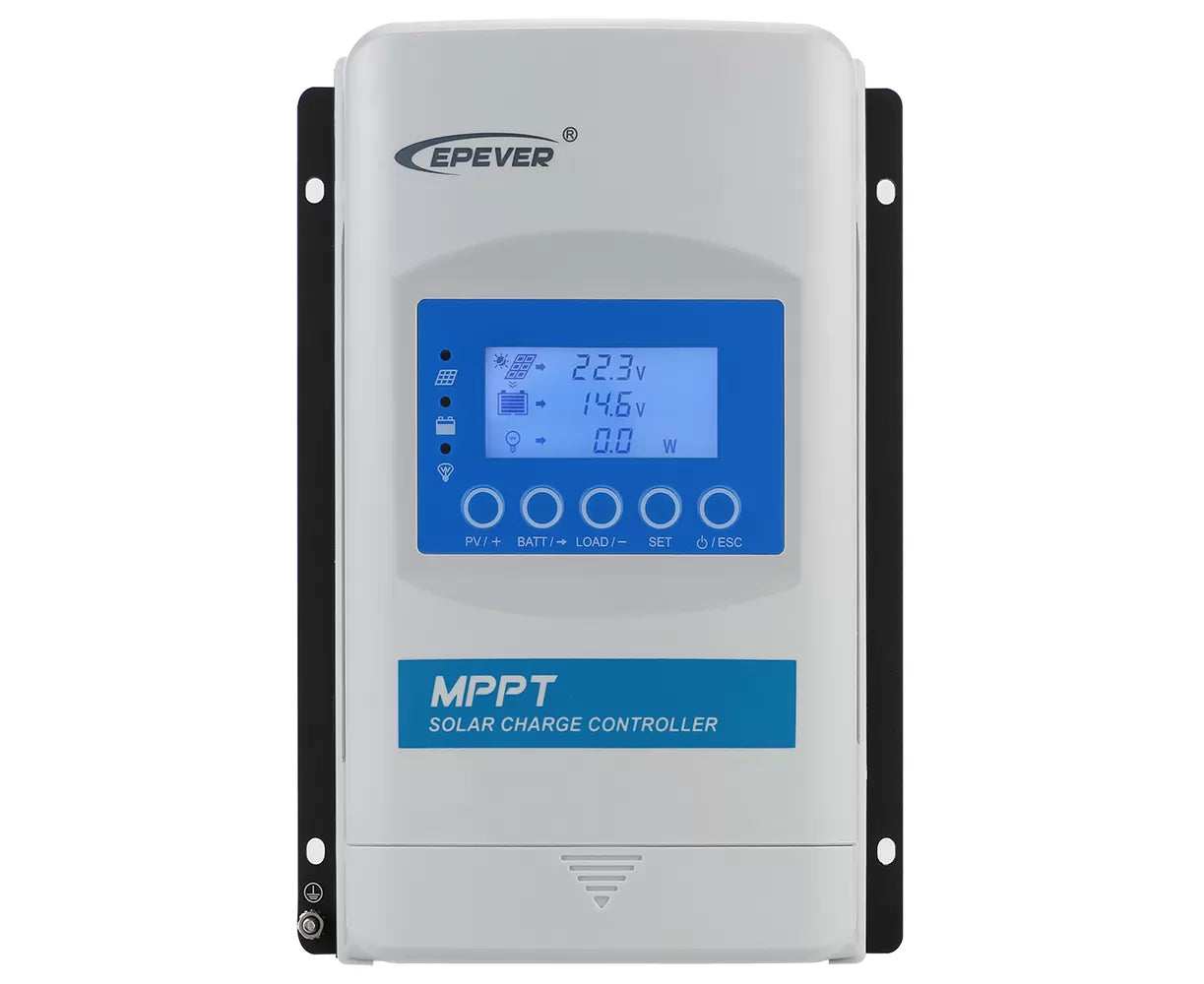

XTRA3415N-XDS2 Epever 30A 150V XTRA Series MPPT solar charge controller features Bulk Boost Float Equalization charging algorithm, increasing energy utilization by 20-30% compared to PWM. It includes LED indicators for PV battery & load working status, a button to view or set parameters and learn error information, and an LCD display showing PV voltage/current, generated energy/power, battery state, MPPT temperature/capacity, and load working mode.

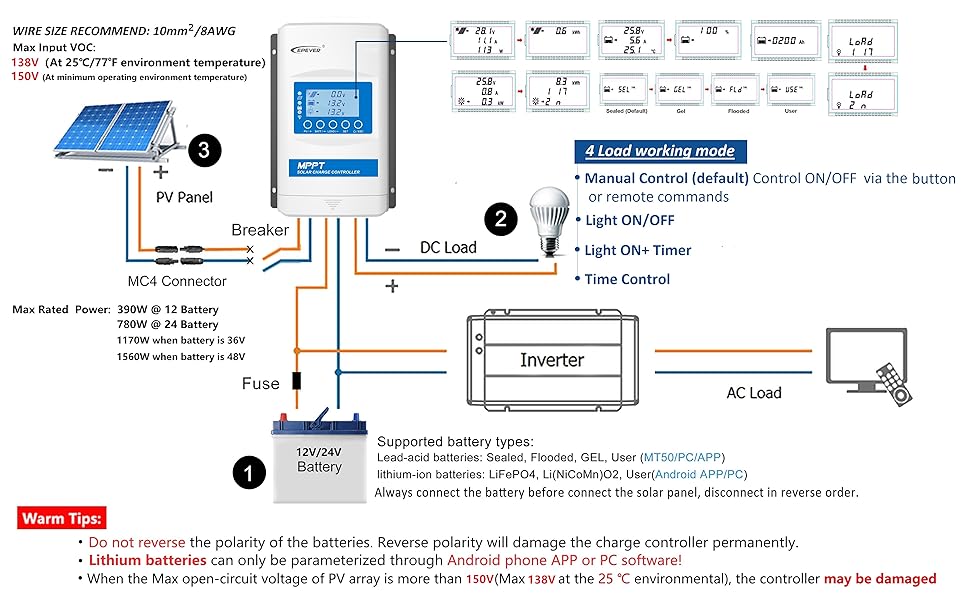

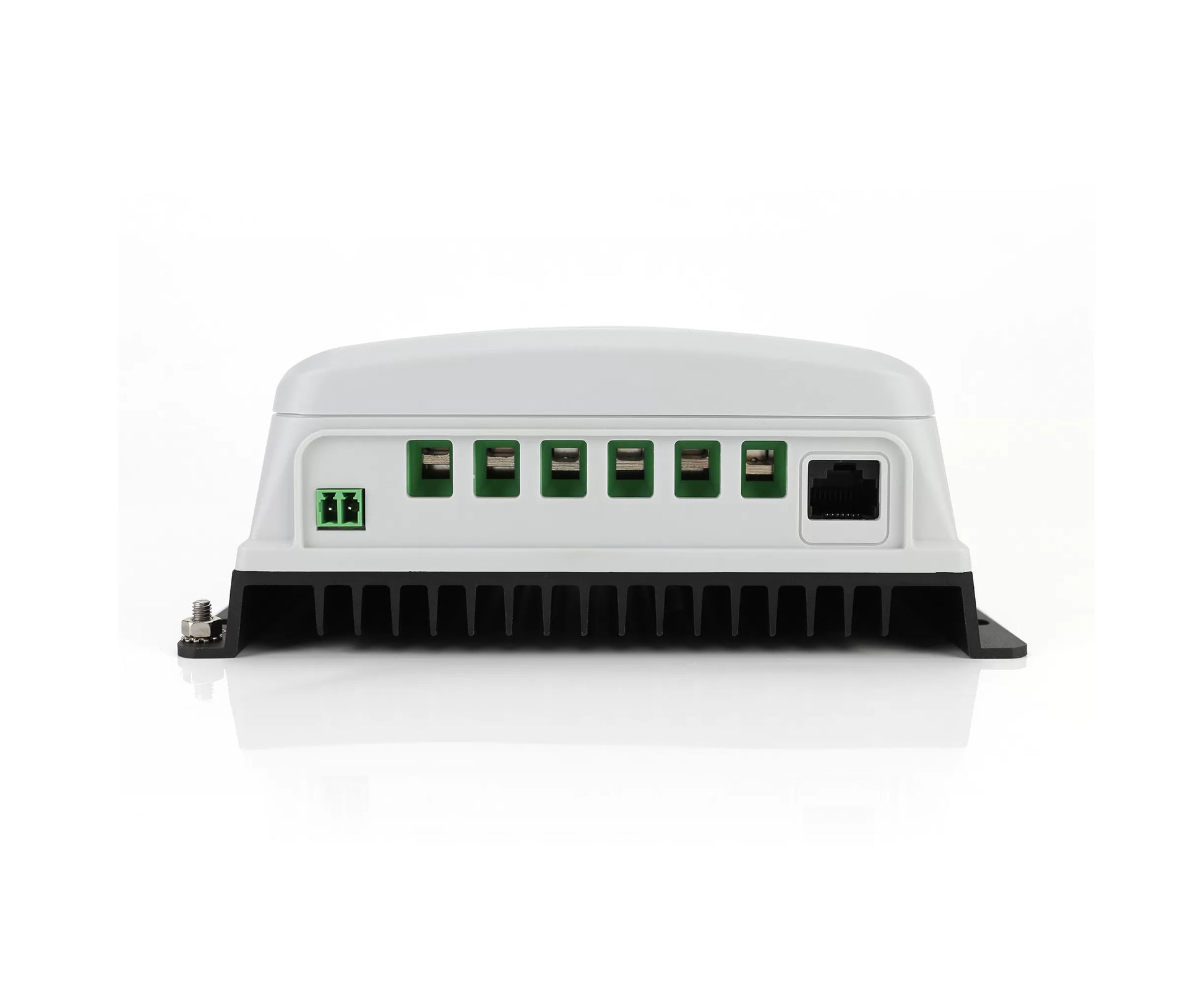

TIPS WHEN WIRING YOUR SOLAR CHARGE CONTROLLER

1. Turn the adjusting terminal counterclockwise, Insert your wire into the new opening between the plate and the "top" of the terminal hole.
2. Make sure your battery must be at least 60% charged prior to connecting to the controller, or the controller can't read your battery correctly.
3. Connect the battery to the controller first!! (When LCD power is on, means the controller reads the battery successfully, if not please reconnect it.)
4. Connect your solar panel array to the controller after Controller's LCD power is on.
5. Never connect your solar panel array to the controller when the LCD display doesn't power on(Which means your battery does not connect successfully).
6. Careful your input power and voltage does not exceed the max.
7. Do not reverse the polarity when wiring.
8. Lithium batteries setting only can be parameterized via Phone APP or PC software. (Accessories optional, doesn't include)

XTRA3415N-XDS2 DataSheet

Epever 30A 150V MPPT solar charge controller DataSheet
