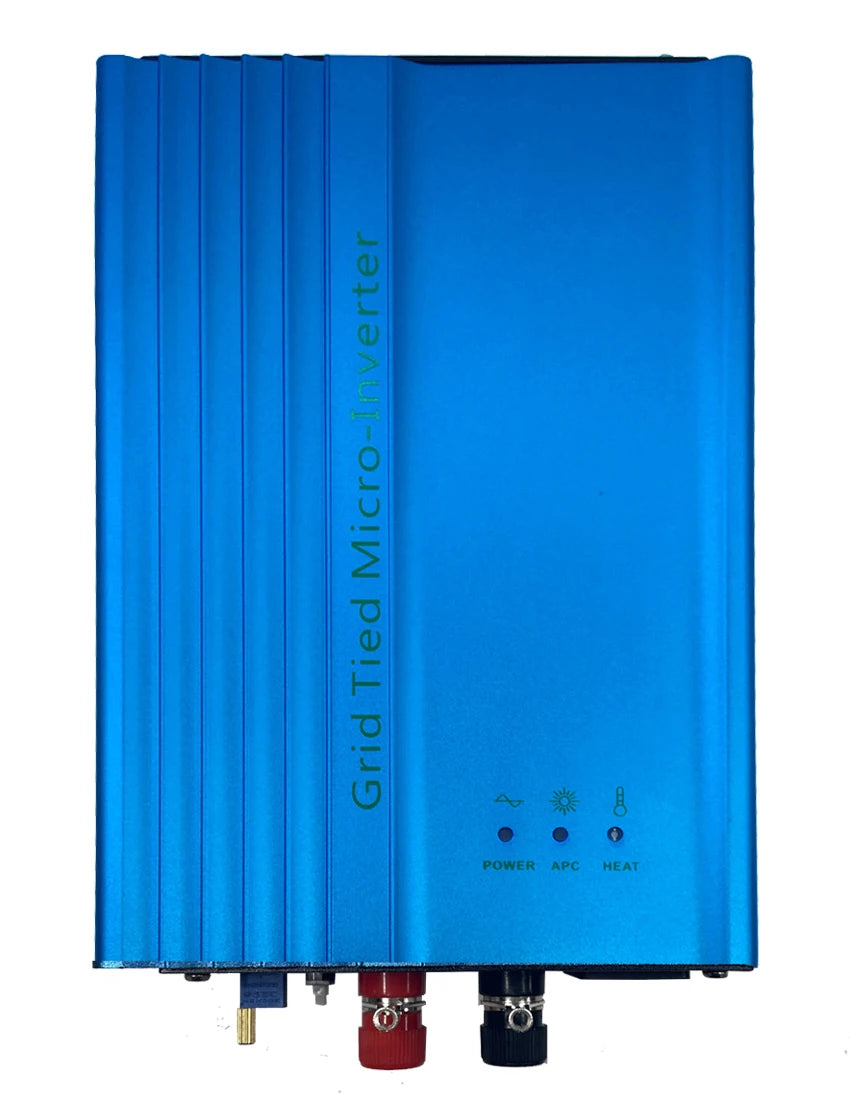

500W Grid Tie Inverter - DC16V-28V MPPT Pure Sine Wave AC230V Solar Panel,Adjutable 12V Battery Discharge

500W Grid Tie Inverter - DC16V-28V MPPT Pure Sine Wave AC230V Solar Panel,Adjutable 12V Battery Discharge

Regular price $122.30 USD
Regular price Sale price $122.30 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

500W Grid Tie Inverter SPECIFICATIONS

Weight: 1.9kg

Type:: On Grid Inverter

Type: DC/DC Converters

Size: 30x22x12CM

Output Voltage:: 230V(190V~260V)

Output Type: single

Output Power: 500 - 1000W

Output Frequency: 45-53Hz or 55Hz-63Hz

Output Current: 2-5A

Origin: Mainland China

Model Number: GTN-500W

MPPT voltage:: 16-28V/26-42V

Certification: CE

Brand Name: Y&H

Y&H 500W Grid Tie Inverter DC16V-28V MPPT Pure Sine Wave AC230V Output for 12V Solar Panel,Adjutable 12V Battery Discharge


Notice:

The inverter potentiometer is upgraded, and the old model may be received at the time of shipment, or it may be a new model. It does not affect normal use.



Grid Tie Inverter MPPT Range 11-21V.As the DC voltage gets closer to 11V, the inverter works less efficiently.


Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency.


Micro grid tie inverter compatible with 12V battery. Adjustable power 80W-250W output in 12V battery mode.Low voltage battery shutdown ensures that the battery capacity is not depleted. Extends battery life.


Micro Inverter Max Power Point Tracking and Stackable,Island Protection. If the DC connection is loose and causes a short circuit, then smoke may be emitted.The inverter adopts aluminum alloy casing, so there is no fire.

Advanced Anti-island technology.LED indicators distinctively showing status of system.Simple wiring, allowing you to easily obtain clean power.


Description:

The Grid-tied inverter is used in photovoltaic system, it maximises the output of photovoltaic solar energy from solar modules, and allows the energy to be converted and fed through the power utility grid for normal everyday uses.


1.Grid tied inverter uses high speed and high specification MCU from USA, so as to achieve a more efficient working


2.Advanced technology of Multi Power Point Tracking (MPPT) device in our system


3.High efficiency of MPPT is recorded to be over 99%.


4.Parallel connection on input of solar energy battery enable simple adjustment of the


5.power rate for the utility grid.


6.High efficiency on the design of High Frequency Transformer.


7.Advanced Anti-island technology.

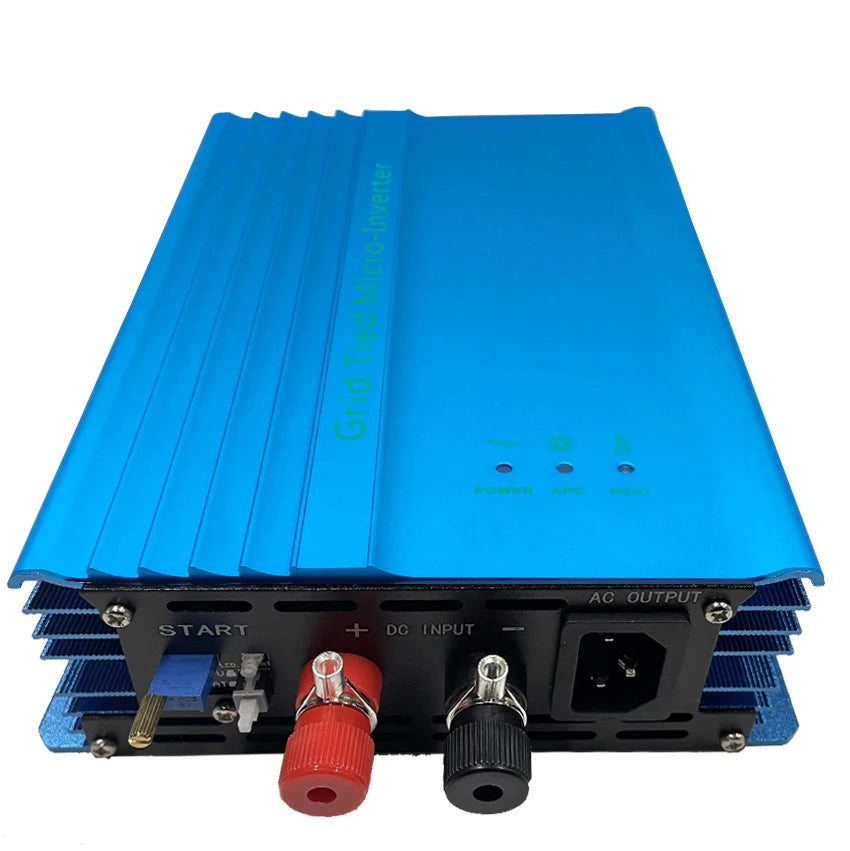

8.High performance EMC technique on system protection, advanced modular design,ensuring safety and reliability on our systems.

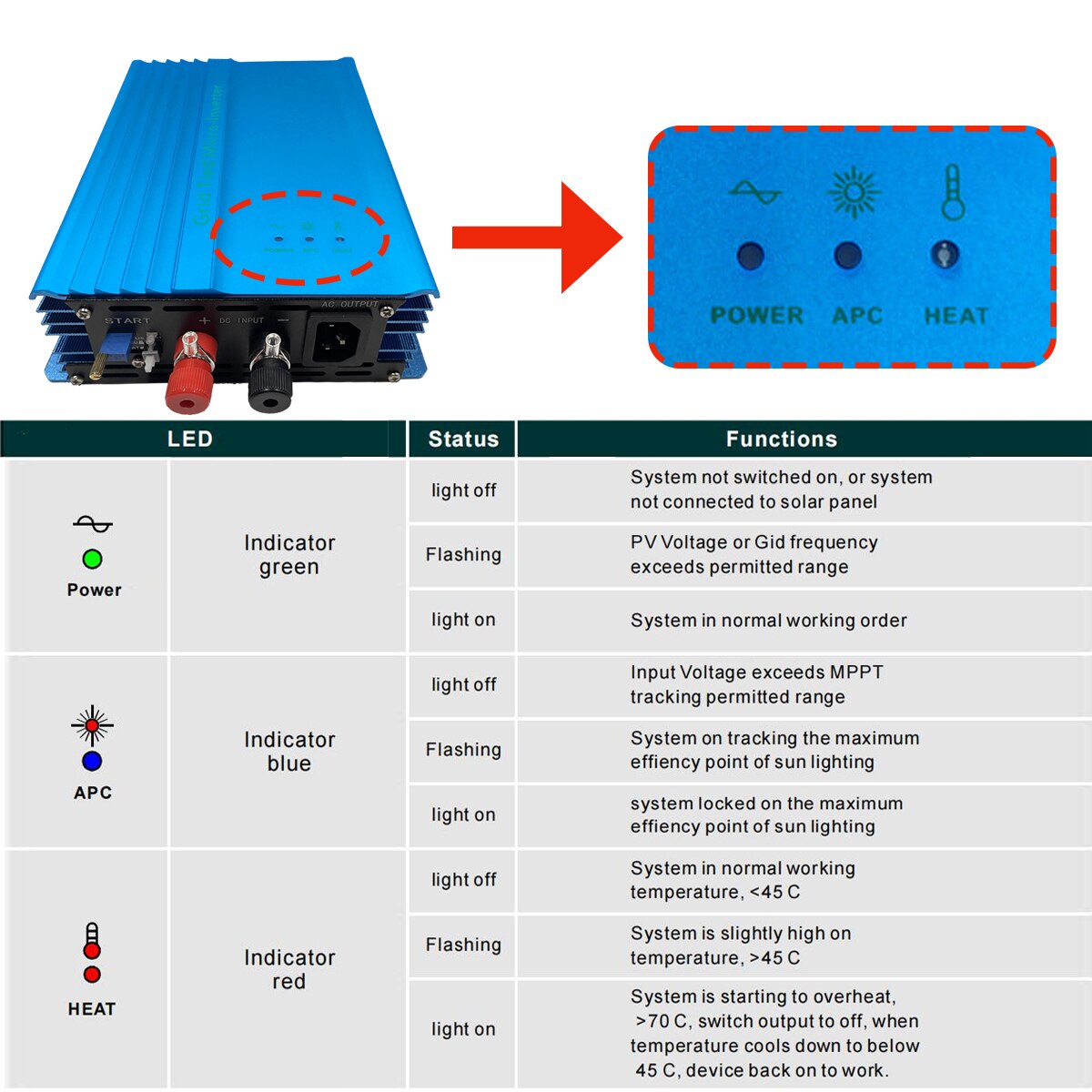

9.LED indicators distinctively showing status of system.


10.Portable size and light weight makes our inverter easy to install,operate,andmaintain.


Battery discharge and grid mode


A, The DC input of the system can be directly connected with the 12V battery, Turn the knob of the inverter to the right into the battery mode, then the tracking function will be turned off, the output power will be adjusted from left to right, At this point the output power can be adjusted from 80W-250W or so arbitrary output to ensure that the inverter can work for a long time in the grid status.


B, when the inverter connected to the battery discharge, if the battery voltage is too low, the inverter will automatically stop and cut off grid output to protect the battery over discharge to extend battery life.

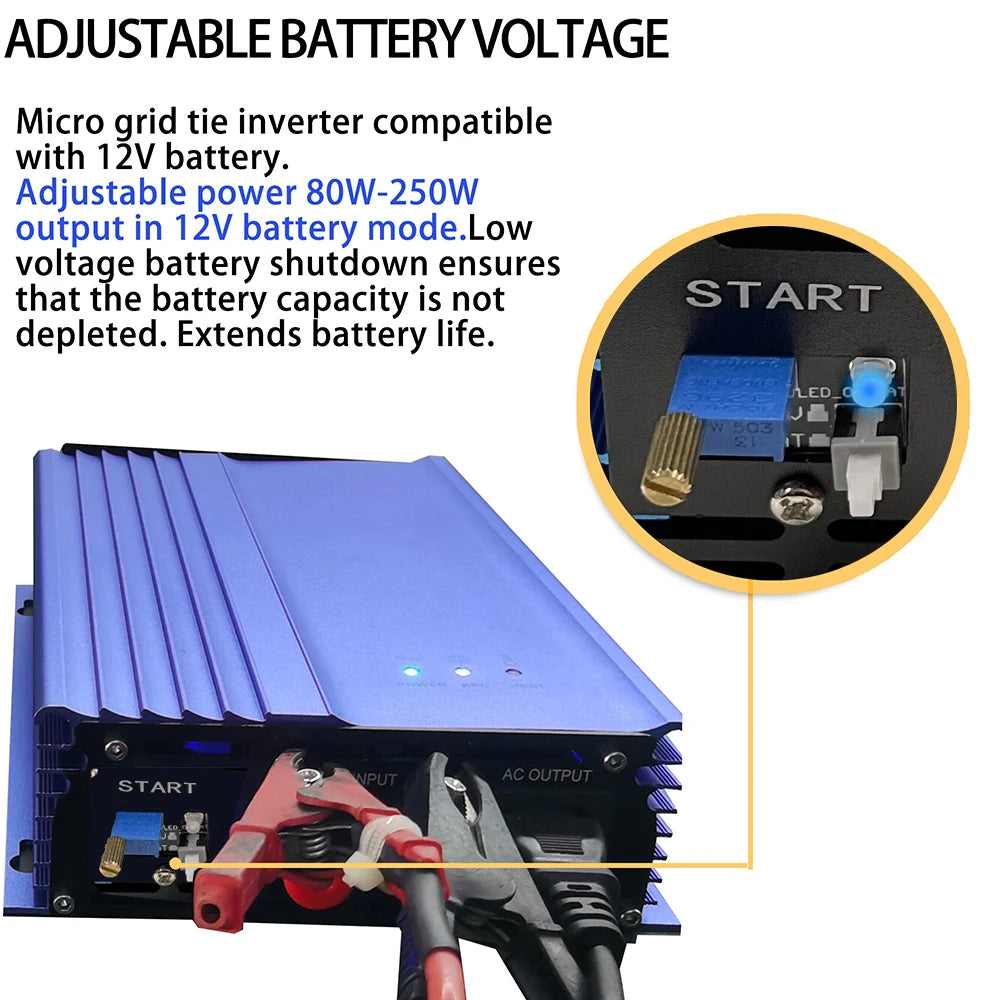

500W Grid Tie Inverter, Adjustable power output: 80-250W from single 12V battery with safety features.

Specifications:


Rated Power:500W


PV open voltage range:16-28V


PV MAX input power:500W


MPPT Voltage range:11-21VDC


Recommended 12V solar panel voltage: Vmp: 18-21V, Voc: 20-24V


MPP tracking efficiency:>99%


MAX.DC current(A):35A


PV mode AC MAX output:400W(Requires 500W real power input)


Suitable for Battery voltage:12V


Battery high voltage protection:14.5V


Battery Low Voltage Protection:11V


Battery mode Max output power:250W(with14V or above)


AC output range:230VAC(190-260VAC)


Frequency range:50HZ/60HZ


Protection:Islanding; Short-circuit; Low Voltage; Over Voltage; Over temperature Protection


LED Show:R&G&B LED


Weigtht:2KG


Packing Size (LxWxH):30x22x12CM


500W Grid Tie Inverter 500W Grid Tie Inverter, 12V solar panel compatible, suitable for home use.

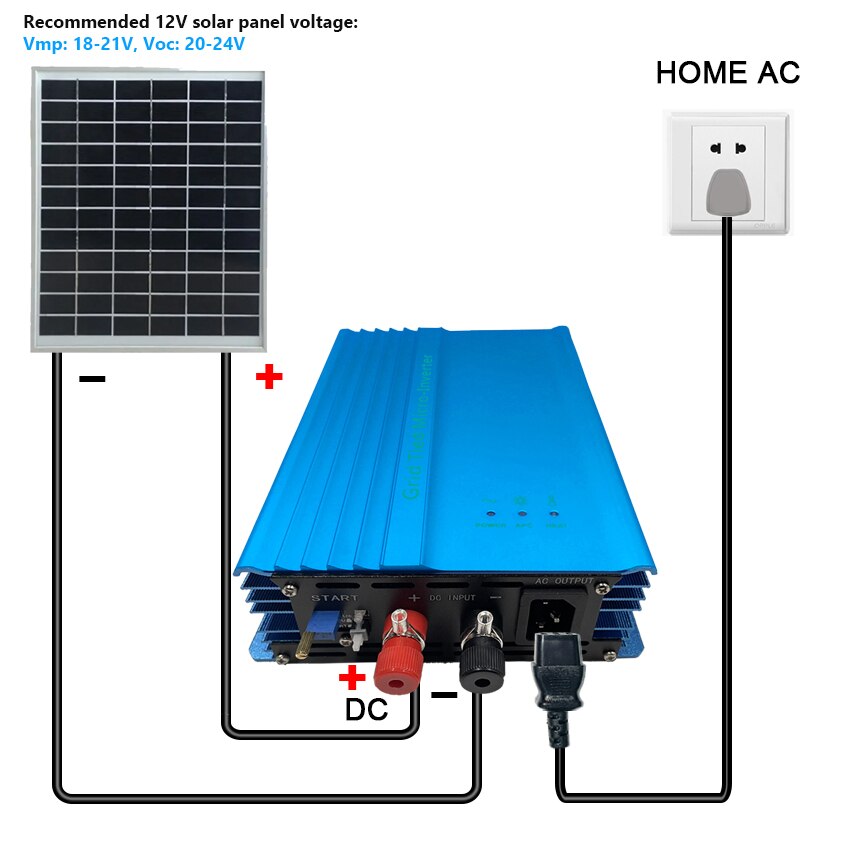

Suitable for 12V solar panels with 18-21V operating voltage and 20-24V open-circuit voltage, ideal for home use.

500W Grid Tie Inverter, No fire risk with our inverter's aluminum casing, even with loose DC connections that could cause shorts.500W Grid Tie Inverter, Portable and easy to install, operate, and maintain, ideal for on-the-go use.500W Grid Tie Inverter, Reliable modular design with high-performance EMC techniques for safe and dependable operation.500W Grid Tie Inverter: Pure Sine Wave, MPPT technology for DC16V-28V solar panels and 12V battery output.

500W Grid Tie Inverter: Pure Sine Wave, MPPT (Maximum Power Point Tracking) technology. Compatible with DC16V-28V solar panels and adjustable discharge to 12V battery. Outputs AC230V pure sine wave power with a range of 90-140V. Ideal for grid-tied systems.

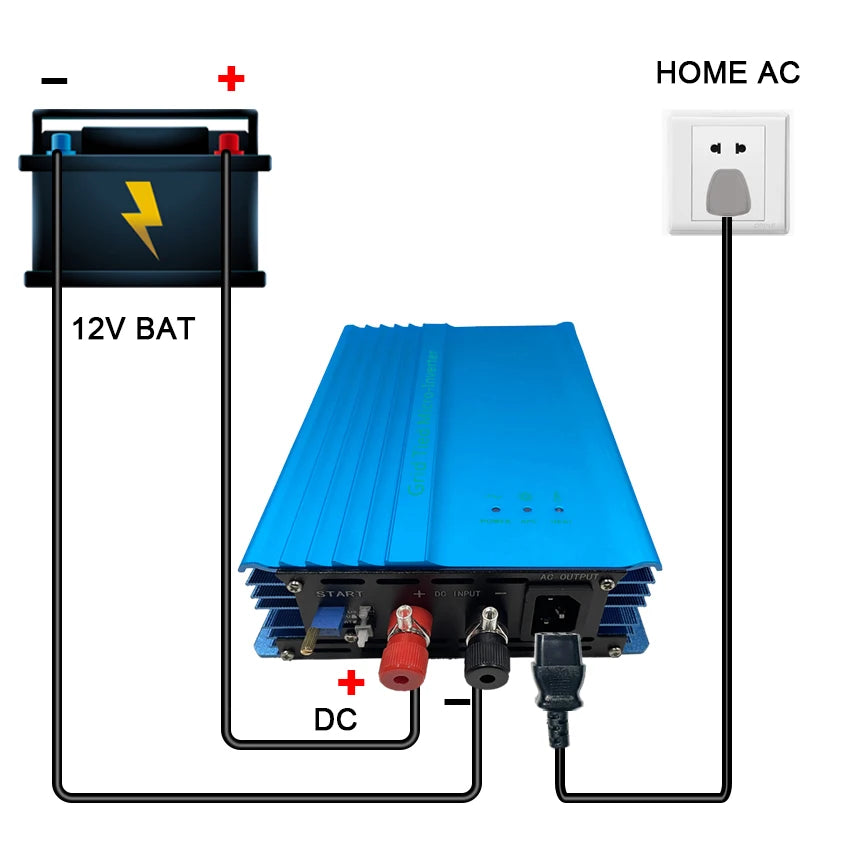

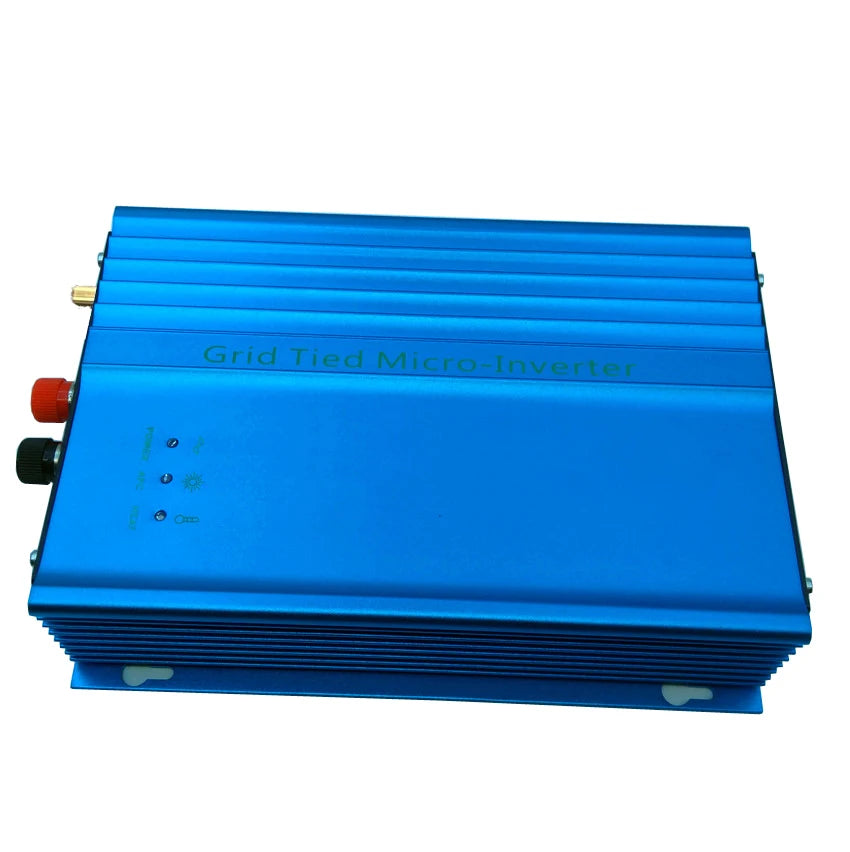

500W Grid Tie Inverter, 500W Grid Tie Inverter, Connect 12V battery and set knob for battery discharge mode to optimize energy use (80W-250W)
