Y-SOLAR PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW

Y-SOLAR PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW

$12.64 USD
$12.64 USD
Sale Sold out
Shipping calculated at checkout.
Current

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

USB output: 5V/3A(Total)

Origin: Mainland China

Model Number: RBL-10A/20A/30A/40A/50A/60A

Maximum Current: 10A/20A/30A/40A/50A/60A

Max solar panel input: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge: 13.7V(defaul,adjustable)

Equalization: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Discharge stop: 10.7V(defaul,adjustable)

Discharge reconnect: 12.6V(defaul,adjustable)

Charging Mode: PWM

Battery Voltage: 12V 24V Auto

Application: Charger Controller,Solar System Controller,Voltage Controller,Solar Working Station,Lighting Controller,Home Solar System

Y-SOLAR PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW

RBL (Ring Binding Loop) sizes: 10A, 20A, 30A, 40A, 50A, and 60A.

This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid ,Gel,Sealed,Flooded,AGM Batteries.It can fully meet your home Photovoltaic system(including home lighting system )requirements

There are optional 10A 20A 30A 40A 50A 60A model

RBL-10A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 120W (12V), 240W (24V);

RBL-20A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 240W (12V), 480W (24V);

RBL-30A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 360W (12V), 720W (24V);

RBL-40A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 520W (12V), 1040W (24V);

RBL-50A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 650W (12V), 1300W (24V);

RBL-60A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 780W (12V), 1560W (24V);

Recently there are many similar products on the market, they have different prices and many sales, but please note that only Y-SOLAR Store's products are 100% genuine and highest quality, we can provide permanent after-sales service, if you are reseller, We can give you free samples and competitive price !!!
Remove software in reverse order to avoid conflicts during uninstallation.

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

Reverse current protected MOSFET with low heat generation

MODEL

RBL-10A

RBL-20A

RBL-30A

RBL-40A

RBL-50A

RBL-60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

48V(for 24V battery) 24V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm

Solar charge and discharge controller for auto systems, regulates 12V or 24V, with dual USB ports.

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!


Large high-definition display with adjustable settings.

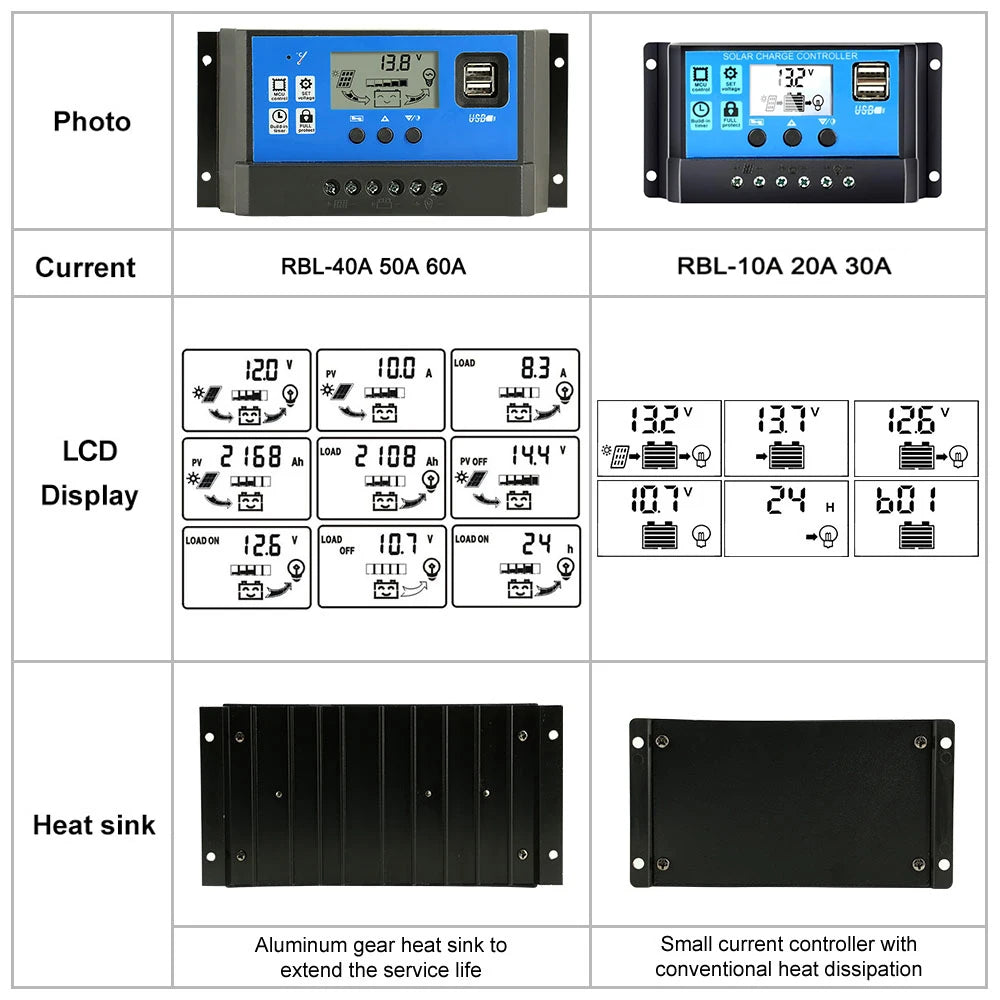

Difference between 10A 20A 30A and 40A 50A 60A

Solar controller with LCD display, USB ports, and adjustable load settings for 12V or 24V solar power systems.

Y-SOLAR PWM Solar Charge and Discharge Controller for 12V/24V systems. Features include dual USB ports, LCD display, and adjustable load settings from 10A to 60A. Includes aluminum heat sink for extended service life. New product.


RBL 10A 20A 30A

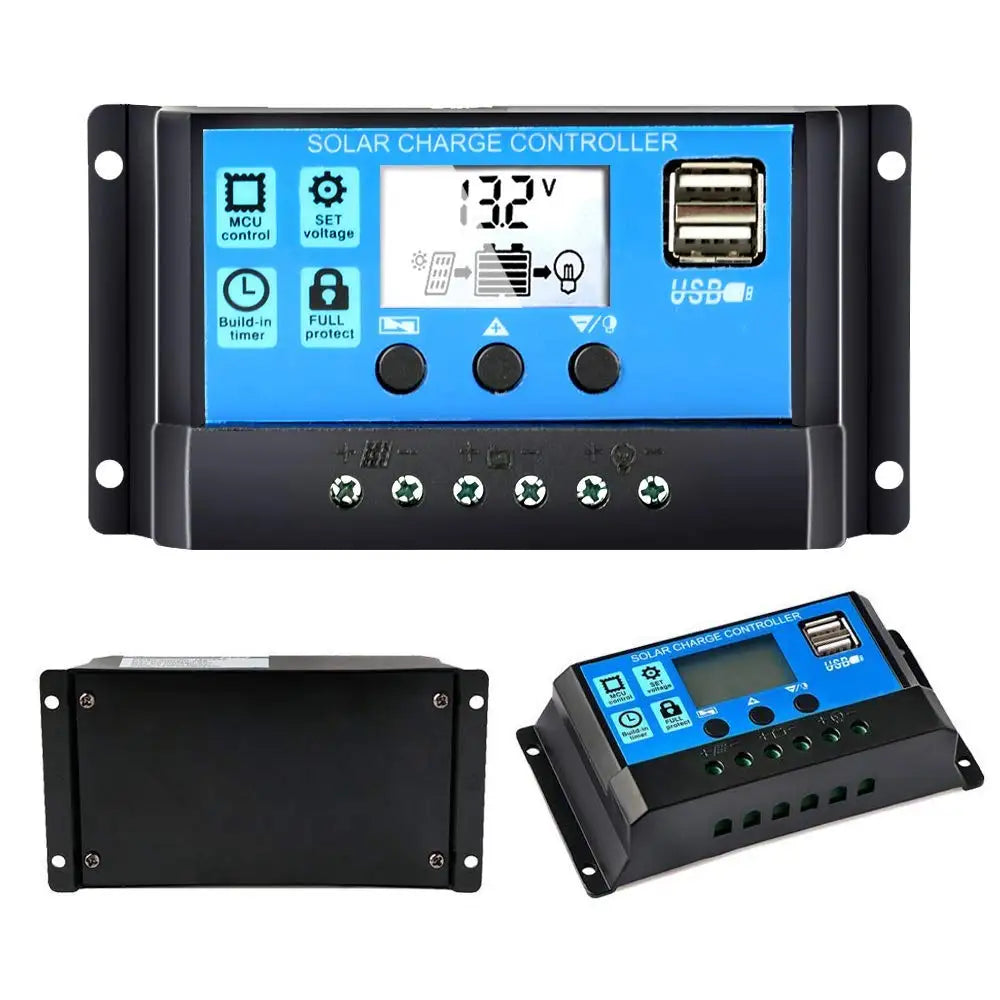

Solar PWM controller with LCD display and USB ports for 12V/24V systems.

Y-Solar PWM controller regulates solar charge and discharge, featuring LCD display, dual USB ports, and built-in timer, suitable for 12V or 24V systems.

Clear LCD display with menu options for adjustable settings, with UP/DOWN buttons and MENU button.

Features a clear LCD display with menu options for adjustable settings. The controller has a built-in full discharge protector and supports solar panel charging, load, and battery terminal connections. Use the UP/DOWN buttons to navigate and adjust values, or press the MENU button to switch between display modes.

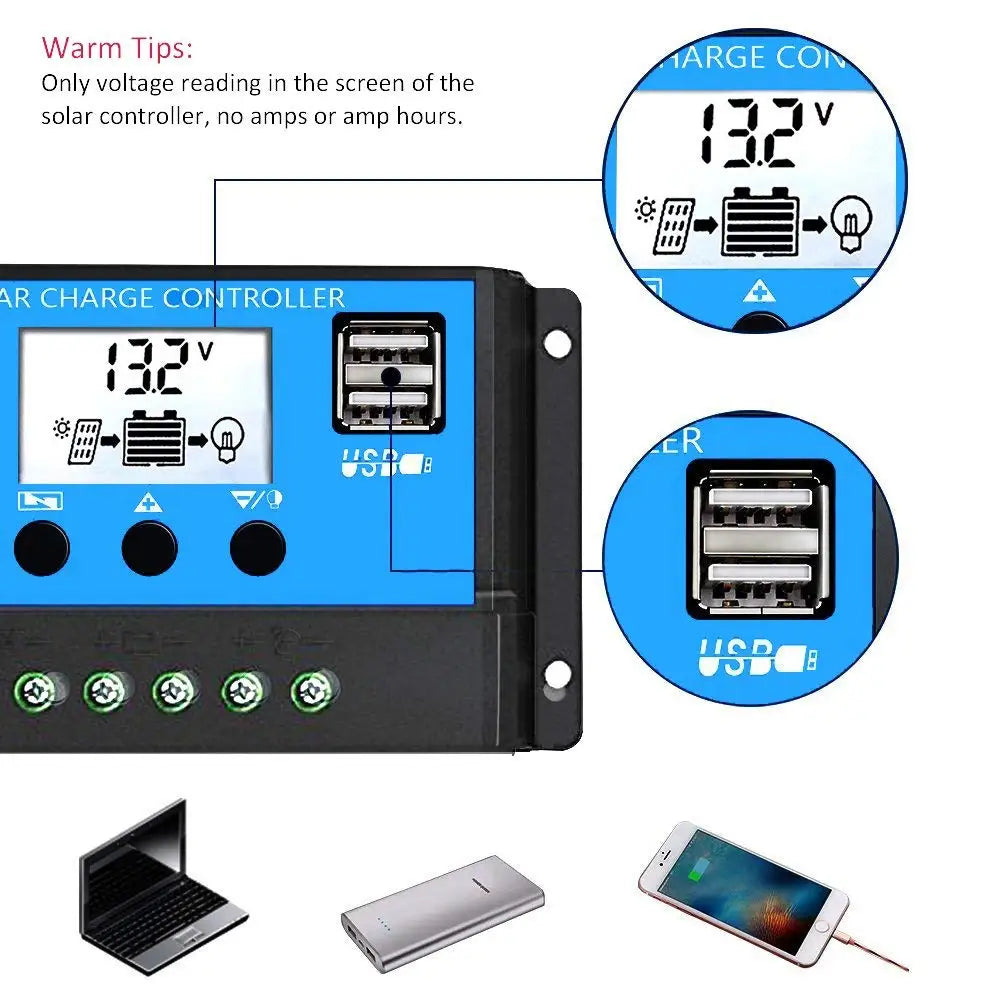

LCD display shows voltage readings, supports charging/discharging via USB output.

Note: The LCD display only shows voltage readings; amperage and amp-hours are not displayed. Supports charging and discharging with USB output.

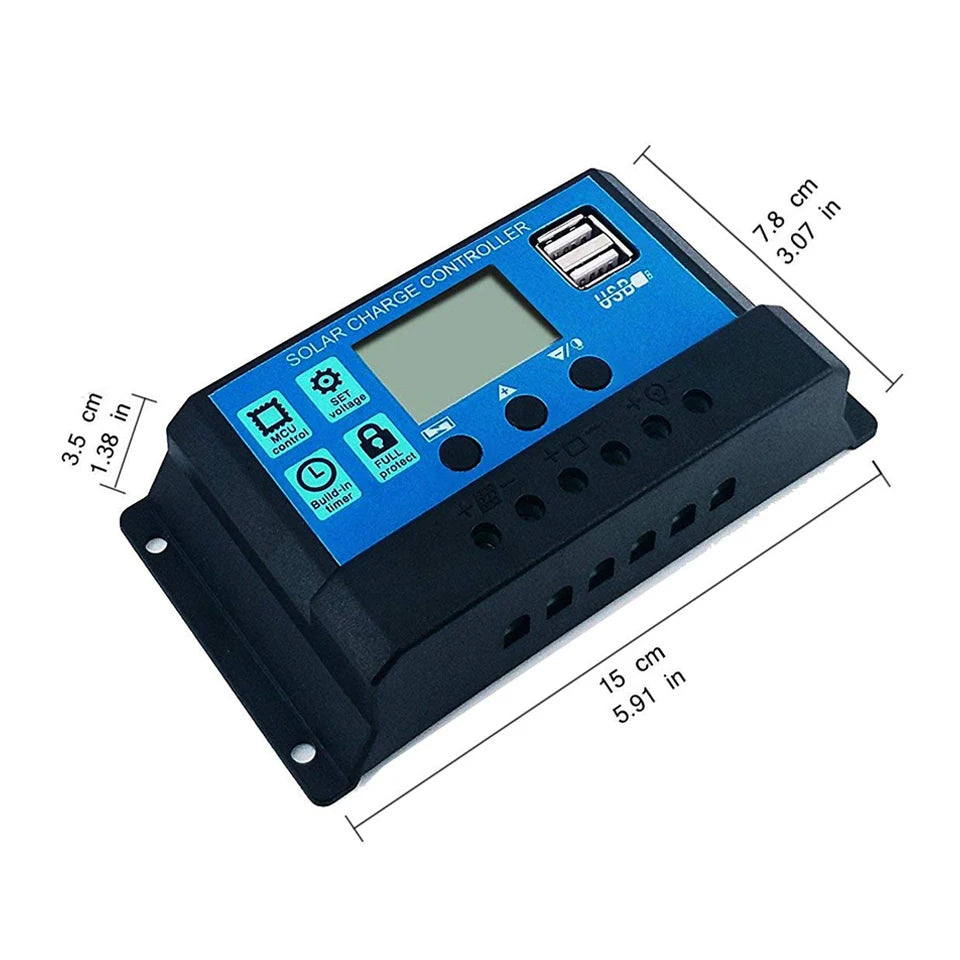

RBL ratings (10A-60A) differ by age group, with higher numbers indicating more restrictive laws.

RBL 40A 50A 60A

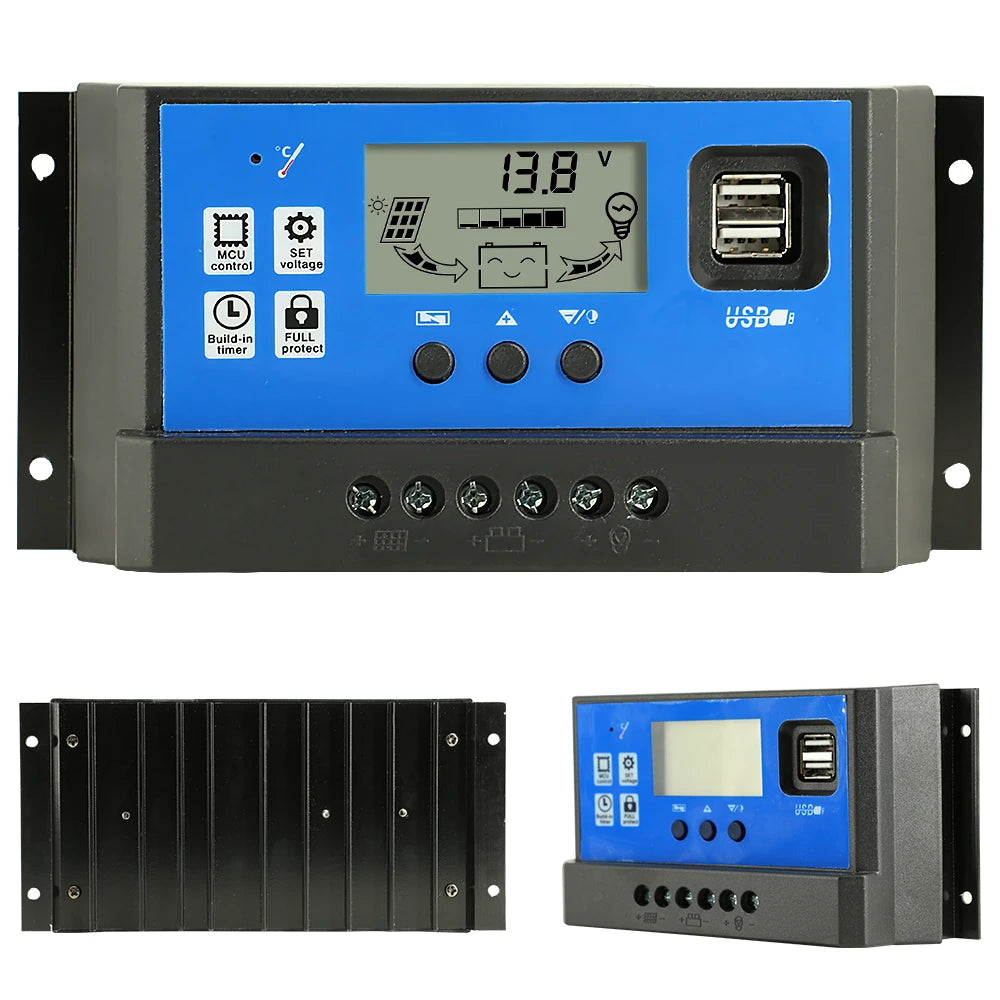

Microprocessor-controlled voltage regulator with built-in overcharge protection and latching.

Microprocessor-controlled voltage regulation with built-in overcharge protection and full-featured latching.

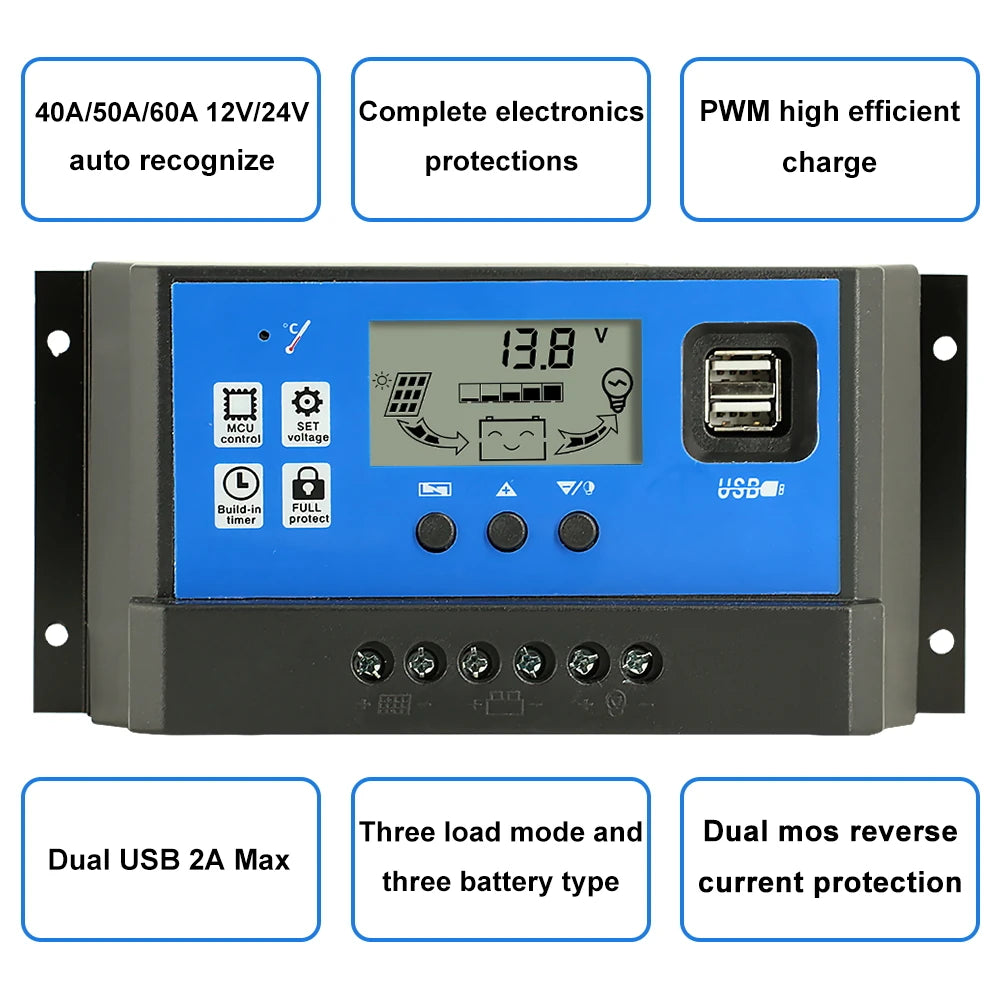

Y-SOLAR's 60A+ solar charge controller for 12V/24V systems with auto recognition and built-in protections.

Y-SOLAR's 60A/50A/40A/30A/20A/10A solar charge controller regulates 12V or 24V systems with auto recognition, built-in protections and MCU set control. It features USB output, timer function, and dual MOSFET reverse protection.

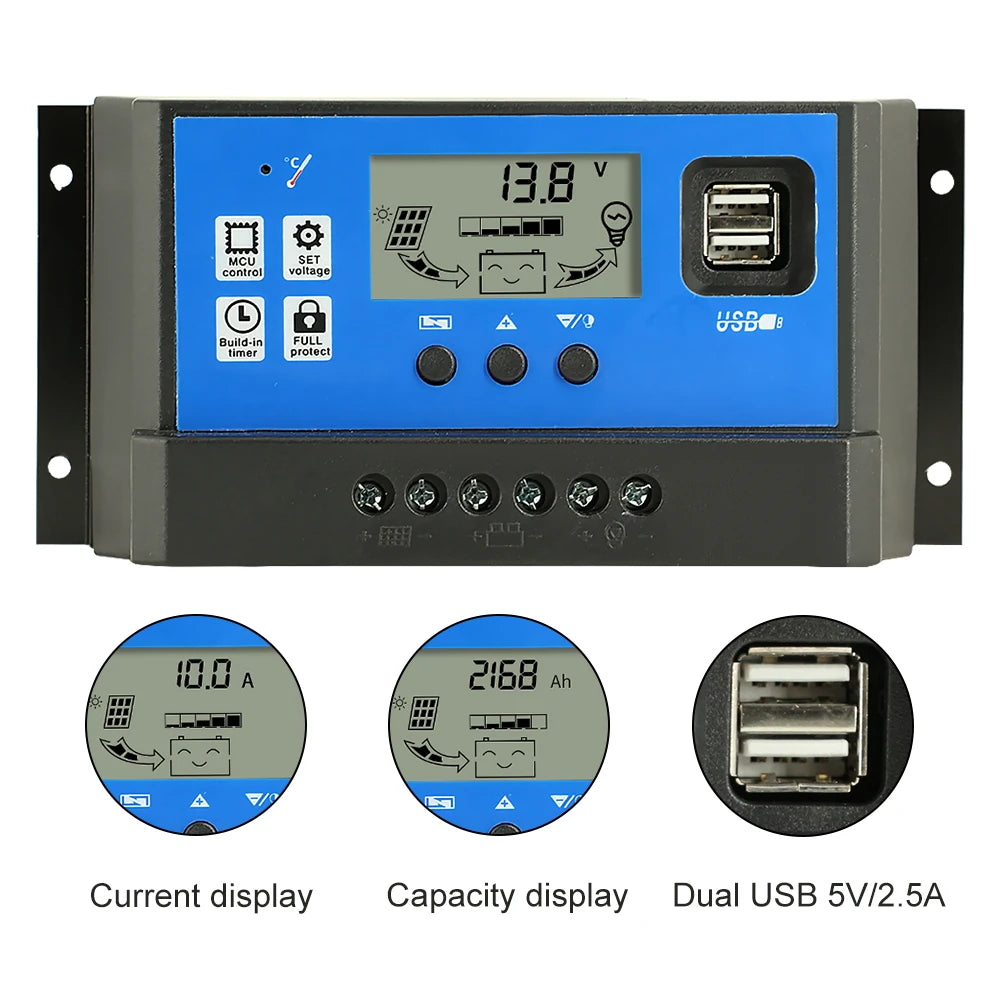

MCU-controlled charger with LCD display showing capacity and current, featuring dual USB ports.

Featuring MCU-controlled voltage, this charger displays capacity and current with full-color LCD screen. Includes dual USB ports for 5V charging at 2.5A each.

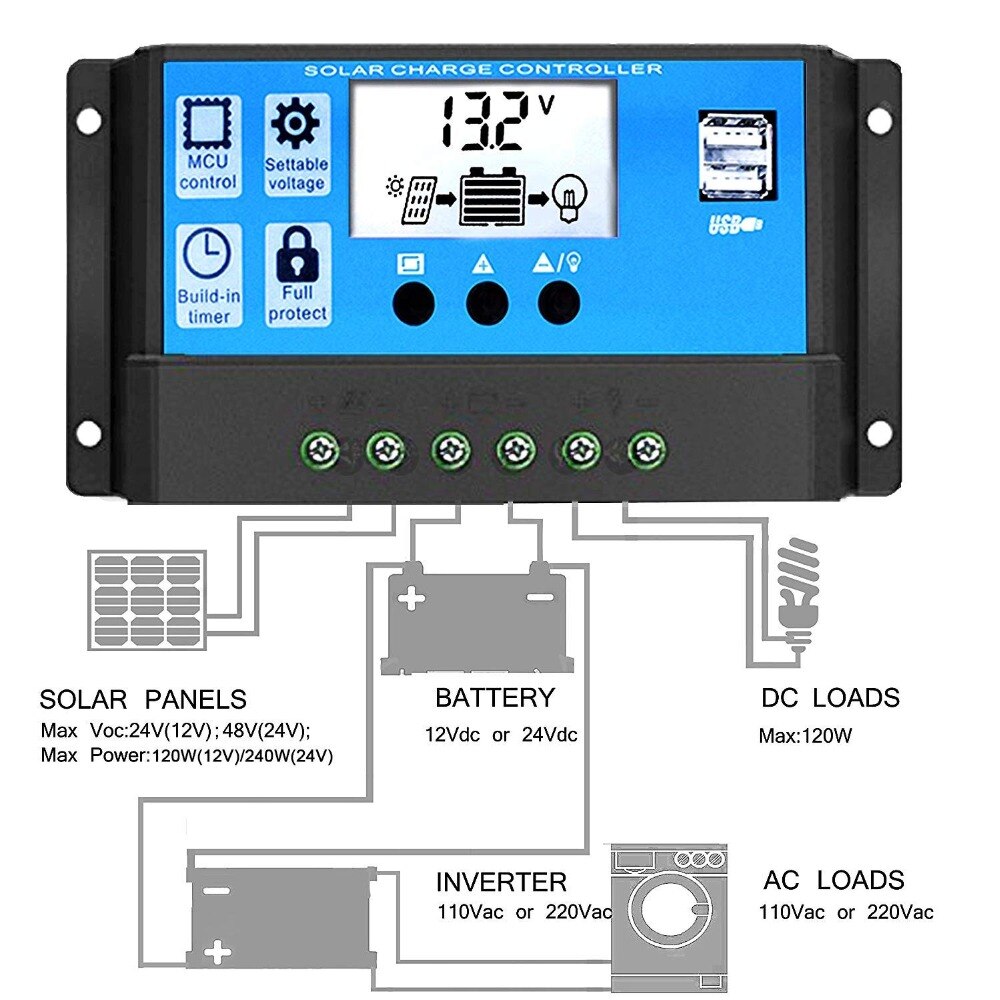

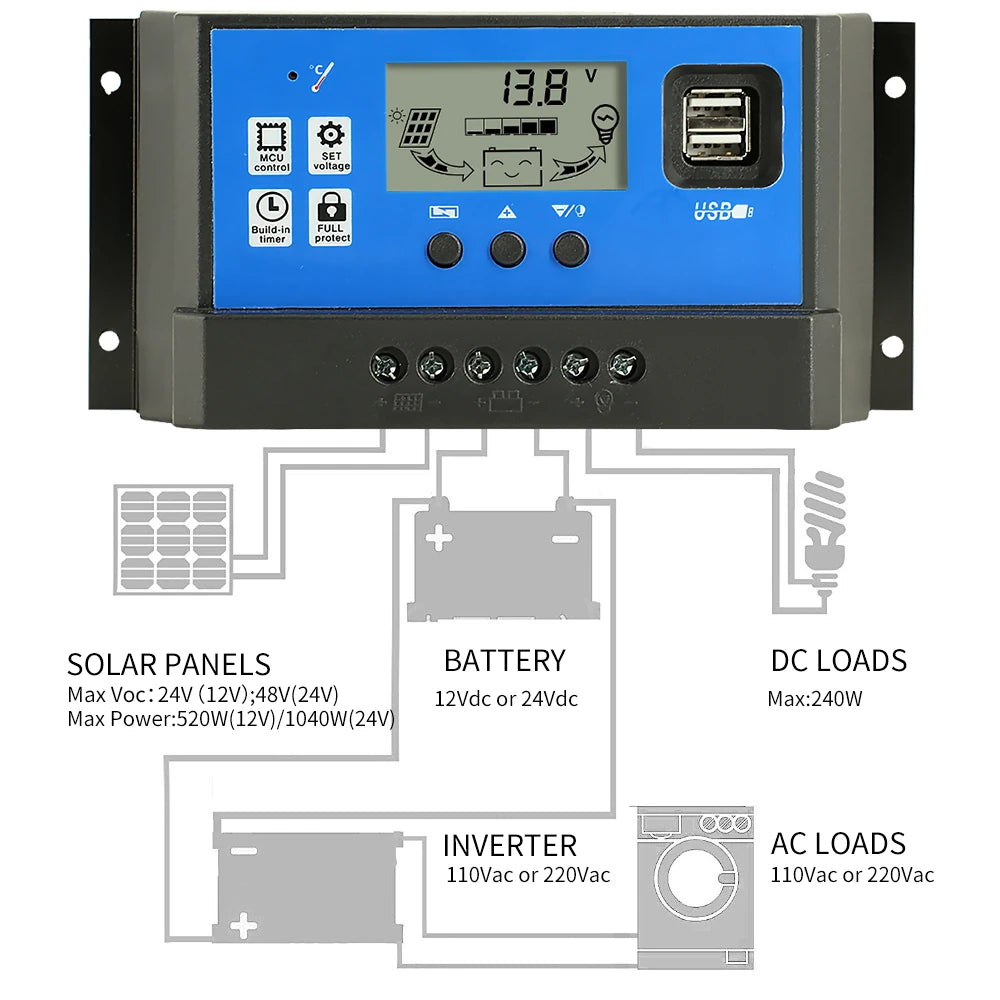

Solar panel regulator with adjustable output voltage and DC/AC inverter for up to 240W power.

Controlled by an MCU, this device regulates voltage for 3 solar panels, batteries, and DC loads. It can handle a maximum voltage of 24V (12V) or 48V (24V). The output voltage is adjustable between 12Vdc and 24Vdc, with a maximum power capacity of 240W. Additionally, it features an inverter for AC loads, supporting outputs of 110Vac or 220Vac.

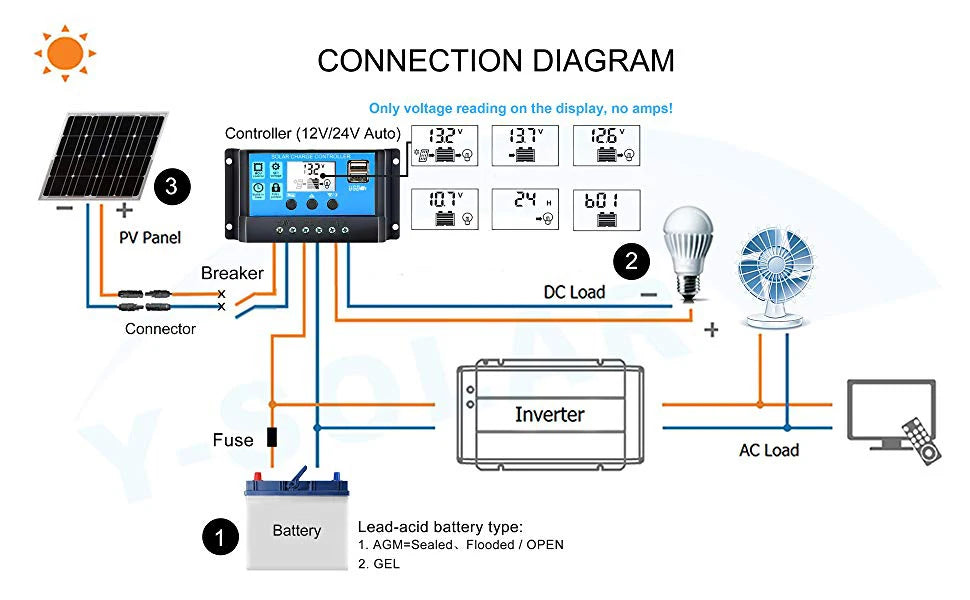

Controller displays voltage readings, suitable for solar panels and lead-acid batteries.

Connection Diagram: This controller (12V/24V auto) displays only voltage readings, not amps. It supports PV panels with breakers and DC load connectors. Note: Inverter fuse and AC load are for lead-acid batteries (AGM-Sealed or Flooded).

Connecting consumer to charger, highlighting positive (+) and negative (-) terminals.Controller for solar panels, regulates charging/discharging, features LCD display & USB ports, adjustable settings.

Y-Solar PWM Charge and Discharge Controller for solar panels, compatible with 12V/24V systems. This controller regulates solar charging and discharging, featuring LCD display, dual USB ports (5V), and adjustable settings for optimal system performance.
