Z10 - PowMr 10A PWM Solar Charge Controller

PowMr 10A PWM Solar Charge Controller Quick Info

Brand: PowMr

Lithium Battery Activation: No Lithium Batteries Activation

Battery Voltage: 12V, 24V

Battery Type: Flooded Batteries, Gel Batteries, Lead-acid Batteries, User Mode

Charging Current: 10 Amps

Ground Type: Positive Ground

Solar Panel Max Input Power: 0-240W

Solar Panel Max Input Voltage: 50V

Z10 - PowMr 10A PWM Solar Charge Controller Details

PowMr Z10 10A Solar Charge Controller 12V 24V Auto Dual USB 5V Solar charger Regulator Factory Directly Selling

For Z10 10A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)

For Z20 20A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)

For Z30 30A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)

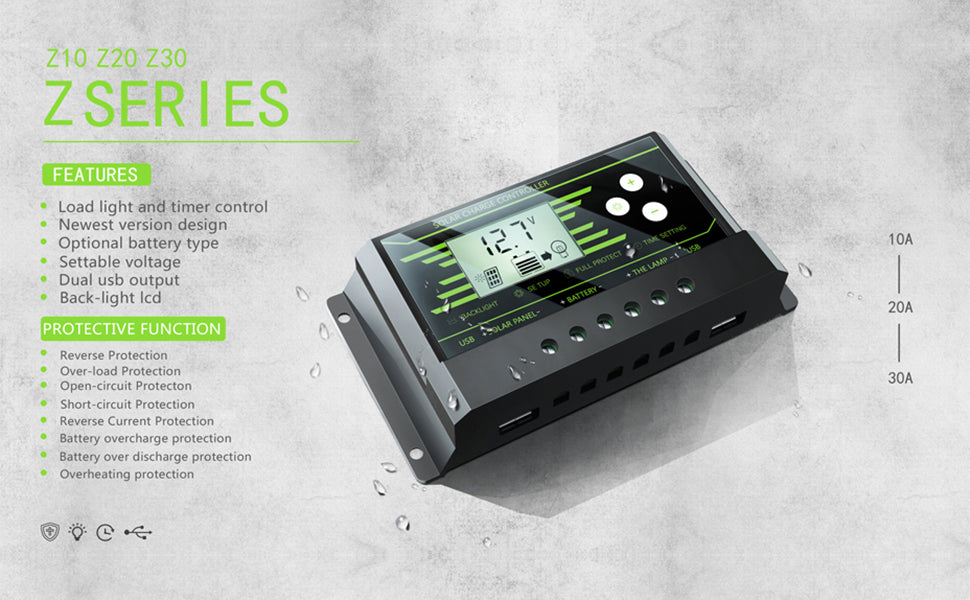

Features:

• 10amp 12V/24V auto, High PWM efficiency 3-stage charge management:Boost,equalization,floating charge.
• Dual USB output, built-in industrial micro, Material environmental protection.Using a unique reverse current protection, low heat production, saving power.
• Backlight LCD display PV/Battery/Load working status. adjustable Low voltage discharge, Floating voltage, Low voltage recharge, Load mode. Power-off memory function.
• 3 lead acid battery type:Gel,Agm,Sealed. 3 adjustable load modes:light mode,light+timer mode,manual mode.

4-Stage charging(Boost, ABS, Equalization, Float), and equipped with industrial-grade STM 8 microprocessor to prolong your battery life cycle. Dual USB can give your electronic product max 5V 2.5A. This solar controller backlight display PV/Battery/Load charge and discharge parameter. like the fourth picture, adjustable Floating voltage/LVD/LVR/Timer according to needs with power-off-memory function. This solar charge controller is fit Lead-acid batteries(OPEN, AGM, GEL) with multiple load timer. Load should be DC. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically. Eight PWM solar charge controllers Protection:Power off memory /Dual MOSFET Reverse current /over heat /Under-voltage discharge /short-circuit /open-circuit / over-load /over-charging protection.more safe for home, industrial,commercial etc.

Solve charging woes with PowMr's 10A PWM Solar Charge Controller, ensuring smooth power transmission and efficient energy management.

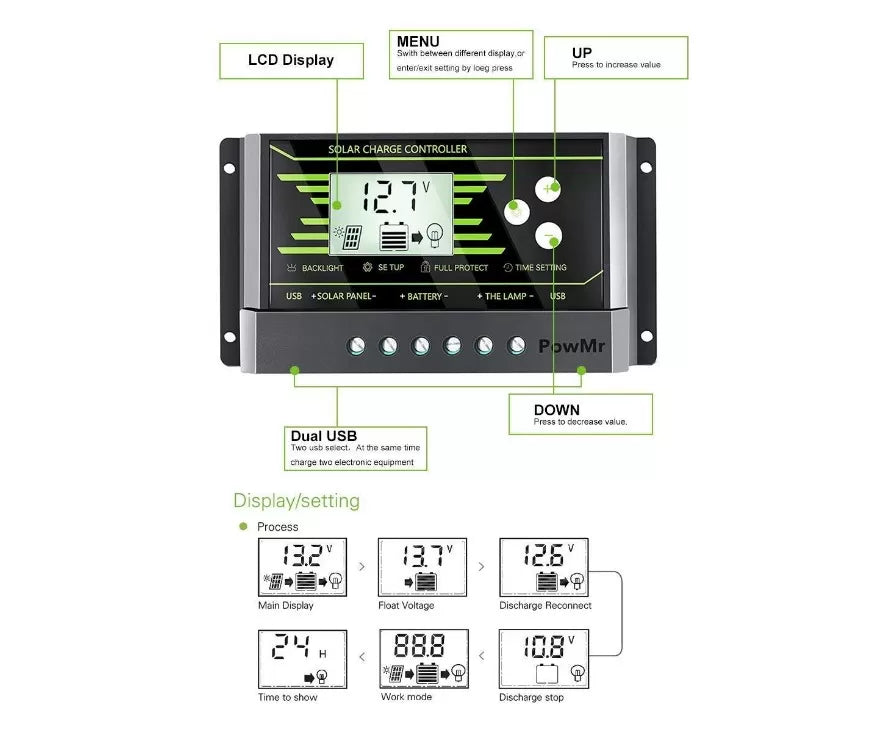

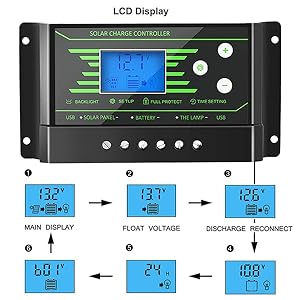

Display/Setting The battery positive and negative pole according to the icon access controller, the control er will automatically detect the battery voltage, the load positive and according to the icon access controller, pay attention, not to negative pole answer, the solar panel according to the icon access controller. please strictly follow the above order to access, otherwise, it may damage the controller or other components; the disassembly sequence is contrary to the wiring order. 12V system with 17.5V solar panels,24V system with 36V solar panels.

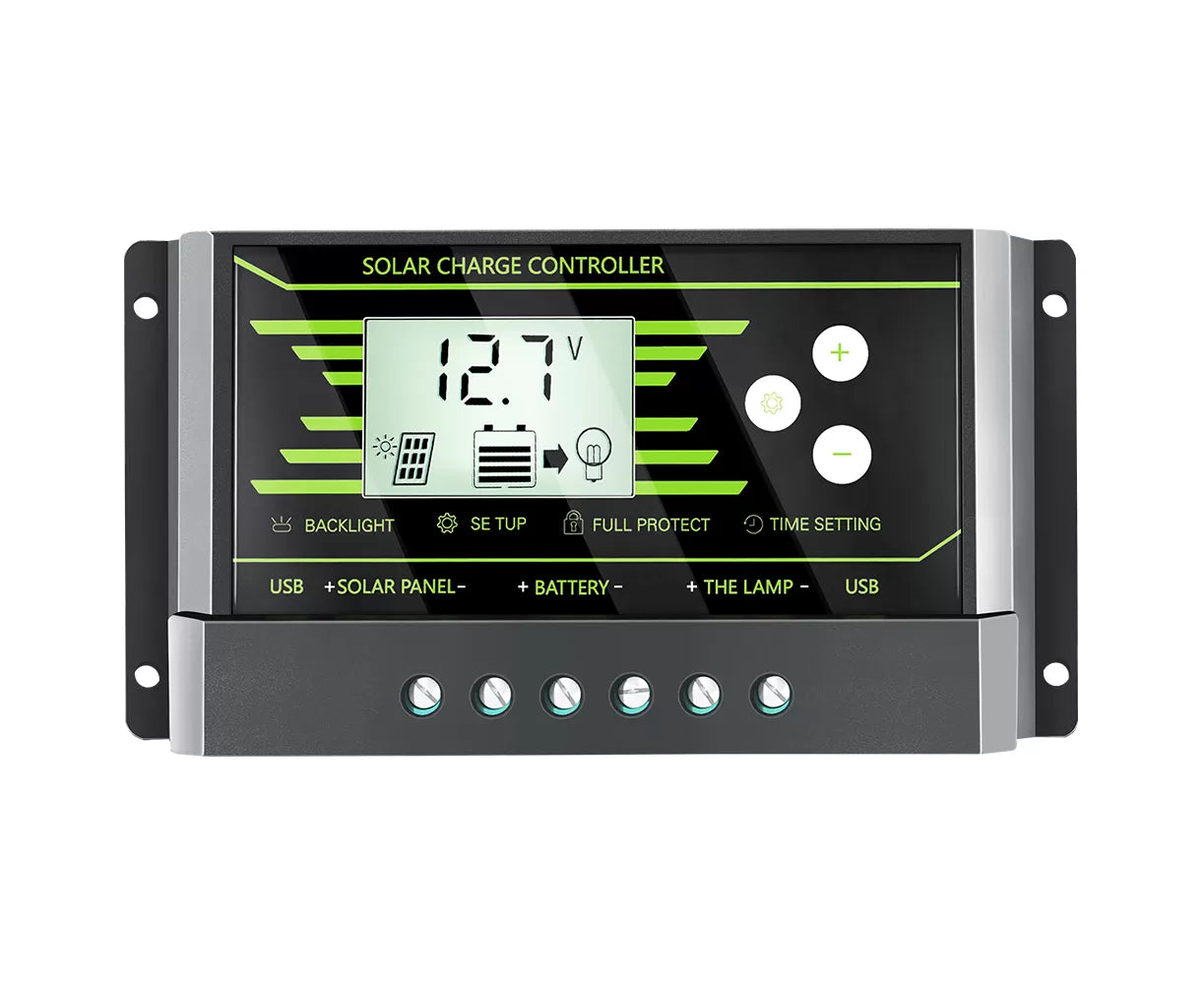

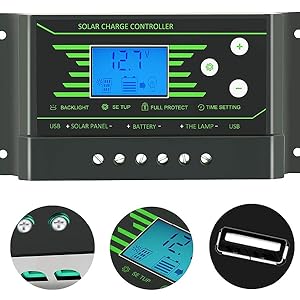

This solar charge controller features an LCD display showing real-time statistics, including voltage, current, temperature, and power. It also indicates charging status and provides alerts for overcharge and undervoltage protection.

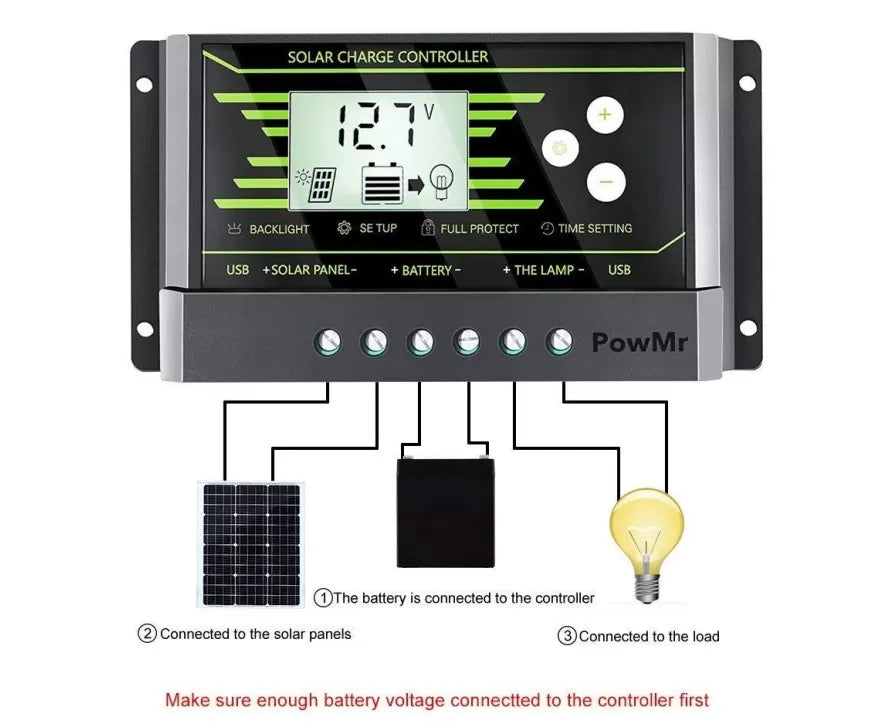

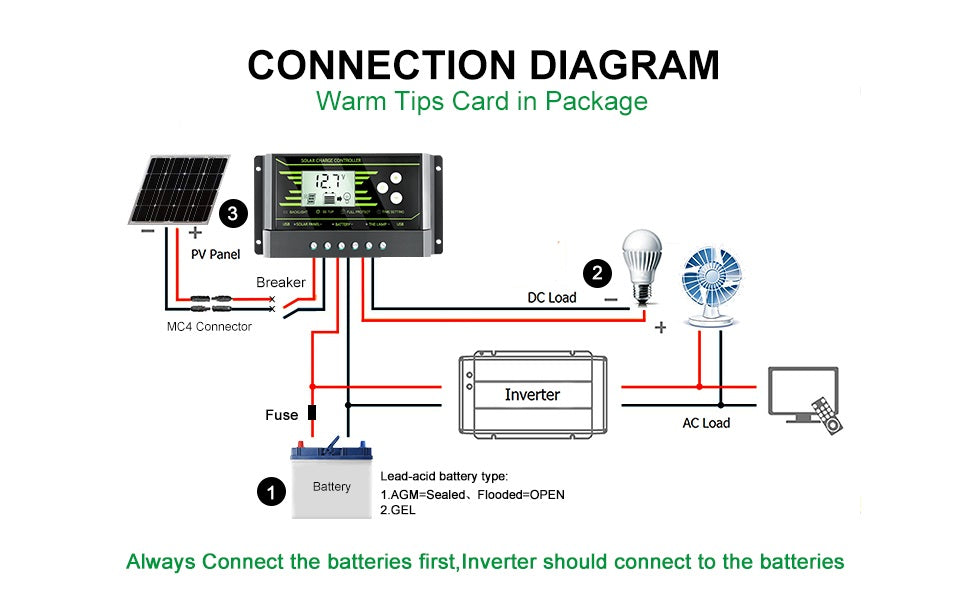

connection diagram

1.Connect order : 1. Battery --->2.Solar panels ---> 3.DC load.

2, Disconnect order : 1. DC load --->2. Solar panels ---> 3. Battery

3. The battery cable should be as short as possible to minimize loss.

4. When installation for the first time, set the battery type according to the type of battery and make sure that the battery has enough voltage so that the controller can recognize the correct battery type.

5. The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

6. the light control function is controlled by the solar panel, the use of light control

the function must access the solar panel, otherwise, the light had no effect

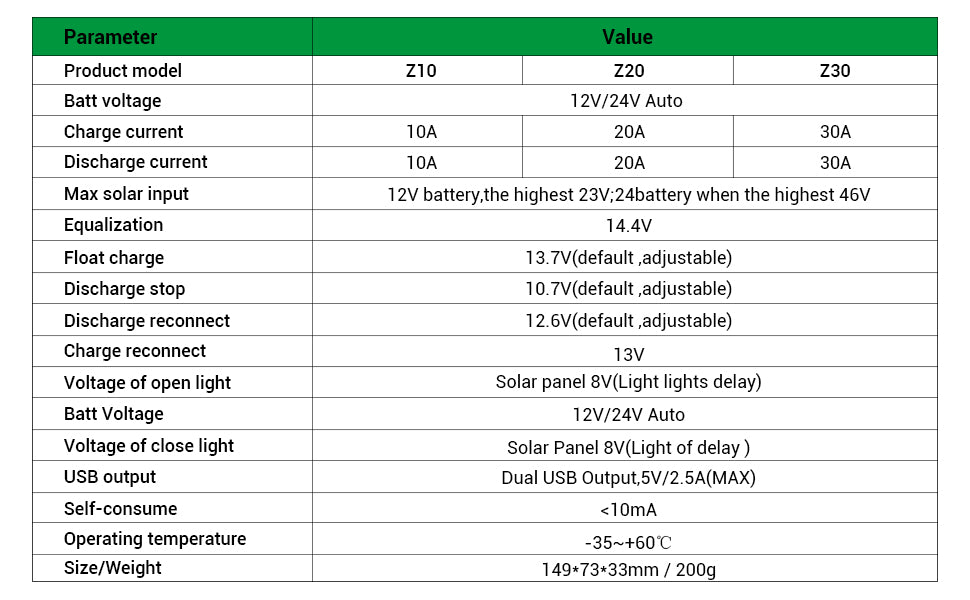

Specifications

Electronic protections:

• Over-load protection
• Build-in short-circuit protection
• Open-circuit protection
• Reverse protection
• Overheat protection

Z10 - PowMr 10A PWM Solar Charge Controller DataSheet

Please confirm the specification before install
